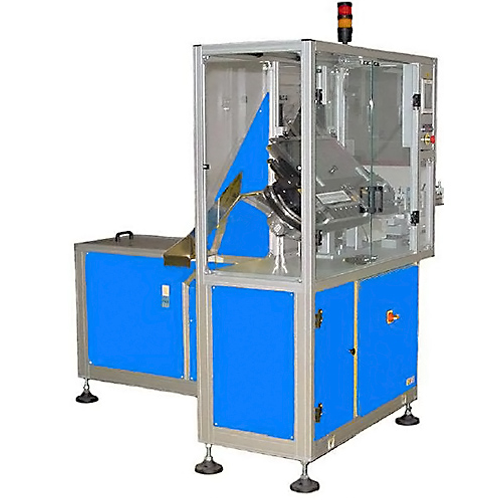

Pump feeding system for mascara production
Optimize your high-speed production line with a reliable pump feeding system that excels in sorting and feeding mascara components efficiently, minimizing downtime and maintenance.
Sorts and Feeds Mascara Pumps Efficiently
The ADMV PF60-120 by ADMV is a specialized pump feeding system designed for efficient sorting and feeding of industrial components, such as mascara pumps and fragrance diffusers. Its asynchronous drive unit ensures a smooth and consistent operation, handling throughput rates of up to 120 pumps per minute. This system is engineered with a built-in hopper and color-coded changeover features, reducing downtime and streamlining operations. Ideal for use in pharmaceutical, cosmetics, and chemical production environments, the ADMV PF60-120 integrates seamlessly into existing production lines, offering compact dimensions and optional electrical height adjustment for versatile placement. With a capacity of 80 dm³ and a robust design to handle products up to 225 mm in length, it enhances operational efficiency while maintaining a low maintenance profile.
Benefits
- Maximizes productivity with a high throughput of up to 120 pumps per minute.
- Reduces operational costs through low-maintenance design.
- Enhances production flexibility with easy, color-coded product changeovers.
- Conserves valuable floor space due to its compact footprint.
- Adapts to varying production needs with optional electrical height adjustment.
- Applications
- Mechanical tools,Fragrances,Cosmetics,Laboratories,Car batteries,Industrial goods,Other chemicals,Construction components
- End products
- Laboratory pipettes,Chemical spray nozzles,Construction sealant applicators,Cosmetic dispensers,Mascara pumps,Fragrance diffusers,Adhesive pumps,Battery caps,Mechanical tool lubricators
- Steps before
- Bulk Handling,Material Loading,Sorting
- Steps after
- Outfeed to Packaging,Inspection,Final Assembly,Quality Control
- Input ingredients
- bulk pumps,mascara pump
- Output ingredients
- sorted pumps,pumps on outfeed rail
- Market info
- ADMV, part of Coesia Group, is known for designing and manufacturing customized industrial automation solutions, particularly in the assembly and packaging sectors, offering advanced technological innovations tailored to meet specific client needs.
- Speed
- 60–120 ppm
- Footprint
- 1750 mm x 1100 mm x 1800 mm
- Weight
- 450 kg
- Diameter range
- 13 mm to 22 mm
- Max product length
- 180 mm
- Max pack diameter
- 22 mm
- Max speed
- 120 m/min
- Capacity
- 80 dm³
- Motion system
- Asynchronous drive
- Max air pressure
- 6 bar
- Power
- 1 kW
- Hopper type
- Embedded
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- Changeover time
- Easy changeover,color-coded
- Cleaning method
- Low maintenance
- Footprint
- Compact equipment
- Height adjustment
- Option for electrical height adjustment
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container type
- Pumps
- Compact footprint
- Yes
- Discharge method
- Outfeed rail sorting
- Height Adjustment
- Electrical
- Changeover
- Easy,color-coded
- Built-in Component
- Hopper
