Pulp and paper screw press separator

Achieve high-efficiency solids-liquid separation in pulp and paper processing with a horizontal screw press designed to handle diverse materials—from biogas plant side streams to livestock slurry—ensuring optimal material recovery and reduced waste management costs.

Separates Solids from Liquids in Various Slurries

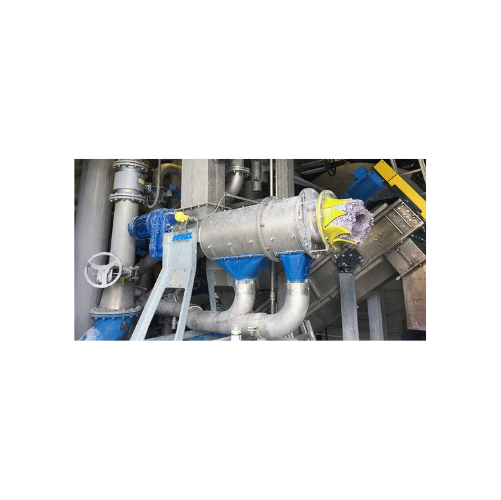

The SEPCOM Pulp and Paper Horizontal Screw Press Separator from WAMGROUP is engineered for efficient solids-liquid separation across various industries. Its unique design incorporates a stainless steel screw conveyor and a cylindrical screen basket, ensuring optimal separation of solids from liquids. The self-adjusting counter-pressure diaphragm facilitates automatic operation, preventing liquid flushing and maintaining consistent output.

Ideal for biogas plants, pulp and paper processing, and wastewater facilities, this machine is adept at handling high moisture content materials such as livestock manure and organic household waste, producing end products like recycled paper, organic fertilizers, and bioenergy feedstocks. With a processing capacity of up to 65 m³/h and a maximum dry solids output of 32%, it suits both continuous and semi-automatic operations.

The separator features a modular screw made from anti-wear SINT engineering polymer, promoting cost-effective maintenance and operation. Its durable, self-cleaning screen basket requires minimal upkeep, while various diaphragm and screen basket options allow customization to specific application needs. This versatile unit integrates seamlessly into existing production lines, significantly reducing waste management costs and improving operational efficiency.

Benefits

  • Reduces operational costs with automated solids-liquid separation.
  • Enhances production efficiency by maintaining consistent throughput.
  • Lowers maintenance time and costs due to a self-cleaning screen basket.
  • Supports a wide range of applications, maximizing versatility and usage.
  • Minimizes waste management expenses with effective material throughput.

General


Applications
Slurry from livestock breeding,Organic household waste,By-products processing,Digestate from livestock manure,Livestock manure,Digestate from agricultural crops,Digestate from agricultural and livestock by-products,Starch processing,Municipal waste water treatment,Pulp and paper processing,Industrial processes,Biogas plant materials
End products
Liquid fertilizers,Dried pulp,Organic fertilizers,Effluent for irrigation,Fiberboard materials,Bioenergy feedstocks,Recycled paper,Compost,Bio-methane,Sludge cake
Steps before
Sludge Collection,Sewage Gathering,Manure Gathering,Vegetable Waste Aggregation,Fruit Waste Aggregation
Steps after
Solid Handling,Liquid Handling,Disposal,Post-Separation Processing
Input ingredients
sludge,sewage,manure,vegetable processing waste,fruit processing waste,solids-liquid mixtures,biogas plant materials,industrial processes materials,slurry from livestock breeding
Output ingredients
separated solid phase,separated liquid phase,high dry solids content,liquid phase with < 5% dry matter
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Max hydraulic throughput
65 m3/h
Max dry matter for separated solid
32%
Dry matter for separated liquid
< 5%
Material of screw
SINT engineering polymer
Screw cleaning
Self-cleaning
Type of separation
Gravity and mechanical compression
Frame material
Stainless steel
Screw type
Modular
Drive unit
Electric motor with gear reducer
Output coupling
Splined output shaft
Solid-liquid separation
Automatic operation

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
CIP/SIP
CIP 121°C / SIP 135°C

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
Self-cleaning screen
Corrosive resistance (e.g. acids)
Stainless steel
Density/particle size
Varied - flexible

Physical Characteristics


Material of construction
Stainless steel
Screw type
Specialised stainless-steel screw
Screen basket material
Anti-wear SINT engineering polymer
Discharge method
Counter-pressure diaphragm outlet
Feed method
Compensator tank with overflow hopper
Casing material
Stainless steel
Operation mechanism
Screw conveyor technology

Custom Options


Material choice for screw
Stainless steel / SINT engineering polymer
Screen basket size
Custom sizes available
Diaphragm outlet type
Various types available
Screw design
Specialized design for screen cleaning
