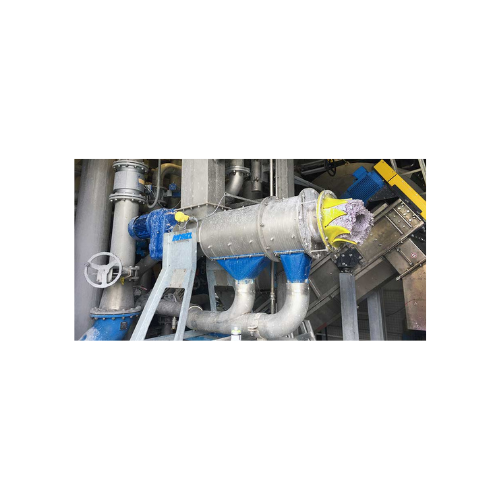

Pulp and paper horizontal screw press separator

Optimize your pulp recycling and manure treatment with high-efficiency solids-liquid separation, reducing waste and maximizing resource recovery through a uniquely engineered screw press design.

Separates Solids and Liquids in Industrial Processes

The SEPCOM Pulp and Paper Horizontal Screw Press Separator from WAMGROUP is engineered for industrial challenges in solid-liquid separation across various sectors, including pulp and paper and wastewater treatment. Utilizing a screw conveyor mechanism, it efficiently separates solids from liquids through mechanical compression and gravity, making it ideal for processing recycled paper pulp, clean wastewater, and nutrient-rich digestate. The separator is equipped with a high-performance, wear-resistant screen basket and can handle materials with a maximum hydraulic throughput of 65 m³/h. Its modular screw, crafted from durable SINT engineering polymer, ensures cost-effective maintenance and simple operation. Designed for continuous automatic operation, the machine’s stainless steel construction offers robust corrosion resistance, essential for challenging processing environments. Options for various diaphragm outlets and screen basket sizes provide the flexibility to meet specific industrial requirements.

Benefits

  • Significantly reduces management costs by optimizing solid-liquid separation processes.
  • Minimizes labor and maintenance time with automated, continuous operation.
  • Enhances durability with wear-resistant stainless steel and SINT polymer components.
  • Adapts to varied processing needs with customizable outlet and screen options.
  • Supports sustainable practices by transforming waste into reusable resources.

General


Applications
Manure treatment,Sludge treatment,Livestock waste,Pulp and paper,Vegetable and fruit processing waste,Industrial wastewater treatment,Biogas digestate processing
End products
Dehydrated vegetable and fruit waste,Processed livestock bedding,Dewatered sludge,Recycled paper pulp,Fertilizer from treated manure,Clean wastewater,Nutrient-rich digestate
Steps before
Material Collection,Sludge Generation,Slurry Preparation,Biogas Plant Operation,Waste Accumulation
Steps after
Solid Waste Disposal,Liquid Treatment,Digestate Management,Wastewater Processing,Composting
Input ingredients
sludge,sewage,manure,vegetable processing waste,fruit processing waste,solids-liquid mixtures,pulp,paper recycling materials
Output ingredients
separated solid phase,separated liquid phase,digestate solid,digestate liquid
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Automation
Automatic operation
Max Hydraulic Throughput
65 m3/h
Max Dry Matter for Separated Solid
32%
Dry Matter for Separated Liquid
< 5%
Screen Basket Material
Stainless Steel
Modular Screw Material
Anti-wear SINT Polymer
Drive Unit
Electric motor with gear reducer
Separation Method
Gravity and Mechanical Compression

Operating Characteristics


Working Mechanism
Screw conveyor technology with gravity and mechanical compression
Automation Level
Automatic operation
Changeover Time
Significantly reduced assembly and maintenance time
Continuous Duty
Yes
Batch vs. Continuous Operation
Continuous
Cleaning Method
Self-cleaning
Energy Efficiency
High performance wear-resistant screen basket

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Cylindrical screen basket
Stainless steel
Feed/discharge method
Compensator tank and overflow hopper
Core structure
Screw conveyor
Self-cleaning mechanism
High performance wear-resistant screen basket

Custom Options


Screw Types
Various SINT engineering polymer screws
Diaphragm Outlet
Various types
Screen Basket Sizes
Various sizes
