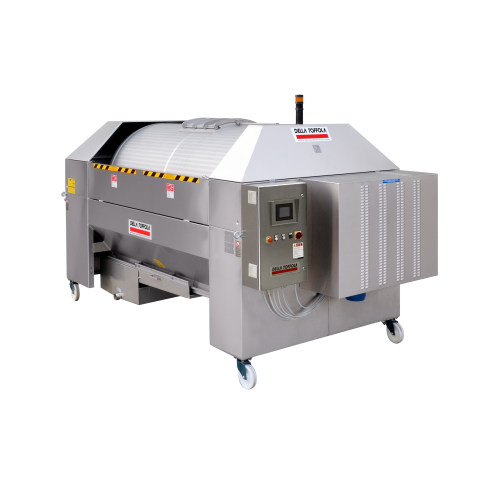

Pneumatic presses for wine production with open tanks

Optimize your wine production with presses designed to maximize straining efficiency, reduce pressing time by up to 50%, and ensure gentle handling of grape masses, enhancing product quality and operational flow.

Reduces Pressing Time and Enhances Wine Quality

The Della Toffola Pneumatic Open Tank Wine Presses offer winemakers a cutting-edge solution for efficient and high-quality wine production. These presses utilize a tubular central membrane and perforated drum, maximizing the straining surface area to reduce pressing time by up to 50%, while maintaining gentle grape mass handling. Ideal for producing red, white, rosé, sparkling wines, and grape juice, their continuous operation is facilitated by a programmable digital control panel. Available in capacities ranging from 12 to 480 hl, these presses can also integrate into a centralized computer-controlled system for streamlined wine processing. The equipment’s open design ensures minimal pressing cycles, even at low working pressures, contributing to energy efficiency and superior output quality.

Benefits

  • Cuts pressing time by up to 50%, enhancing production efficiency.
  • Ensures high-quality output with gentle grape handling.
  • Supports continuous operation, minimizing downtime in production lines.
  • Reduces energy consumption with low-pressure pressing.
  • Easily integrates into centralized systems for streamlined operations.

General


Applications
Winemaking,Beverages,Wine
End products
Rosé wine,Red wine,Grape juice,White wine,Sparkling wine
Steps before
Harvesting,Destemming,Crushing
Steps after
Fermentation,Clarification,Aging,Bottling
Input ingredients
grape mass,grapes
Output ingredients
wine,pressed juice,must
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Capacity
12 up to 480 hl
Pressing time reduction
Up to 50%
Automation
Programmable automatic control system
Drum type
Perforated surface
Central membrane
Tubular central membrane
Process type
Continuous cycle
Pressing action
Soft,gentle pressing
Pressure levels
Low working pressures
Control panel
Digital control panel
Computer integration
Programmable onboard computer
System integration
Centralized computer-controlled system option

Operating Characteristics


Working mechanism
Pneumatic pressing
Automation level
Programmable automatic control system
Pressing efficiency
Reduces total pressing time by up to 50%
Operating pressure
Low pressure operation
Cycle operation
Practically continuous cycle
Changeover time
Minimal interruptions
Cleaning method
Not specified

Material Compatibility


Abrasion resistance
High
Biological compatibility
Suitable for wine
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Resistant to grape acids

Physical Characteristics


Tank Design
Open structural design
Straining Surface Area
All-around perforated drum
Control System
Programmable automatic control system with digital control panel
Control Panel Type
Digital Control Panel with Programmable Computer
Capacity Range
12 to 480 hl
Pressing Action
Tubular central membrane

Custom Options


Control Panel Type
Digital control panel
Integration Possibilities
Centralized computer-controlled system
