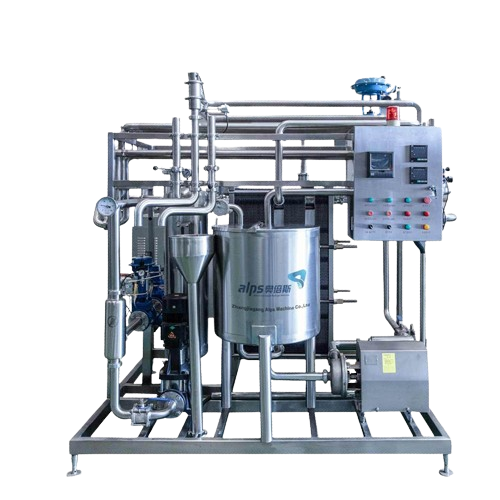

Plate type pasteurizer for juice and tea drinks

Ensure optimal heating, sterilization, and cooling for juice and tea production with this versatile plate type pasteurizer, tailored to handle delicate and heat-sensitive liquids efficiently.

Processes and Sterilizes Beverages with Precision

The Plate Type Pasteurizing Sterilizer by Alps Machinery is a versatile solution for the beverage, dairy, and alcoholic beverage industries. It utilizes an efficient heat exchange system that ensures precise heating, sterilization, and cooling of delicate liquids like milk, juices, and tea drinks. This equipment accommodates capacities ranging from 0.5 to 50 tons per hour, making it suitable for a variety of production scales. It is equipped with semi-automatic and fully automatic operations, including PLC control with a user-friendly touch screen interface. The system’s design contributes to substantial energy savings and low consumption, maintaining sterility at temperatures between 85°C and 95°C. Constructed with high-quality materials, it offers reliable corrosion resistance and ease of maintenance, supported by a comprehensive CIP system. Whether you’re looking to produce whole milk, iced teas, or flavored beverages, this sterilizer seamlessly integrates into your existing production line, delivering consistent quality and efficiency.

Benefits

  • Enhances production efficiency by handling up to 50 tons per hour.
  • Minimizes energy usage with efficient heat recovery systems.
  • Maintains product integrity with precise temperature control.
  • Simplifies operations with user-friendly PLC and touch screen controls.
  • Ensures high sanitation standards with integrated CIP system.

General


Applications
Fruit beverage,Tea drinks,Juice,Alcohol,Fresh milk
End products
Lemonade,Iced green tea,Skimmed milk,Iced black tea,Wine,Apple juice,Sparkling water with fruit flavor,Orange juice,Grape juice,Cider,Beer,Whole milk
Steps before
Heating,Heat Preservation,Cooling
Steps after
Sterilization,Heat Recovery,Energy Saving
Input ingredients
fresh milk,fruit beverage,alcohol,heat sensitive liquids
Output ingredients
pasteurized milk,sterilized juice,sterilized tea drinks,treated alcohol
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
0.5–50 t/h
Sterilizer temperature
85–95°C
Temperature of material inlet
5°C
Temperature of material outlet
5°C
Heat preservation period
15–30s
Ice water temperature
1°C
Ice water consumption
3t
Cooling water consumption
2t
Connection size
32mm to 51mm
Energy consumption
3kw to 10kw
Automation
Semi automatic / Full automatic (PLC control)
Output capacity
1t/h,2t/h,5t/h,10t/h
Heat exchanging area
8m² to 52m²
Outlien dimensions
1.5x1.5x1.8m to 2.6x2x2.3m

Operating Characteristics


Working mechanism
Plate type heat exchange
Integrated steps
Heating,sterilization,heat preservation,cooling
Operation control
Semi-automatic / Full-automatic (PLC control)
Batch vs. continuous operation
Continuous operation
CIP/SIP
CIP compatibility
Heat recovery
High heat recovery
Energy efficiency
Energy saving,low consumption

Material Compatibility


Corrosive resistance
Yes
Cleanability
Easy to clean
Density/particle size
Suitable for various densities

Product type Characteristics


Suitable for
Fresh Milk,Fruit Beverage,Alcohol

Physical Characteristics


Compact structure
Yes
Machine footprint
1.5x1.5x1.8m to 2.6x2x2.3m
Connection size
32mm,38mm,51mm
Control panel type
Semi automatic / Full automatic (PLC control)
Cooling system
Ice water consumption

Custom Options


Control methods
Semi automatic / Full automatic (PLC control,touch screen display)
Integration possibilities
Material pump,balancing tank,hot water system,temperature controller and recorder,electrical control system
Heat exchanger area
8m²,13m²,28m²,52m²
