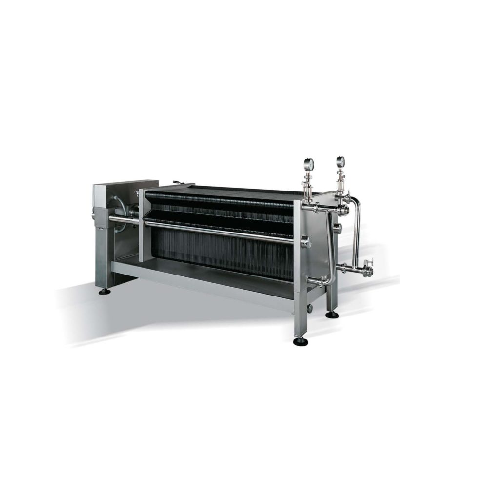

Plate and sheet filter for wine and vinegar

Optimize the filtration of liquids like wine and vinegar with this versatile system, enhancing clarity and purity in your batch operations.

Filters and Sterilizes Liquids for Clarity and Purity

The MasterPlate from TMCI Padovan is a versatile plate and sheet filter designed specifically for the food and beverage industry. Engineered for applications in winemaking, vinegar production, and distillation, it ensures exceptional clarity and sanitation through its steam-sterilizable components. The unit features a stainless steel framework and plates, and models 40 and 60 offer an option for plastic plates for added flexibility. Operations can be manual or upgraded to hydraulic systems, with batch processing suited for various capacities. The MasterPlate seamlessly integrates into production lines, offering batch filtration for end-products such as Barolo wine, balsamic vinegar, and grappa. Its compact design enables easy mobility on wheels for smaller models, and a fixed base for larger units, optimizing your plant’s space. Maintenance is straightforward with CIP capabilities, and the system’s robust construction offers enhanced durability in processing environments.

Benefits

  • Achieves high liquid clarity and purity with efficient filtration and sterilization.
  • Enhances operational flexibility with manual and hydraulic batch options.
  • Facilitates easy maintenance and cleaning with CIP systems.
  • Optimizes space utilization with mobile and fixed-base models.
  • Durable stainless steel construction ensures long service life in demanding environments.

General


Applications
Vinegar,Wine,Oil,Grape juice,Distillates
End products
Extra virgin olive oil,Barolo wine,Concord grape juice,Balsamic vinegar,Grappa
Steps before
Purification,Grinding
Steps after
Sterilization,Packing
Input ingredients
wine,vinegar,grape juice,oil,distillates
Output ingredients
filtered wine,filtered vinegar,filtered grape juice,filtered oil,filtered distillates
Market info
Padovan (Omnia Technologies) is known for engineering advanced industrial filtration and process equipment, particularly in the beverage, chemical, and food industries, with a reputation for innovation, quality, and tailored solutions in engineered-to-order equipment.

Technical Specifications


Framework Material
Steel,Coated Stainless Steel
Mobility
Wheels for Model 40,Fixed Base for Models 60-80-100
Material of Plates
Stainless Steel,Optionally Plastic for Models 40 and 60
Sterilization Capability
Steam Sterilizable and Sanitary
Closing System
Manual Screw-down,Optional Manual Hydraulic for Models 40 and 60
Hydraulic Closing System
Available in Models 60-80-100

Operating Characteristics


Mobility
On wheels (Model 40),Fixed base (Models 60,80,100)
Closing System
Manual screw-down,Optional hydraulic for Models 40 and 60,Hydraulic for Models 60-80-100
Filtration Process
Batch Fill
Sterilization Compatibility
Steam sterilizable
Sanitary Standards
Sanitary design
Material Construction
Stainless Steel Framework

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Abrasion resistance
Yes
Cleanability
Yes
Biological compatibility
Yes

Physical Characteristics


Framework Material
Steel,Coated Stainless Steel
Mobility
Wheels (Model 40),Fixed Base (Models 60,80,100)
Plate Material
Stainless Steel,Optional Plastic (Models 40,60)
Size Variants
Models 40,60,80,100
Control System
Manual Screw-Down,Optional Manual Hydraulic (Models 40,60),Hydraulic Unit (Models 60-80-100)
Drip-Collecting Tray
Stainless Steel

Custom Options


Frame Type
Steel,Coated Stainless Steel
Mobility
Wheels (Model 40),Fixed Base (Models 60-80-100)
Closing System
Manual Screw-Down / Hydraulic (Optional for Models 40-60,Standard for Models 60-80-100)
Plate Material
Stainless Steel,Plastic (Optional for Models 40 and 60)
