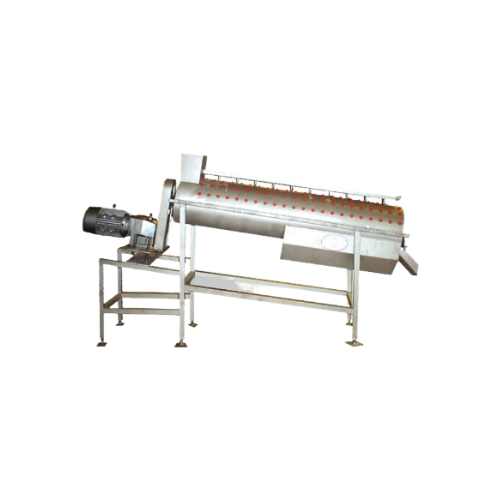

Paw picker scalder for poultry processing

Optimize your poultry processing with this scalder, engineered for effective ammonia burn removal and paw-pad cleaning, ensuring high yield and quality in your paw products.

Cleans and Scalds Poultry Feet Efficiently

The Prime PPS Series Paw Picker Scalder by Prime Equipment Group offers a comprehensive solution for poultry processors focused on optimizing paw processing operations. This system uniquely addresses the challenge of efficiently scalding and cleaning poultry feet, enhancing product quality by removing ammonia burns while preserving paw integrity. Operated in conjunction with Prime’s In-Line Paw Scrubber, the scalding process achieves superior cleaning and conservation of resources, utilizing lower-temperature water that maintains fat content, resulting in increased final product weight. With a throughput of up to 375 paws per minute, the PPS Series supports continuous high-speed operations. Equipped with an air-assisted top cover lift, the design facilitates easy maintenance. Featuring a robust construction with a 10 to 15 hp motor, depending on model size (6, 8, or 10-foot options), and operating on 230/460V, 3 phase, 60 Hz power, this equipment is engineered for integration into existing processing lines, reducing hot water usage and operational costs while maximizing paw yield and efficiency.

Benefits

  • Enhances product yield by maintaining fat content through lower-temperature water usage.
  • Minimizes operational costs with reduced hot water consumption in the scalding process.
  • Supports high-speed production with a processing rate of up to 375 paws per minute.
  • Eases maintenance with an air-assisted top cover lift, reducing downtime.
  • Integrates seamlessly into existing lines for continuous, efficient poultry paw processing.

General


Applications
Seafood,Meat,Poultry
End products
Processed chicken paws,Ammonia-treated chicken feet,Paw-ready poultry products,Cleaned turkey feet,Chicken feet
Steps before
Defeathering,Evisceration
Steps after
In-Line Paw Scrubbing,Portioning,Slicing,Coating,Freezing,Chilling,Proofing
Input ingredients
poultry paws,ammonia burns
Output ingredients
cleaned paws,upgraded paws,preserved fat content,maximum paw yield
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Motor Power
10 hp (PPS-6)
15 hp (PPS-8/10)
Voltage
230/460V,3 ph,60 Hz
Water Connection
3/4 inch
Net Weight
1750 lbs. (794 kg)
Production Rate
Up to 375 paws per minute
Size Options
6,8,10-foot

Operating Characteristics


Working mechanism
Hot water scalding
Integrated steps
Works with In-Line Paw Scrubber
Flow type
Inline Continuous
Automation level
PLC-based control
Energy efficiency
Lower hot water usage
Changeover time
Quick with air-assisted cover lift
Water temperature control
Lower-temperature water usage
Production rate
Up to 375 paws per minute

Physical Characteristics


Machine Footprint
Available in 6,8,and 10-foot options
Net Weight
1750 lbs (794 kg)
Discharge method
Paw discharge
Feed/Discharge Method
Paw processing system integration

Custom Options


Control panel type
PLC-controlled
Integration possibilities
With Prime In-Line Paw Scrubber
Size options
6,8,and 10 feet
Automation level
Manual / PLC
