Pasteurizing units for fruit and vegetable juices

Ensure your juices and purees remain fresh and safe by effectively pasteurizing them, with precise temperature control and flexible operation tailored for seamless integration into your production line.

Pasteurizes Fruit and Vegetable Juices

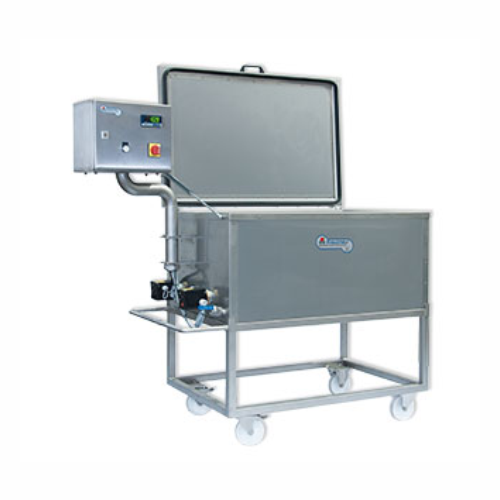

The Tank Pasteurizer WP100/WP200 from Kreuzmayr Maschinenbau GmbH is an engineered solution designed to efficiently pasteurize a range of beverage products including fruit juices, vegetable juices, and purees. Utilizing automatic precise temperature control, this equipment ensures the gentle heating of juices to safely reduce microbial content while preserving flavor and nutritional quality. With a nominal hourly output of 100 to 200 bottles per hour, it is suitable for small to mid-sized juice production runs.

The pasteurizer integrates smoothly into your production line, featuring a fully automatic process based on adjustable temperature and heat holding time. It is ideal for both batch and continuous operations, maintaining flexibility across diverse production demands. The equipment uses nine to eighteen kW of heating power and requires a 400 V electrical connection.

Kreuzmayr’s tank pasteurizer is built for longevity and ease of maintenance, featuring robust construction and easy-to-use digital temperature displays. It meets rigorous industry standards, ensuring compliance with safety and quality regulations. Customization options and engineering support are available to tailor the equipment to your specific processing needs.

Benefits

  • Enhances product shelf life and safety through precise temperature regulation.
  • Increases operational efficiency with fully automated pasteurization processes.
  • Provides flexibility for diverse production scales with adjustable throughput.
  • Minimizes energy usage with optimized heating power settings.
  • Ensures easy integration into existing lines, reducing transition downtime.

General


Applications
Liquid formulations,Citrus juices,Vegetable juices,Purees,Fruit juices
End products
Smoothies,Cold-pressed juices,Custom juice blends,Apple juice,Lemon juice,Tomato puree,Orange juice,Carrot juice,Fruit concentrates,Vegetable blends
Steps before
Fruit intake,Washing,Grinding,Destoning
Steps after
Bottling,Filling,Packing
Input ingredients
fruits,vegetables,cold-filled closed bottles,cold juice
Output ingredients
pasteurized fruit juice,pasteurized vegetable juice,pasteurized bottles,pasteurized glasses
Market info
Kreuzmayr is known for manufacturing high-quality, industrial juicing and pressing equipment. They specialize in engineered-to-order solutions, offering expertise in processing fruits and vegetables, with a reputation for reliability and innovation in the food and beverage industry.

Technical Specifications


Nominal hourly output
100 [1L bottles/h]
Nominal hourly output
200 [1L bottles/h]
Heating power
9 kW
Electrical connection
400/16/9.0 V/Amp/kW
Filling content
50 [1L bottles]
Nominal hourly output
360 [1L bottles/h]
Heating power
1.5 kW
Electrical connection
400/16/50 V/A/Hz
Nominal hourly output
480 [1L bottles/h]
Heating power
4.0 kW
Compressed air connection
6 bar
Nominal hourly output
960 [1L bottles/h]
Heating power
5.5 kW
Nominal hourly output
1920 [1L bottles/h]
Heating power
11 kW
Normaly hour output
250 to 2000 Liter/h
Normaly hour output
210 to 420 Liter/h
Temperature regulation
up to 95°C
Automation
Automatic temperature control

Operating Characteristics


Working Mechanism
Pipe-in-pipe Heat Exchanger
Heating Method
Electric / Steam / Gas or Oil-fired
Automation Level
Fully Automatic with Digital Display
Temperature Regulation
Automatic
Pasteurization Temperature Range
60° - 100°C
Output Capacity
210 to 1920 1L Bottles/h
Flexibility
Adjustable Temperature and Holding Time
Cooling Method
By Steam-Hotwater - Heat Exchanger
Batch vs. Continuous Operation
Batch
Bottling Compatibility
Bottles and Glasses
Juice Pump Type
Impeller Juice Pump
Circulation System
High-Performance Radial Fan

Material Compatibility


Biological compatibility
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Container size and shape
1L Bottles/Glass
Juice type
Fruit/Vegetable

Physical Characteristics


Tank shape
Rectangular/Insulated Chamber
Feed method
Cold-filled closed bottles or glasses
Discharge method
Bottle trolley / Euro pallets

Custom Options


Control panel type
Digital display
Operation
Automatic temperature regulation
System mobility
Mobile pre-installed system
Heat exchanger type
Pipe-in-pipe heat exchanger
Temperature regulation
Adjustable up to 95°C
Pasteurization process types
Short-term heating / Steam-heated
