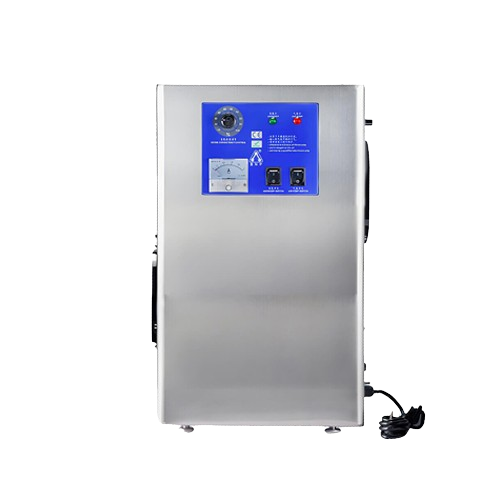

Ozone generator for water sterilization

Ensure the purity and safety of your water products with an ozone generator that efficiently sterilizes and purifies, supporting high-production environments in beverage or water treatment facilities.

Sterilizes and Purifies Water for Bottling

The Ozone Generator / Sterilizer from Alps Machinery is engineered to enhance the quality and safety of your water treatment processes. It integrates seamlessly into existing production lines, utilizing pressure swing adsorption (PSA) to achieve high-purity oxygen feed essential for optimal ozone production. Designed for demanding environments, it provides stable ozone delivery for sterilizing and purifying drinking, pure, and mineral water. With a capacity ranging from 15 to 150 grams and an adjustable timing mechanism for automation, it supports both automatic and manual operations, ensuring flexibility for water treatment and beverage production facilities. The robust construction, featuring micro-gap discharge ozone tubes and high-frequency power supply, ensures durability and reliability in various industrial settings. Additionally, its water cooling system enhances energy efficiency, while the machine’s configuration supports enhanced operational safety and compliance with water treatment standards.

Benefits

  • Enhances water purity, ensuring compliance with stringent health standards.
  • Reduces operational costs with efficient ozone production and energy-saving water cooling.
  • Offers flexible operation modes, minimizing manual intervention and labor expenses.
  • Maintains long-term reliability in high-humidity conditions, reducing maintenance downtime.
  • Supports diverse applications in water and beverage production, increasing versatility across industries.

General


Applications
Mineral water,Pure water,Drinking water
End products
Bottled drinking water,Mineral water bottles,Potable water containers,Water dispensers,Purified bottled water
Steps before
Water Filtration,Oxygen Concentration,Air Preparation
Steps after
Water Storage,Bottling,Labeling,Distribution
Input ingredients
oxygen,air,drinking water,pure water,mineral water
Output ingredients
ozone,sterilized water
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Ozone production
50 g/h
Ozone concentration
100-120 mg/L
Power consumption
1100 W
Input power
AC230V/50HZ
Working voltage
3-7 KV
Power frequency
>3000
Intake flow
7 L/min
Intake pressure
≤0.2 MPa
Intake temperature
≤20°C
Cooling method
Water cooling
Ozone outlet
10mm quick twist
Timing method
0-90 minutes mechanical countdown

Operating Characteristics


Automation level
Manual / Automatic
Temperature Range
Ambient temperature < 40°C
Humidity Tolerance
RH ≤ 85%
Cooling Method
Water cooling
Use Air Source
Oxygen source
Timing Method
0-90 minutes mechanical countdown
Unmanned Operation Capability
16 groups of timing switch settings

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Yes
Cleanability
High

Product type Characteristics


Container type
Bottles / Gallons

Physical Characteristics


Machine Footprint
55x40x100 cm
Ozone Outlet
10mm quick twist
Cooling Method
Water Cooling
Control Panel Type
Manual/Automatic
Intake Flow
7L/min
Intake Pressure
≤0.2 MPa
Intake Temperature
≤20°C
Ambient Temperature
<40°C

Custom Options


Capacity Range
15gram to 150gram
Cooling method
Water cooling
Timing method
0-90 minutes mechanical countdown
