Online moisture control for lyophilized pharmaceutical products

Ensure precise moisture control in lyophilized products with real-time, non-destructive analysis, optimizing product quality and stability without halting production.

Measures Residual Moisture in Lyophilized Products

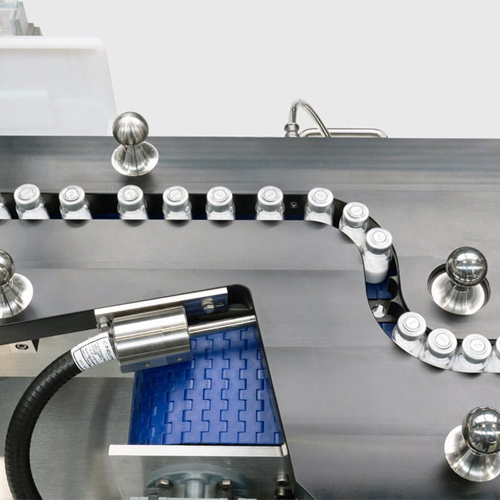

The LYOSENSE® system from GEA offers precise real-time moisture measurement for lyophilized products using multipoint NIR technology. Designed for pharmaceuticals and biotech, it accurately evaluates residual moisture in products like vaccines and therapeutic proteins. Easily integrates into processing lines with its simple, non-invasive operation. The mobile LYOSENSE® STATION extends versatility, facilitating moisture assessment in glass vials with its robust and maneuverable design. Capable of inspecting up to 100 vials per minute, it ensures compliance with industry standards by automating the rejection of out-of-specification units. Configurable for specific vial sizes, it supports Quality by Design initiatives, packaged with full documentation and compliance verification under European CE guidelines.

Benefits

  • Ensures precise product quality by providing non-destructive, real-time moisture measurement.
  • Increases operational efficiency with rapid analysis at speeds of up to 100 vials per minute.
  • Enhances product integrity by automatically rejecting out-of-specification vials.
  • Facilitates mobility within production areas with a compact, maneuverable design.
  • Supports regulatory compliance with comprehensive testing and documentation.

General


Applications
Lyophilized products,Vaccines,Freeze-dried product cakes,Pharmaceuticals
End products
Biologics,Monoclonal antibodies,Biopharmaceuticals,Lyophilized therapeutic proteins,Freeze-dried plasma,Pharmaceuticals like antibiotics,Diagnostic reagents
Steps before
Lyophilization,Freeze Drying,Pharmaceutical Vial Loading
Steps after
Residual Moisture Inspection,Vial Packing,Quality Control
Input ingredients
pharmaceutical glass vials,lyophilized products,freeze-dried product cakes
Output ingredients
residual moisture content measurements,quality assurance data,real-time evaluation results
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Moisture Content Accuracy
0.2–5.0% water content
Measurement Speed
5 ms
Vial Inspection Speed
Up to 100 per minute
Vial Diameter Range
16.25–33.00 mm
Automation
PLC-controlled
Sensor Type
Multipoint NIR
Operation
Single person operation
Calibration
Simple and easy
Installation Type
Online measuring device
Probe Size
Miniaturized

Operating Characteristics


Automation Level
Automated NIR Analysis
Process Integration
Non-invasive Measurements
Data Handling
Connected to External Computer
Mobility
Mounted on Wheels
Speed Control
Integrated Touchscreen
Measurement Speed
5 ms
Calibratability
Easy Calibration
Vial Inspection
100% Inspection Rate
Residual Moisture Range
0.2–5.0% Water Content
Rejection System
Out-of-spec Vials are Rejected
User Interface
Simple and Easy
Vial Size Compatibility
16.25–33.00 mm


CE marking
Yes

Physical Characteristics


Machine footprint
900 mm width
Handling
Mounted on wheels
Vial size compatibility
16.25–33.00 mm

Custom Options


Control panel type
Integrated touchscreen
Integration possibilities
Computer interface
Mobility
Mounted on wheels
Single person operation
Yes
