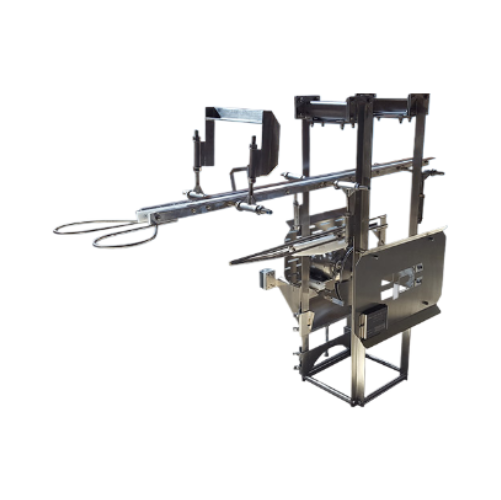

On-line leg quartering unit for poultry processing

Effortlessly enhance your poultry processing line by precisely and continuously quartering birds, transforming whole back halves into leg quarters and split backs with minimal manual labor. Ideal for achieving greater yield consistency and safety.

Quarters Poultry Legs on Processing Lines

The Prime OLQ-1 On-Line Leg Quartering Unit from Prime Equipment Group excels in automating the quartering of poultry legs, significantly reducing manual labor while enhancing safety and consistency. This unit operates seamlessly within a processing line, integrating with upstream equipment like the HM-Series Halver and BSC-1 Back Skin Cutter for a comprehensive cut-up solution. It employs pivoting shackles to automatically position back halves for precision quartering, producing uniform chicken leg quarters and split chicken backs. Capable of adapting to varying line speeds, it meets the demands of high-speed, continuous operations. With motors designed for efficiency, it operates on 480V, 3-phase power, drawing 15 amps. Made to endure rigorous conditions, the OLQ-1 supports poultry processors, meat-processing facilities, and food-processing companies aiming to optimize throughput and yield with minimal manual intervention.

Benefits

  • Enhances production efficiency by automating leg quartering, reducing reliance on manual labor.
  • Increases yield and product consistency with precision automated cuts.
  • Improves operator safety by eliminating the need for hand cutting.
  • Integrates seamlessly into existing processing lines, optimizing workflow.
  • Adapts to varying line speeds for flexible production rates.

General


Applications
Seafood,Meat,Poultry
End products
Chicken leg quarters,Turkey leg quarters,Split chicken backs
Steps before
Chicken Halving,Back Skin Cutting
Steps after
Additional Processing,Pack-out
Input ingredients
back halves,birds in shackles
Output ingredients
leg quarters,split back halves
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Electrical Requirements
(1) 2 hp,(1) 1 hp motor
480V,3 ph,60 Hz,15 amps
Net Weight
Approximately 800 lbs (362 kg)
Production Rate
Variable with line speed

Operating Characteristics


Working mechanism
Automatic splitting of back halves into quarters
Integrated steps
Integration with HM-Series halver and BSC-1 Back Skin Cutter
Automation level
Automated in-line operation
Batch vs. continuous operation
Inline Continuous
Changeover time
Minimal due to automatic operation
CIP/SIP
Not specified
Cleaning method
Manual
Energy efficiency
Variable with line speed

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g.,acids)
High

Product type Characteristics


Poultry Type
Leg Quarters
Integration
HM-Series Halver,BSC-1 Back Skin Cutter


CE marking
Yes

Physical Characteristics


Machine footprint
Not specified

Custom Options


Control panel type
Touchscreen/PLC
Integration possibilities
Compatible with Prime HM-Series halver and BSC-1 Back Skin Cutter
Automation level
Fully Automated Inline System
