Natural fiber preparation for packaging

Achieve efficient packaging solutions by preparing natural fibers into high-quality, eco-friendly molded products. Whether it’s egg cartons or electronic device packaging, this system ensures consistent and rapid processing, integrating seamlessly into your production line for non-stop operations.

Processes Natural Fibers for Packaging Solutions

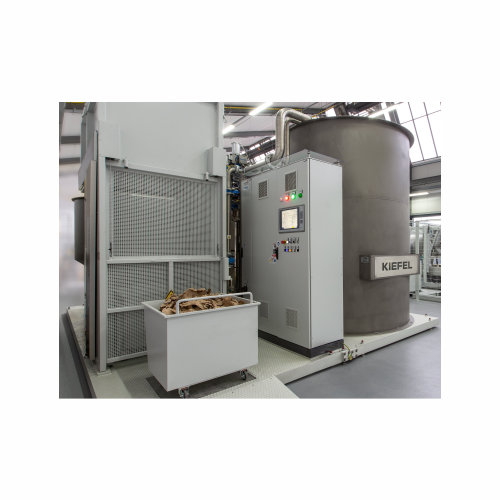

The NATUREPREP KFP from Kiefel is a comprehensive fiber preparation system, designed to process natural fibers into high-quality packaging solutions. This system utilizes a series of procedures, including pulping, deflaking, refining, pressure screening, and additive mixing, to efficiently transform inputs into ready-to-form pulp. With batch and continuous operational modes, it caters to varying production scales — from small batch operations to large-scale continuous outputs. Capable of processing up to 250 kg of virgin or recycled fiber per hour, the NATUREPREP KFP supports industries ranging from agriculture to high-tech sectors, producing robust end products like egg cartons, fruit trays, and electronic device packaging. Its modular design allows for easy integration into existing production lines and swift reconfiguration to meet changing market demands. Designed with energy efficiency in mind, it ensures minimal waste and optimal resource use. The system’s robust steel construction ensures durability and resistance to corrosion, aligning with industry standards for safety and operational efficiency.

Benefits

  • Increases production efficiency with continuous fiber processing capabilities.
  • Adapts to market changes quickly due to its compact and modular design.
  • Minimizes material waste through optimized fiber preparation processes.
  • Reduces installation and relocation time with easy assembly and configuration.
  • Supports sustainable production with the ability to process recycled materials.

General


Applications
Nursery demands, Fiber molded parts, Food sector, Agriculture, Logistics, High-tech sector
End products
Egg cartons, Seedling trays, Protective packaging for electronics, Electronic device packaging, Plant pots, Fruit trays
Steps before
Fiber Collection, Pulping, Fiber Preparation
Steps after
Fiber Thermoforming, Packaging, Logistics Distribution
Input ingredients
CTMP (chemi-thermical mechanical pulp), NBSK (northern bleached softwood kraft), UKP (unbleached kraft pulp), ONP (old news print or old newspaper), OCC (old corrugated cardboard or old corrugated containers), Annual plants, Reject and scrap material from pulp and paper production
Output ingredients
Fiber molded parts, High-quality packaging from natural fibers, Pulp for fiber thermoforming machines
Market info
KIEFEL GmbH is renowned for engineering and manufacturing high-performance thermoforming and joining systems, specializing in solutions for the packaging, medical technology, and automotive industries, ensuring innovative and precise equipment to meet specific industrial demands.

Technical Specifications


Output per hour
30 kg (virgin fiber) / 160 kg (virgin fiber) / 250 kg (recycled material)
Output type
Batch / Continuous production
Application
Low production volume / Medium volume / High volume
Footprint
4.1 x 2.2 x 2.7 m / 5.5 x 9.1 x 3.5 m / 12.1 x 5.5 x 3.5 m
Recommended system configuration
1 machine / Up to 4 machines / Up to 6 machines
Modules,Options
HD-Pulper, Deflaker, Refiner module, Pressure screen, Additive module, LD-Cleaner, Watertank

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Flexibility in production
Configurable sizes, modules
Installation footprint
Compact system
Automation level
Smart design for relocation
Production start
Simple, fast assembly

Material Compatibility


Chemical compatibility
CTMP, NBSK, UKP, ONP, OCC
Recycled material processing
Yes (OCC, ONP)
Biodegradability
Yes (Natural fibers/pulp)
Renewable resources
Yes (Annual plants)
Recyclable fibers
Yes

Physical Characteristics


Machine footprint
KFP S
Machine footprint
KFP M
Machine footprint
KFP L
Output type
KFP S
Output type
KFP M
Output type
KFP L
Recommended system configuration
KFP S
Recommended system configuration
KFP M
Recommended system configuration
KFP L
Design flexibility
Configurable modules (e.g., refiner, additive module)
Mobility
KFP S

Custom Options


Footprint
Compact system
Modular components
Refiner module, additive module
Integration capability
HD-Pulper, Deflaker, Pressure screen, LD-Cleaner
System configuration
Single source solution
Production type
Batch or continuous
Relocation ease
Smart design for flexible relocation
Installation,setup
Fast assembly, no on-site welding/grinding
