Modular torque rheometer for polymer testing

Gain deep insights into the processability and material characteristics of polymers, with a modular torque rheometer designed for precise control in mixing and extrusion applications. Ideal for labs focused on optimizing material formulations and advancing product development.

Analyzes and Processes Plastics and Elastomers

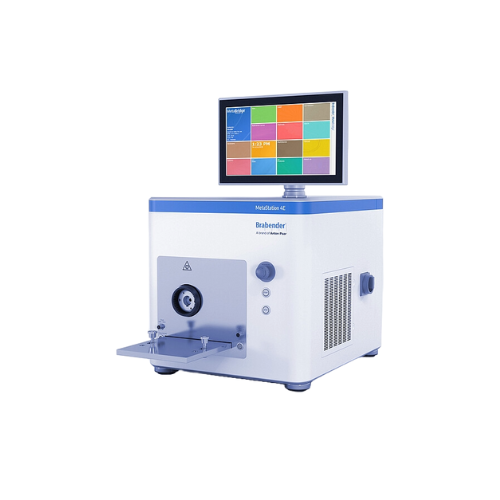

The Brabender MetaStation is a modular torque rheometer offering exceptional versatility for professionals in the chemical and polymer industries. This equipment excels in determining the processability of plastic and elastomer materials through efficient mixing, compounding, and extrusion processes. It supports both batch-wise and continuous production, making it indispensable for applications in manufacturing and R&D settings.

With a range of mixer attachments available, you can quickly adapt the system for testing PVC, rubber, and thermosets. The MetaStation’s successful integration into pilot and lab-scale operations allows for a seamless transition from testing to full-scale production without unnecessary disruption. Its high torque capability—up to 500 Nm—ensures that even the most demanding processes can be handled efficiently.

Automation and data integration are facilitated through the MetaBridge software, giving you real-time analytics and remote access to simplify compliance with ASTM standards. Designed for durability and precision, it features advanced material options and corrosion-resistant coatings, suitable for a wide array of processing requirements. The system’s modular design and user-friendly components drastically reduce cleaning and maintenance time, enhancing operational efficiency. Moreover, customization options are available to meet specific process demands, supported by comprehensive engineering assistance.

Benefits

  • Optimizes production efficiency with seamless transition from lab to full-scale operations.
  • Reduces downtime through quick adaptability with modular mixer attachments.
  • Enhances data accessibility and compliance via integrated MetaBridge software.
  • Minimizes maintenance time thanks to user-friendly design and easy cleaning.
  • Supports precise and consistent processing of diverse materials, ensuring product quality.

General


Applications
Plastifiable substances,Thermosets,Plastics,Rubber,Pvc
End products
Epoxy resin components,Vinyl flooring,Pvc pipes,Rubber seals,Polyurethane foams
Steps before
Material Preparation,Ingredient Weighing,Pre-Heating
Steps after
Sample Analysis,Cooling,Product Packaging
Input ingredients
PVC,thermosets,rubber compounds,plastifiable substances,corrosive substances,abrasive substances,lubricants,particle fillers
Output ingredients
compounded material,mixed material,extruded products,analyzed data,crosslinked thermosets
Market info
Brabender is renowned for producing high-quality, engineered-to-order lab equipment for material testing, particularly in food and plastics industries, specializing in precision instruments for measuring, preparation, and processing.

Technical Specifications


Model
4816
Speed Control
0.2 min-1 to 185 min-1
Maximum Torque
200 Nm
Drive Output
4.2 kW
Weight (net)
154 kg
Speed Deviation
0.2 % through digital feedback
Integrated Temperature Control
6 zones
Connectivity
MetaBridge Connect,WebAPI,Labfolder (LIMS)
Safety Devices
Emergency motor stop button,Non-contact magnetic safety switch
Power Supply
3 × 400 V 50/60 Hz + N + PE,32 A
Dimensions (W x H x D)
700 mm x 870 mm x 950 mm

Operating Characteristics


Automation level
Smart drive and control unit
Batch vs. continuous operation
Batch and continuous possible
Speed control range
0.2 min-1 to 400 min-1
Maximum torque
500 Nm
Compact design for lab setup
Table-top device possible
Modular configuration
Versatile mixer attachments
Data analysis capability
MetaBridge for process variables
Changeover time
Switch between mixer modules in under 15 minutes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Adaptability
Modular mixer attachments

Physical Characteristics


Machine footprint
700 mm x 870 mm x 950 mm
Machine weight
154 kg
Control panel type
MetaBridge Software
Compact design for tabletop application
Possible

Custom Options


Modular Design
Yes
Drive Unit Compatibility
Single- and twin-screw extruders
Mixer Attachments
Interchangeable
Blade Geometries
Varied
Temperature Control Zones
6-8 Zones
MetaBridge Software
Comprehensive Digital Interface
Speed Control Range
0.2 min-1 to 400 min-1
Torque Capabilities
200 Nm to 500 Nm
