Mobile Cip carts for brewery cleaning
Streamline your cleaning process with mobile CIP carts that ensure constant temperature control for effective tank sanitization, saving time and maintaining production line efficiency.
Heats and Recirculates Cleaning Solutions

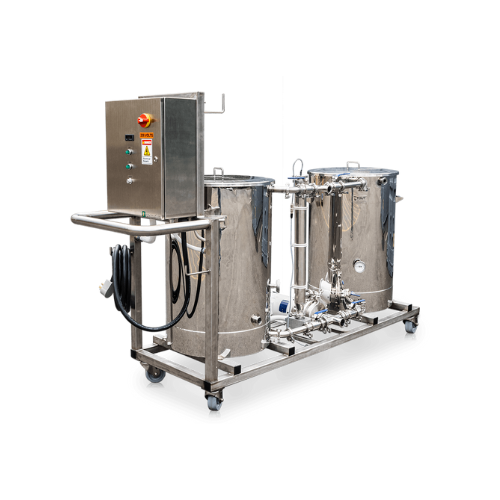

The Brewmation Mobile CIP Cart is a versatile cleaning solution engineered for breweries and distilleries. Designed with an innovative in-line heating tube, it maintains optimal caustic temperatures during circulation, ensuring effective cleaning without temperature drops. This system is tailored for cleaning tanks ranging from 3BBL to 120BBL capacities, supporting beer varieties and craft spirits production with precise sanitation. The CIP Cart offers a range of customizable tank sizes and integrates with your facility via 1.5″ tri-clamp connections. Automation is managed through a digital temperature controller and a variable-speed pump, facilitating efficient recirculation and sanitizing workflows. Safety is prioritized with GFCI-protected heating elements, while UL/cUL listings ensure compliance. Custom configurations are available for unique operational requirements.
Benefits
- Ensures consistent cleaning performance by maintaining optimal solution temperatures.
- Reduces labor efforts with automated recirculation and sanitization processes.
- Enhances operational safety through GFCI-protected heating elements.
- Adaptable to various tank sizes, ensuring scalability for diverse production needs.
- Minimizes risk of contamination with separate sanitization and caustic lines.
- Applications
- Distillery equipment,Distilling,Brewing,Beverage production,Brewery equipment
- End products
- Craft spirits,Ipa,Gin,Lager,Whiskey,Rum,Stout,Brandy,Beer,Kombucha,Ale,Vodka
- Steps before
- Brewing,Distilling
- Steps after
- Sanitization,Storage
- Input ingredients
- caustic solution,sanitizer,water
- Output ingredients
- clean brew tanks,sanitized brew tanks
- Market info
- Brewmation is known for providing custom-engineered brewing systems and equipment. They specialize in automated control systems for brewing, offering scalable solutions for breweries of varying sizes. They're reputed for their high-quality, reliable, and user-friendly systems.
- Tank Capacity
- 20,40,75,100 gallons
- Heating Element Power
- 6000W (20/40 gallon),15000W (above 40 gallon)
- Voltage Requirements
- 208/240V single phase,three phase
- Temperature Control
- Digital temperature controller
- Pump Speed
- Variable speed (1HP for 20/40G,3HP for 75G)
- Connection Type
- 1.5" tri-clamp connections
- Phase Power
- 50A single phase,30A or 60A three phase
- Dimensions
- 55"L x 28.25"W x 66"H for 20 Gallon
- Dimensions
- 62.5"L x 28.25"W x 66"H for 40 Gallon
- Dimensions
- 100"L x 29.25"W x 68"H for 75 Gallon
- Automation level
- PLC with digital controller
- Batch vs. continuous operation
- Batch
- Cleaning method
- CIP (Clean-In-Place)
- Integrated steps
- Heating,cleaning,sanitizing
- Inspection and sanitation
- Inline liquid sensor,temperature probe
- Modular design
- Yes,customizable sizes
- Power requirements
- 208/240V single or three phase
- Safety features
- GFCI protected heating element
- Temperature control
- In-line heating tube maintains caustic temperature
- Machine footprint
- 20 Gallon
- 40 Gallon
- 62.5"L x 28.25"W x 66"H
- 75 Gallon
- 100"L x 29.25"W x 68"H
- Tank shape
- Caustic tank with inline heating tube
- Tank size
- 20 Gallon,40 Gallon,75 Gallon,132 Gallon
- Discharge method
- 1.5" tri-clamp connections
- Control panel type
- Integrated control panel
- Caustic Tank Size
- 20,40,75,100 gallons (custom sizes available)
- Control Panel Type
- Integrated digital temperature controller
- Heating Element
- 6000W (20/40 gallon),15000W (above 40 gallon)
- Pump Capacity
- Variable speed pump (20G,40G use 1HP pump,75G comes with 3HP pump)
- Sanitizer Line
- Separate sanitizer line
- Power Requirement
- 208/240V single phase,50A
- 208/240V three phase,30A/60A
- Temperature Maintenance
- Innovative in-line heater
