Meat portioning line for minced meat

Enhance your meat processing efficiency with a system designed for precise portioning and seamless integration into existing lines. Ideal for producing consistent minced meat portions, hamburgers, sausages, and meatballs with minimal human intervention, this solution streamlines productivity while ensuring high standards of hygiene and accuracy.

Portions, Mincers, and Packages Meat Products

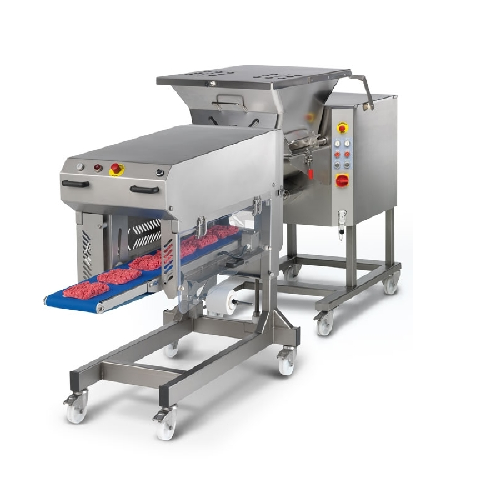

The Meat Portioning Line by Minerva Omega Group streamlines your meat processing operations, from mincing to packaging, with high precision and hygiene. Designed for hypermarkets and industrial processors, it integrates seamlessly into your production line, offering automatic and continuous operation for high throughput. This equipment delivers portioned minced beef, fresh hamburger patties, meatballs, and sausages, handling up to 90 portions per minute with adjustable output settings. Its versatile design includes stainless steel enclosures, a variable speed belt, and a photocell-adjustable portion length for efficient downstream packaging. Compliant with CE standards, it ensures maximum hygiene and safety in line with HACCP requirements. Customizable options and a robust construction make it suitable for diverse processing needs while reducing energy consumption. Ideal for both small-to-large scale operations, the Meat Portioning Line is a reliable choice for enhancing your meat production capabilities.

Benefits

  • Enhances productivity with up to 90 precise portions per minute.
  • Reduces labor costs through automatic and continuous operation.
  • Ensures food safety and hygiene compliant with CE and HACCP standards.
  • Saves energy with variable speed control for efficient processing.
  • Easily integrates into existing production lines with adjustable outlet and connection fittings.

General


Applications
Meatballs,Minced meat,Hamburger patties,Meat processing,Sausages
End products
Fresh hamburger patties,Breakfast sausage links,Chorizo,Italian sausages,Bratwurst,Minced beef portions,Meatball servings
Steps before
Meat Grinding,Meat Mincing
Steps after
Portioning,Packaging,Sanification
Input ingredients
minced meat,meat portions,raw meat
Output ingredients
minced meat portions,patty form,processed meat portions
Market info
Minerva Omega Group Italy is known for producing high-quality food processing equipment, including meat grinders, slicers, and mixers, tailored for industrial applications, with a strong reputation for innovation, reliability, and customer customization.

Technical Specifications


Speed
6–30 m/min
Portioning Speed
max 90 portions/min
Portion Outlet Height
450-850 mm
Meat-grinder Head Centre Height
550-750 mm
Meat-grinder Head Size
32/98 - 42/130
Motor Power
0.45 kW (0.60 HP)
Net Weight
150 kg
Belt Speed
6–30 m/min
Portion Range Weight
0.2 - 1.5 kg
Portion Length
Photocell-adjustable
Tolerance
+/- 5%

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual
Portion control
Photocell-adjustable
Energy efficiency
High-output
Connection with other equipment
Easy on line connection with meat grinders
Speed Control
Variable speed
Outlet Belt Adjustment
Adjustable height
Portion Adjustment
Adjustable portion length

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel
Cleanability
HACCP compliant

Physical Characteristics


Portion outlet height
450 - 850 mm
Variable speed belt
6 - 30 m/min
Meat-grinder head centre height
550 - 750 mm
Net weight
131 - 150 kg

Custom Options


Material
Stainless steel casing and enclosure
Variable Speed
6–30 m/min
Portioning Mode
Free flow / Patty form
Adjustable Belt Height
450–850 mm
Integration
Quick and easy on the line connection
