Meat flattener for kebab, schnitzel, or turkey breast
Achieve consistent thickness for optimal cooking with this flattener, designed to ensure high-speed, uniform processing of kebab meat, schnitzels, and turkey breast, enhancing texture and presentation.
Processes and Flattens Meat Products Efficiently

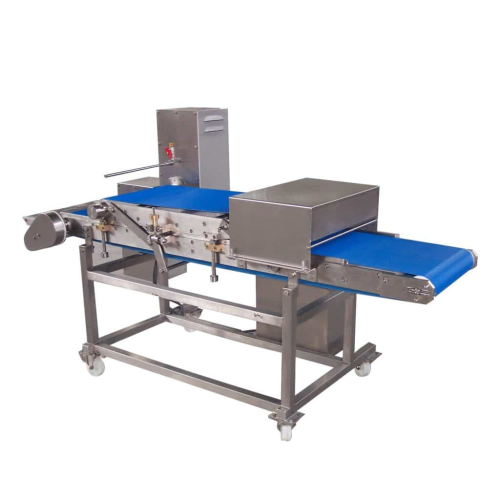

The HP 415 from Henneken is a compact and robust belt flattener designed for meat processing companies focusing on kebab, schnitzel, and turkey breast production. This equipment stands out with its adjustable conveying speed, offering 2.5 to 15m/min, and a customizable gap between belts ranging from 6 to 130 mm, allowing precise control over product thickness. Its conically in-feeding belts ensure optimal product input without side-slipping, making it ideal for maintaining uniformity in the end-products like doner kebab slices and pounded turkey breast fillets. The synchronized upper and lower belts operate in a continuous, high-speed mode, enhancing production line efficiency. Constructed from stainless steel, the HP 415 ensures durability and resistance to corrosion, vital for food processing environments. It integrates seamlessly into existing lines with its simple design, and the easy-to-remove upper belt facilitates quick cleaning, minimizing downtime.
Benefits
- Enhances product uniformity, ensuring consistent cooking and presentation.
- Minimizes downtime with easy-to-remove belts for quick cleaning.
- Increases production line efficiency with high-speed continuous operation.
- Prevents product and belt misalignment, reducing waste and rework.
- Ensures long-term reliability with a corrosion-resistant stainless steel design.
- Applications
- Turkey breast,Schnitzel,Kebab meat
- End products
- Pounded turkey breast fillets,Doner kebab slices,Chicken schnitzel
- Steps before
- Slicing,Marinating,Tenderizing
- Steps after
- Packaging,Freezing,Cooking
- Input ingredients
- kebab meat,schnitzel,turkey breast
- Output ingredients
- flattened kebab meat,flattened schnitzel,flattened turkey breast
- Market info
- Henneken Tumbler is known for manufacturing high-quality tumbling and marinating equipment for the meat processing industry, recognized for innovative designs and reliable performance in enhancing food flavor and texture.
- Band width
- 415 mm
- Conveying speed
- 2.5 – 15 m/min
- Power
- 1.1 kW
- Width
- 800 mm
- Length
- 2.150 mm
- Height
- 1.240 mm
- Outlet height
- 720 mm
- Belt distance (adjustable)
- 6 to 130 mm
- Working Mechanism
- Conically in-feeding belts
- Conveying Speed
- 2.5 to 15 m/min
- Belt Adjustment
- 6 to 130 mm stepless
- Self-Centering Belts
- Prevents side-slipping
- Cleaning Method
- Easy removal of upper belt
- Product Discharge
- Turnable stainless steel discharge-conveying belt
- Cleanability
- Easy and fast cleansing
- Corrosive resistance (e.g. acids)
- Stainless steel components
- Product Types
- Kebab meat,schnitzel,turkey breast
- Machine footprint
- Width
- Belt width
- 415 mm
- Conveying speed
- 2.5 to 15 m/min
- Belt distance adjustment
- 6 to 130 mm
- Discharge method
- Stainless steel discharge-conveying belt
- Conveying speed
- 2.5–15 m/min
- Belt distance adjustment
- 6–130 mm
- Removable upper belt
- Yes
- Turnable discharge-conveying belt
- Yes
- Band width
- 415 mm
