Massaging and tumbling system for meat and seafood

Enhance your meat and seafood processing with a versatile system offering flexible tilting for optimal massaging and marinating. Ideal for achieving uniform brine distribution and superior product consistency, this solution speeds up processing times while ensuring food safety with a hygienic, enclosed design.

Massages and Tumbles Meat and Seafood Products

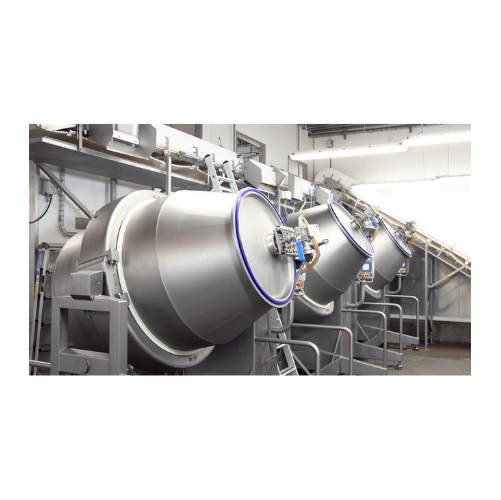

The GEA ScanMini 1.5 from GEA is an innovative massaging and tumbling system, crafted to enhance marination efficiency for food processors across meat, poultry, and seafood sectors. Its defining feature is a robust drum capable of a 230° tilt, ensuring remarkable flexibility in-line and standalone setups. The semi-automatic design facilitates a processing capacity of up to 1500 liters, performing under vacuum to heighten protein extraction and maintain product quality. This system’s versatility allows it to handle a diverse range of end products—such as marinated pork tenderloin and shrimp scampi—while ensuring consistent brine distribution and product integrity. Additionally, its hygienic design with open access for complete inspection guarantees minimal contamination risk and easy maintenance. Enhance your processing line efficiency with options for seamless integration, including vacuum loading of ingredients and optional heat-chill carriers to reduce tumbling time effectively.

Benefits

  • Enhances product consistency and flavor uniformity with precise brine distribution and vacuum operation.
  • Increases operational flexibility with 230° drum tilt and multiposition settings.
  • Improves processing efficiency by reducing marination and tumbling time through dual action and optional heat-chill carriers.
  • Supports stringent hygiene standards with a fully-inspectable design, minimizing contamination risk.
  • Offers scalable integration with in-line, standalone, and semi-automatic configurations to fit diverse production needs.

General


Applications
Seafood,Meat products,Pork,Processed food,Poultry,Beef,Fish
End products
Beef jerky,Chicken fillets,Breaded fish sticks,Salmon fillet,Shrimp scampi,Sausages,Marinated pork tenderloin,Deli meat slices
Steps before
Brine preparation,Ingredient selection,Pre-chilling,Product preparation
Steps after
Cooling,Packing,Labelling,Storage
Input ingredients
pork,beef,poultry,fish,seafood,brine,marinade,dry ingredients,wet ingredients
Output ingredients
marinated meat,tumbled meat,massaged meat,consistent product
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
1500 liters
Dimension
2900x2200x2230 mm
Machine weight
1600 kg
Tilt angle
Up to 230°
Loading lid opening
800 mm
Drum tilt positions
6 different positions
Cooling system
Glycol-based heat exchanger
Vacuum environment
Continuous vacuum
Massaging and tumbling action
Dual (clockwise and anticlockwise)

Operating Characteristics


Working Mechanism
Massaging and Tumbling
Integrated Steps
In-line Massaging and Tumbling
Batch vs Continuous Operation
Inline Continuous
Automation Level
Automatic/Manual
Cleaning Method
Hygienic Design
Temperature Control
Accurate Temperature Control
Flexibility
Up to 230° Tilt
Capacity
Up to 1500 Liters
Loading/Unloading Option
Both Sides
Vacuum Environment
Continuous Vacuum
Protein Extraction Enhancement
Vacuum Loading
Foaming Prevention
Vacuum Operation
Product Flexibility
Pork,Beef,Poultry,Fish,Seafood
Drum Rotation
Clockwise/Anti-clockwise
Product Agitation Action
High Impact Massaging
Meat-on-Meat Action
Preserves Texture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2900x2200x2230 mm
Drum capacity
1500 liters
Tilting angle
230°
Lid opening
800 mm
Machine weight
1600 kg

Custom Options


Control panel type
Available
Drum tilt angle
Up to 230°
Loading and unloading sides
Both sides
Attachments and Add-ons
GEA Columnloader,hoist,conveying system
Heat-chill technology
Available with glycol-based heat exchanger
Cooling Options
Electrical,steam,or ammonia heat exchangers
