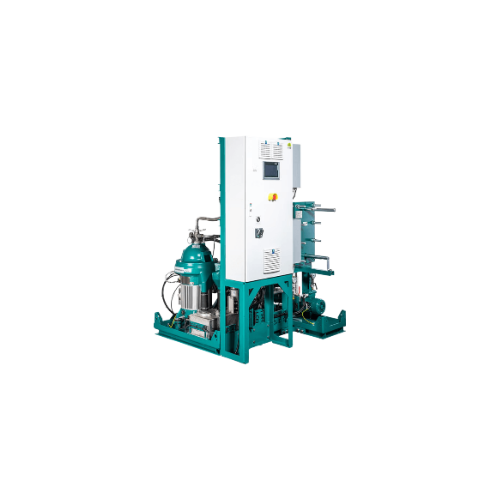

Marine bilge water separator

Achieve ultra-low residual oil content in marine operations with a compact separator system, ensuring seamless integration into your vessel’s systems for efficient bilge water purification and compliance with environmental discharge regulations.

Purifies Oily Water and Monitors Discharge Quality

The GEA bilge Separator is engineered for marine applications to meet rigorous environmental standards. With a compact design and integrated direct drive, it efficiently purifies oily bilge water using centrifugal separation without additional chemicals. This system guarantees residual oil content below 15 ppm, or even 5 ppm with an adsorption filter. Capable of continuous operation, it supports high-speed automated processing and integrates seamlessly with shipboard systems through smart connectivity features. The modular setup allows customizable configurations, adapting to various vessel layouts. Its energy-efficient design and options for additional filtration solutions tackle challenges faced by marine operators, ensuring compliant and safe water discharge in maritime environments.

Benefits

  • Ensures compliant discharge with residual oil content below 15 ppm, contributing to environmental protection.
  • Reduces operating costs through energy-efficient direct drive technology.
  • Simplifies maintenance with modular design allowing for easy component access and replacement.
  • Enhances safety by constantly monitoring discharge quality, preventing unauthorized overboard pumping.
  • Adapts to varying operational conditions with flexible system configurations.

General


Applications
Environmental protection,Marine,Gas,Energy,Oil,Shipbuilding,Shipping,Maritime industry
End products
Treated marine lube oil,Cleaned exhaust gas wash water,Safe discharge quality water,Purified bilge water,Treated marine fuel oil,Processed biofuels
Steps before
Bilge water collection,Preheating,Initial filtration
Steps after
Oil monitoring,Overboard discharge,Bilgewater safety data recording
Input ingredients
oily water,bilge water
Output ingredients
purified water,residual oil content < 15 ppm,residual oil content < 5 ppm
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Residual Oil Content
<15 ppm
Residual Oil Content with Adsorption Filter
<5 ppm
Integrated Direct Drive
Yes
Footprint
Compact
Energy Consumption
Reduced
Feed Pump Adaptive Speed Regulation
Yes
MTP Ready
Yes

Operating Characteristics


Automation level
Integrated direct drive
Residual oil content
< 15 ppm / < 5 ppm with filter
Energy efficiency
Less energy consumption
Footprint
Compact design
Service concept
Simple service
Monitoring
Constant monitoring of overboard valve
Modular design
Customizable configurations
Pump adaptation
Adaptive speed regulating facility

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


IMO Standard Compliance
Yes
CE Marking
Yes

Physical Characteristics


Compact footprint
Compact design with small footprint
Discharge method
Self-discharging separator
Control panel type
Integrated control panel

Custom Options


Integrated direct drive
Yes
Modular design
Yes
Adaptive speed regulation
Yes
Customizable modules
Yes
Optional SafetyMaster integration
System-integrated or stand-alone
