Manual sausage filler for professional use

Achieve precise sausage filling with a manual solution designed to handle a variety of meat products, ensuring consistent quality and efficiency in batch operations.

Fills Sausages with Precision and Efficiency

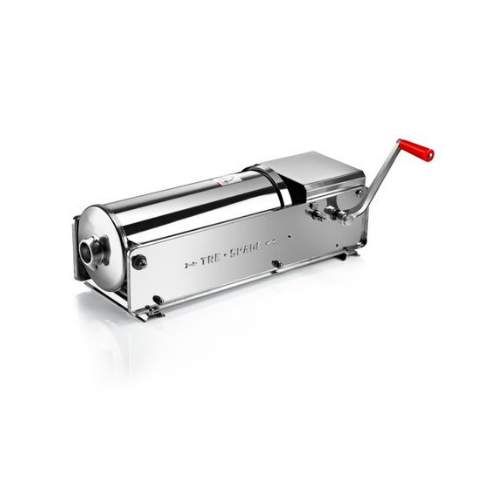

The MOD. 15 Deluxe sausage filler, crafted by Tre Spade, brings precision and reliability to meat processing operations. Designed for both professional and domestic use, it features a manual filling mechanism with a capacity of 15 liters, ideal for producing Italian sausages, chorizo, and more. The stainless steel construction ensures durability and compliance with food safety standards, complemented by a Moplen piston with a silicon seal and air release valve for seamless operation. The double piston speed accelerates filling, maximizing efficiency in batch processes. Supplied with multiple funnel sizes, it caters to diverse sausage dimensions, while its robust design supports demanding environments in food processing and catering industries.

Benefits

  • Enhances production efficiency with double piston speed for faster filling cycles.
  • Ensures product safety and durability through stainless steel construction.
  • Offers versatility with interchangeable funnels for various sausage types.
  • Facilitates precise and consistent filling, minimizing product waste.
  • Complies with food contact regulations, supporting industry standards.

General


Applications
Meat products,Processed meats,Sausages
End products
Liverwurst,Breakfast sausages,Pepperoni,Mortadella,Chorizo,Italian sausages,Frankfurters,Bratwurst,Kielbasa,Salami
Steps before
Meat Preparation,Ingredient Mixing,Meat Grinding
Steps after
Sausage Casing Filling,Sausage Cooking,Packaging
Input ingredients
sausage mixture,ground meat,seasoning mix
Output ingredients
sausages
Market info

Technical Specifications


Capacity
15 lt
Weight
31.0 kg
Dimensions
80x29x28 cm
Double piston speed
Yes (for faster filling)
Material
Stainless steel watertight cylinder,rack,sides,gear box cover,nuts and bolts
Gears
Pressed and hardened steel
Piston
Moplen piston equipped with silicon seal and air release valve
Funnels provided
ø 10,20,30,40 mm

Operating Characteristics


Working mechanism
Manual
Piston speed control
Double speed
Air release
Equipped with air release valve
Filling operation
Manual filling

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel


Food contact certification
Italian Legislative Decree 108/92 - Directive 89/109/EEC

Physical Characteristics


Capacity
15 lt
Machine footprint
80x29x28 cm
Material
Stainless steel
Weight
31.0 kg
Funnel sizes
ø 10,20,30,40 mm

Custom Options


Piston Type
Moplen piston with silicon seal and air release valve
Speed Variability
Double piston speed for faster filling
