Low temperature bath for charpy impact testing

Achieve precise and stable low-temperature conditions for accurate Charpy impact test results without the hazards of expendable refrigerants, ensuring reliable data in materials testing environments.

Controls Temperature for Charpy Impact Testing

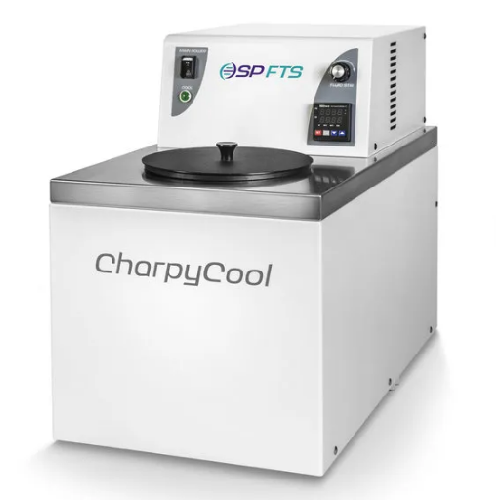

The FTS CharpyCool™ Low Temperature Bath is an essential tool for research laboratories and materials testing facilities, specifically tailored for precise Charpy impact testing. This compact, benchtop unit excels in maintaining consistent temperature control from -80°C to +30°C, using mechanical refrigeration to bypass the need for liquid nitrogen or dry ice. It features a powerful variable speed magnetic stirrer for exceptional temperature uniformity, ensuring reproducible results. Accommodating up to 91 specimens within its 4 L or 8 L capacity, this solution is ideal for testing metals, polymers, ceramics, and composites. The CharpyCool exceeds ASTM Method E23 requirements, providing superior stability with ±0.1°C precision. Its digital temperature display and PID control deliver exact calibration, while its design minimizes hazards and costs associated with expendable refrigerants. Designed for easy integration into laboratory setups, the CharpyCool supports manual operations and offers engineering support for customized needs.

Benefits

  • Enhances safety by eliminating the need for hazardous expendable refrigerants.
  • Ensures accurate material testing with precise temperature control to ±0.1°C.
  • Increases laboratory efficiency by accommodating up to 91 test specimens simultaneously.
  • Saves operational costs through its self-contained refrigeration system.
  • Simplifies setup in small laboratories with its compact benchtop design.

General


Applications
Polymers,Metals,Ceramics,Composites
End products
Polymer impact bars,Steel test samples,Ceramic fracture specimens,Composite test panels
Steps before
Preparation of specimens,Specimen conditioning
Steps after
Analysis of test results,Data recording,Material characterization
Input ingredients
specimens,materials for testing,working fluid volume,substances for refrigeration
Output ingredients
Charpy impact test results,temperature-controlled specimens,reliable test data
Market info

Technical Specifications


Temperature range
-80°C to +30°C
Refrigeration capability
Up to -80°C
Capacity
4 L or 8 L baths
Specimen capacity
65 or 91 specimens
Temperature control accuracy
±0.1°C
Magnetic stirrer,vortex beaker
Built-in
Control system
PID control
Temperature stability requirement
Exceeds ASTM-E23

Operating Characteristics


Temperature range
-80°C to +30°C
Cooling method
Mechanical refrigeration
Temperature control precision
±0.1°C
Automation level
Digital display / PID control
Capacity for specimens
65 or 91 specimens
Working fluid volume
8 L
Compact design
Benchtop appliance
Stability features
Magnetic stirrer and vortex beaker
Compliance with standards
ASTM E23

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ASTM Standard
E23

Physical Characteristics


Compact footprint
Benchtop appliance
Specimen capacity
65 or 91 specimens
Fluid volume capacity
4 L or 8 L

Custom Options


Footprint
Compact benchtop
