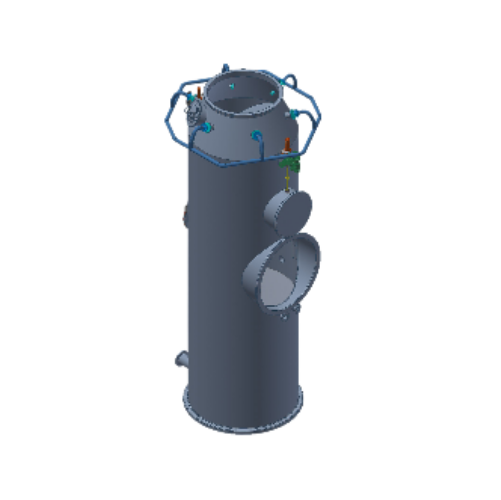

Linear flow scrubber for dust and particulate removal

Optimize your emission control with a high-efficiency solution that adjusts to fluctuating gas flow rates, ensuring steady performance and significant energy savings in demanding pyrometallurgical environments.

Efficiently Scrubs and Cleans Waste Gases

The Linear Flow Scrubber from GEA represents a significant advancement in emission control for non-ferrous metallurgical processes. It stands out with its variable adjustment scrubbing zone, external drives, and CFD-optimized nozzle arrangement, ensuring high scrubbing efficiency through consistent gas pressure control. Ideal for applications like copper, zinc, and lead smelting, this equipment efficiently cleans and conditions waste gases to produce copper cathodes and zinc ingots. Its robust design handles fluctuating gas flow rates with energy savings, maintaining efficiency across a 1:100 volume flow range at constant pressure drop. The compact design allows multiple scrubbing stages within a single vessel. For ease of operation, it features an automatic system with continuous operation capabilities, complemented by potential upstream quench stages for integration when dealing with hot gases. Available in corrosion-resistant materials, it requires minimal maintenance, offering long-term reliability in harsh production environments.

Benefits

  • Enhances emission control by maintaining consistent scrubbing at varying gas flow rates.
  • Provides energy savings through optimized gas pressure and flow conditions.
  • Compact design minimizes installation space and eases integration into existing setups.
  • Reduces maintenance with automated operation and robust construction.
  • Adapts to diverse metallurgical processes, enhancing flexibility across operations.

General


Applications
Zinc smelting,Molybdenum roasting,Lead smelting,Nickel-copper smelting,Platinum smelting,Pyrometallurgical processes,Copper smelting
End products
Nickel concentrate,Copper cathodes,Platinum group metal concentrates,Zinc ingots,Molybdenum concentrate,Non-ferrous metal alloys,Lead bullion
Steps before
Quenching,Pre-dedusting,Gas saturation
Steps after
Gas cooling,Aerosol condensation,Solid impurity removal
Input ingredients
dust,particulates,saturated waste gases,hot gases,raw gas
Output ingredients
clean gas,energy savings,reduced emissions
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Scrubbing capacity
High adaptability at fluctuating gas flow rates
Volume flow range
1
Pressure drop
Low across scrubbing zone
Energy savings
High efficiency operation
Adjustability
Variable adjustment of the scrubbing zone
Nozzle arrangement
CFD optimized
Automatic control
Gas pressure drop control
Design
Compact with smaller footprint
Structural feature
Movable displacer
Working principle
Gas and liquid interaction along reaction line
Additional stage
Can include upstream quench stage

Operating Characteristics


Working mechanism
Variable adjustment of scrubbing zone
Integrated steps
Automatic gas pressure drop control
Flow rate handling
Steady scrubbing at fluctuating gas flow rates
Energy efficiency
Energy saving
Volume flow range
1
Footprint
Compact design,smaller footprint

Material Compatibility


Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Application in metallurgy
Copper,zinc,lead,molybdenum,nickel-copper/platinum
Hot gas handling
Combination with quench stage

Physical Characteristics


Machine footprint
Compact design,smaller footprint
Shape
Vertical standing tube
Size
Reduced height
Flow control
Automatic gas pressure drop control
Scrubbing section
Enlarged scrubbing section

Custom Options


Adjustability
Variable adjustment of the scrubbing zone
External Drives
External drives for scrubber adjustment
Nozzle Arrangement
CFD optimized nozzle arrangement
Pressure Control
Automatic gas pressure drop control
Volume Flow Range
Wide range of volume flow 1
