Linear filling machines for ice cream production
Enhance your ice cream production with modular filling machines designed for precision and speed, accommodating various product types from tubs to cones, ensuring high-capacity output without compromising quality.
Fills and Packages Ice Cream Products

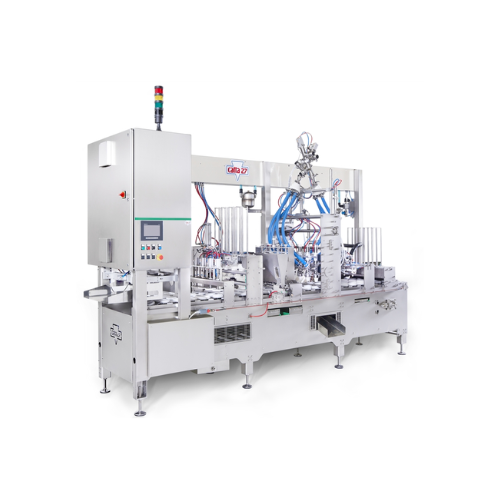

The ICEPACK Linear Filling Machines from Catta 27 are fully modular systems tailored for the ice cream production industry. With customizable configurations, these machines specialize in filling and packaging a wide range of ice cream products, such as tubs, cones, and extruded sticks. Designed for high-speed operations, the ICEPACK ensures seamless integration into existing production lines, delivering up to 29,000 pieces per hour. Automation is streamlined with programmable logic control, allowing for precise adjustments to meet diverse production needs. With support for various product types, including solid and slurry mixtures, the ICEPACK accommodates different materials and packaging styles. Built for durability, these machines feature options for stainless steel construction, ensuring longevity and ease of maintenance. Catta 27 offers engineering support to modify machine specifications, ensuring the equipment fits specific operational requirements while maintaining compliance with industry standards.
Benefits
- Enhances productivity by accommodating up to 29,000 pieces per hour.
- Offers flexible configuration options to meet varying production line demands.
- Reduces operational costs with customizable, energy-efficient setups.
- Facilitates quick product changeovers, minimizing downtime and maximizing output.
- Ensures consistent product quality across diverse ice cream formats.
- Applications
- Stick ice-cream,Water-ice lolly,Sandwich,Tubs,Tartufo,Extruded ice cream,Desserts,Ice cream,Bon bons,Candy bars,Cones,Cakes,Cups
- End products
- Waffle cones,Sponge cakes with ice cream layers,Ice cream tubs,Tartufo with chocolate core,Mini bon bons,Paper cups,Chocolate-covered ice cream sticks,Fruit-flavored water-ice lollies,Sugar cones,Ice cream sandwiches,Chocolate candy bars with ice cream filling,Extruded ice cream bars
- Steps before
- Mix Treatment,Batch Processing,HTST Processing
- Steps after
- Packing,Ice Cream Production,Extrusion,Tunneling,Hardening
- Input ingredients
- Ice cream mix,Cones,Cups,Tubs
- Output ingredients
- Filled ice cream cones,Filled ice cream cups,Filled ice cream tubs
- Market info
- Catta 27 is known for manufacturing high-quality engineered-to-order (ETO) industrial equipment, specializing in customized solutions for various industries. Renowned for innovation and reliability, Catta 27 delivers precise, tailored machinery to meet complex client specifications efficiently.
- Production Capacity
- Up to 3,000 pieces per hour (LINEAR 1)
- Production Capacity
- Up to 5,400 pieces per hour (LINEAR 2)
- Production Capacity
- Up to 8,000 pieces per hour (LINEAR 3)
- Production Capacity
- Up to 12,000 pieces per hour (LINEAR 4)
- Production Capacity
- Up to 16,000 pieces per hour (LINEAR 6)
- Production Capacity
- Up to 19,200 pieces per hour (LINEAR 4+4)
- Production Capacity
- Up to 24,000 pieces per hour (LINEAR 5+5)
- Production Capacity
- Up to 29,000 pieces per hour (LINEAR 8)
- Production Capacity
- Up to 1,000 pieces per hour (LOGO 400)
- Production Capacity
- Up to 1,000 pieces per hour (LOGO 400V)
- Number of Rows
- 1–8 depending on model
- Dimensions
- 2.4x0.8m to 5x1x2m depending on model
- Customization
- Modular and customizable
- Processing Configuration
- Multiple manufacturing stations
- Working mechanism
- Linear Filling
- Integrated steps
- Modular and customizable
- Batch vs continuous operation
- Continuous
- Automation level
- Manual / PLC
- Pieces Per Hour
- Up to 29,000
- Number of rows
- 1 to 8
- Corrosive resistance (e.g. acids)
- Stainless Steel
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product Type
- Ice Cream
- Filling Purpose
- Cones,Cups,Tubs
- Customization Level
- Fully modular
- Machine footprint
- 2.4x0.8 m to 2.8x1.5 m (length depends on station number)
- Number of rows
- 1,2,3,4,6,4 processed 2 at a time,5 processed 2 at a time,8
- Modular and customizable design
- Fully modular and allows customization around the product
- Dimensions for LOGO 400
- Approx. 3x1x2 m
- Dimensions for LOGO 400V
- Approx. 5x1x2 mm
- Product handled
- Cones,Cups,Tubs,Extruded,Wiennetta
- Modular Design
- Fully modular
- Customization
- Customizable per product
- Production Stations
- Multiple options
