Linear conveyor for sandwich packing

Streamline your sandwich production with a high-speed linear conveyor system, designed to efficiently de-nest, erect, and seal sandwich packs while minimizing labor costs and ensuring consistent packaging quality.

Automates Sandwich Packaging and Tray Sealing

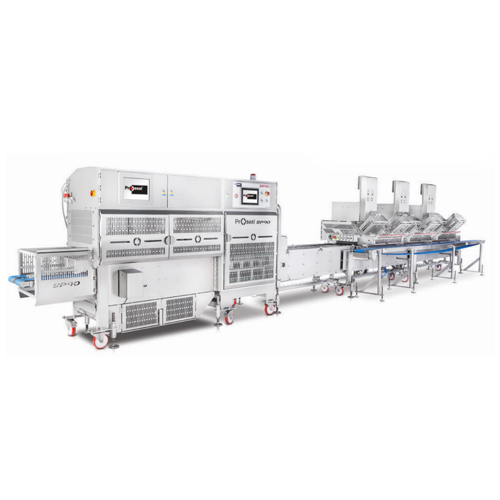

The SP45/60/90 Linear Conveyor from Proseal offers a highly efficient solution for automating sandwich and pharmaceutical packaging. This modular linear tray sealing system integrates seamlessly into your production line, handling applications from club sandwiches to pill blister packs. Engineered to de-nest, erect, and seal at high speeds, it accommodates 45, 60, or 90 packs per minute, depending on your model choice. The system’s servo-driven conveyor and touch screen controls ensure precise operation, while the Eseal® technology reduces energy consumption by 92% with increased seal force. Designed for streamlined changeover, it allows operators to switch skillet sizes in five minutes. Built with hygienic construction for food industry compliance, the SP45/60/90 is easily maintained and customizable, offering options like the eWON system for remote monitoring and ProTect for secure machine access. Suitable for a wide range of industries, this equipment enhances efficiency, minimizes labor costs, and is backed by comprehensive engineering support from Proseal.

Benefits

  • Increases production efficiency with rapid throughput, processing up to 90 packs per minute.
  • Minimizes energy usage by 92% with Eseal® technology, reducing operational costs.
  • Enhances operational flexibility with quick five-minute skillet size changeovers.
  • Lowers labor costs through automated de-nesting, erecting, and sealing processes.
  • Ensures hygienic and safe production with food industry-approved construction.

General


Applications
Personal care,Sandwiches,Pharmaceutical
End products
Club sandwiches,Chicken salad sandwiches,Blt sandwiches,Shampoo bottle sealing,Egg salad sandwiches,Tablet packaging,Pill blister packs,Cream jar sealing,Cosmetics packaging,Syrup bottle sealing,Turkey and cheese sandwiches,Ham and swiss sandwiches
Steps before
De-nesting,Erecting,Size Change,Placement
Steps after
Sealing,Tray Ejection,Collation,Orientation,Coding and Printing
Input ingredients
cardboard sandwich skillets,sandwich ingredients
Output ingredients
sealed sandwich packs,packaged sandwiches
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Speed
45/60/90 packs per minute
Pack Type
Sandwich skillets
Skillet Width Range
60mm to 105mm
Seal System
Eseal® energy efficient electric seal system
Skillet Change Time
5 minutes
Integration
Easily integrates with other production line equipment
Automation
Automatic tray eject
Construction
Food industry approved hygienic construction and wash-down protection
Conveyor System
High specification conveyor drive system
Portability
Fully portable and castor mounted
Tray/Sandwich Skillet Coding
Integrated coding and printing
Lid Pick and Place
Automatic lid pick and place system
Touch Screen Controls
Yes
Servo Driven Conveyor
Yes
Tray Ejection
Automatic with collation and orientation options

Operating Characteristics


Packaging speed
45/60/90 packs per minute
Changeover time
5-minute skillet size change time
Integration capability
Integrates with other production line equipment
Automation level
Automatic tray eject
Energy efficiency
92% reduction in energy consumption
Cleaning method
Wash-down protection

Material Compatibility


Cleanability
Food industry approved hygienic construction and wash-down protection
Corrosive resistance (e.g. acids)
Stainless steel construction for durability and resistance
Biological compatibility
Suitable for food and pharmaceutical applications

Product type Characteristics


Tray/Sandwich sealing
Card,Recyclable and Non-Recyclable Plastic


Hygienic construction
Food industry approved
Wash-down protection
Yes
Eseal® energy efficient system
92% reduction in energy consumption

Physical Characteristics


Control panel type
Touch screen controls
Machine mobility
Fully portable and castor mounted
Discharge method
Automatic tray eject
Skillet size
Runs skillet widths from 60mm to 105mm

Custom Options


Integration with Peripheral Equipment
Possible
Control Panel Type
Touch Screen Controls
Audit Trail System
ProTect
Remote Setup and Support
eWON System
