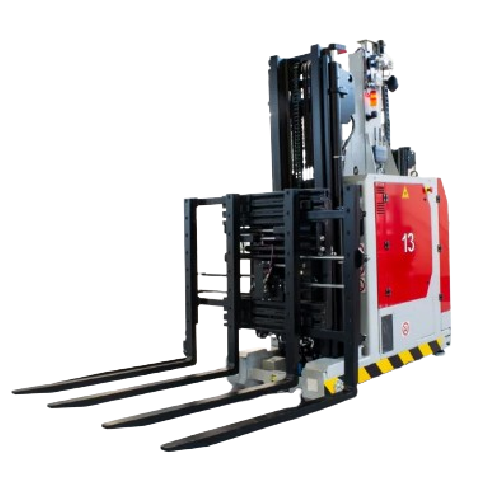

Laser guided vehicle for pallet handling

Efficiently streamline your internal logistics with cutting-edge laser guidance, ensuring precise pallet transportation and enhancing overall workflow management in constrained spaces.

Transports and Manages Pallet Loads Efficiently

The Auriga CT series from OCME comprises counterbalanced laser guided vehicles optimized for precise pallet handling and seamless transport within diverse industrial settings. These vehicles stand out due to their high stability and accuracy, facilitated by advanced laser guidance systems that ensure efficient navigation in busy warehouse environments. Designed for applications across beverage, food, home care, and industrial lubricant sectors, the Auriga range is capable of handling varying pallet sizes, supporting both multiple and single unit transport with ease.

The series includes models like the Auriga 8 CT and Auriga 45 CT, offering load capacities from 800 kg to 4,500 kg. Integration into existing infrastructure is streamlined via OCME’s Warehouse Management System (WMS), which uses sophisticated algorithms to optimize space and logistics flow. Connectivity is maintained through an Ethernet network, allowing vehicles to interact with central traffic management and other plant equipment.

Additionally, these vehicles feature a robust battery management system with options for semi and automatic battery replacement, ensuring continuous operation. The modular design allows for customization to meet specific process requirements, supported by OCME’s engineering team, ensuring each unit can be tailored for optimal performance in demanding production conditions.

Benefits

  • Enhances logistics efficiency with precise laser guidance, reducing manual intervention.
  • Boosts operational continuity through flexible battery management systems.
  • Optimizes warehouse space utilization with integrated Warehouse Management System.
  • Accommodates diverse pallet sizes, supporting varied production requirements.
  • Increases operational reliability with high stability during transport.

General


Applications
Food,Personal care,Paper and tissue,Beverage,Lubricants,Home
End products
Canned soups,Liquid detergent,Bottled water,Deodorants,Toilet paper rolls,Automotive oils,Bottled cosmetics,Frozen foods,Tissue boxes,Packaged snacks,Canned beverages,Soft drinks,Industrial lubricants,Laundry pods,Facial wipes
Steps before
Palletizing,Depalletizing
Steps after
Packing,Stretch Wrapping,Banding,Warehouse Management
Input ingredients
pallets,half pallets,quarters of a pallet,products,industrial reels,shuttle
Output ingredients
handled pallets,handled products,placed industrial reels,managed shuttle
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Max Unit Load Weight
800-4500 kg
LGV Height
3000 mm
Lifting Height
3000 mm
Max Height Lift Mast
1200 mm
LGV Length
2550-4350 mm
LGV Width
820-1800 mm
Wheel Base
920-1850 mm
Max Speed
1700 mm/s
Max Speed Fork Lift
150-200 mm/s
LGV Weight with Battery
2000-10000 kg
Automation
AGV Manager,PLC-controlled
Battery System
Ad hoc charging,semi/automatic battery replacement

Operating Characteristics


Navigation System
Laser guided
Load Handling
Counterbalanced with forks
Automation Level
Managed by AGV Manager
Flexibility
Can move any type of product from any station
Warehouse Management
Integrated WMS with dynamic allocation
Battery System
Ad hoc/semi/automatic replacement
Missions Management
Supervised with visual interface
Vehicle Stability
High stability of product being moved
Handling Capability
Pallets,half pallets,quarters

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2550 mm - 4350 mm length,820 mm - 1800 mm width
Max Height Lift Mast
1200 mm
Lifting height
3000 mm
LGV Height
3000 mm
Max unit Load Weight
800 kg - 4500 kg
Wheel base
920 mm - 1850 mm
Max. speed
1700 mm/s
Max speed Fork Lift
150 mm/s - 200 mm/s
LGV weight with battery
2000 kg - 10000 kg
Wheel configuration
Counterbalanced
Fork Style
Standard fork

Custom Options


Control interface
Visual interface,PC,PLC
Battery system options
Ad hoc charging,semi/automatic battery replacement
Integration capabilities
Network linked with ERP,PC,PLC systems
Load handling
Handles pallets,half pallets,and quarter pallets
Network type
Wired and wireless Ethernet
Algorithm adaptability
WMS integrated with adaptable algorithms
Vehicle dynamic allocation
Dynamic mission management
Load capacity range
800 kg to 4500 kg
Forklift speed
150-200 mm/s
Customization options
Max unit load weight,LGV dimensions
