Jujube grading machine for round and oval fruits

Optimize your fruit and vegetable processing with precise size sorting, enhancing quality control and boosting product value through efficient, adjustable grading capabilities.

Grades and Sorts Fruits and Vegetables

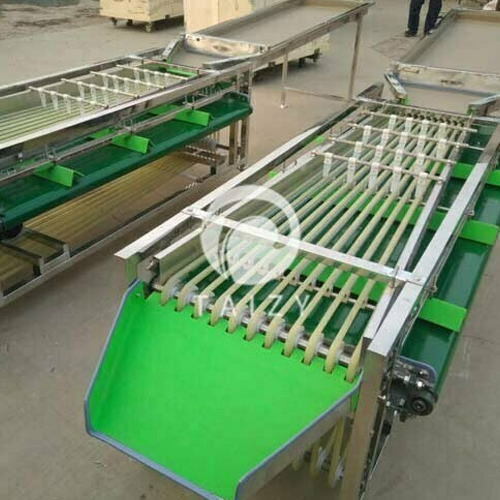

The TZ-1 Jujube Grading and Date Sorting Machine from Zhengzhou Taizy Machinery Co., Ltd. offers a robust solution for fruit and vegetable processing plants seeking precise grading capabilities. This machine employs a full copper motor with adjustable speeds, optimizing the grading process for various sizes of fruits such as dates, passion fruits, and walnuts. With a capacity of 500kg/h, it utilizes a food-grade silicone belt to handle products gently, reducing product damage while maintaining efficiency. Its customizable grading options, adjustable from three to six levels, ensure flexibility across diverse applications, including agricultural cooperatives and food processing companies. Constructed from durable stainless steel, the TZ-1 integrates seamlessly into continuous operations, replacing manual sorting to lower labor costs. Its easy-to-maintain design facilitates quick cleaning, enhancing operational uptime. Additional features include configurable grades and an adaptable feeding system, supported by engineering assistance to meet specific customer requirements.

Benefits

  • Enhances product consistency and market value with precise grading.
  • Reduces labor costs through automated sorting and grading operations.
  • Maintains product integrity with gentle, food-grade handling surfaces.
  • Customizable grading levels accommodate a wide range of product sizes.
  • Durable stainless steel construction ensures long-term reliability and low maintenance requirements.

General


Applications
Nuts,Vegetables,Fruits
End products
Blueberries,Longan,Potatoes,Oranges,Passion fruit,Walnuts,Dates
Steps before
Harvesting,Cleaning,Sorting by size,Pre-selection
Steps after
Packing,Distribution,Storage,Quality Inspection
Input ingredients
jujube,dates,passion fruit,longan,blueberry,orange,potato,walnut,round fruits,oval fruits
Output ingredients
graded jujube,graded dates,graded round fruits,graded oval fruits
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
500 kg/h
Power
0.75 kW
Voltage
220V/380V
Material Diameter
0.5–4.5 cm
Construction Material
Stainless Steel
Grading Levels
3–6 levels
Motor Type
Full Copper Motor
Dimensions
2.2*0.8*0.9 m
Weight
100 kg
Grading Speed
Adjustable

Operating Characteristics


Working mechanism
Adjustable grading size
Automation level
Manual / Adjustable via governor
Batch vs. continuous operation
Continuous
Cleaning method
Manual/Clean in Place capability
Fruit selection process
Automated sorting with manual oversight
Input material flexibility
Round and oval fruits
Speed adjustment
Customizable motor speed
Grade levels adjustment
3-6 adjustable levels
Feeding mechanism
Side or top feed

Material Compatibility


Abrasion resistance
High
Biological compatibility
Food-grade materials
Cleanability
Stainless steel construction
Corrosive resistance (e.g. acids)
High

Physical Characteristics


Machine footprint
2.2*0.8*0.9 m
Material
Thickened stainless steel
Feed method
Feeding on the machine side or on the top of the machine
Discharge method
Through adjustable grading tracks
Adjustable grading size
0.5-4.5 cm
Tracks
Food-grade silicone belt,elastic,non-toxic
Number of grades
Adjustable,generally 3-6 levels
Capacity
500 kg/h
Weight
100 kg

Custom Options


Grading size adjustment
Adjustable within a certain range
Number of grades
3-6 levels,arbitrarily adjustable
Machine material
Thickened stainless steel
Customizable parts
Machine size,grading speed,power specification
Feeding mechanism
Side or top feeding
Speed control
Adjustable speed,motor customizable (220v or 380v)
Material type capability
Round and oval fruits and vegetables
Belt material
Food-grade silicone belt
