Jaw crusher for medium-hard to hard materials
Optimize your material processing with a powerful solution for efficiently reducing large feed sizes into precise, uniform particles, enhancing your production’s capacity and throughput.
Crushes and Reduces Industrial Materials

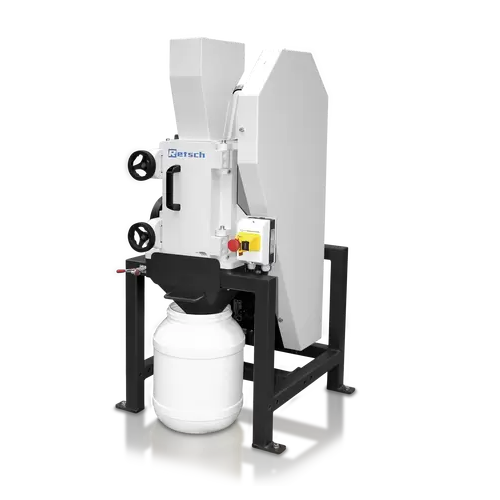

The Jaw Crusher BB 250 from RETSCH is engineered for the challenging demands of industrial crushing applications. Designed to handle a variety of tough materials like ores, ceramics, and slag, it operates through a robust forced-feed principle, ensuring efficient size reduction. The wedge-shaped crushing chamber, with its adjustable gap width, accommodates feed sizes up to 120 x 90 mm, achieving final fineness down to 2 mm and a throughput of up to 300 kg/h. Ideal for construction, mining, and geology sectors, the BB 250 is versatile for both batch and continuous processes, integrating seamlessly with existing production lines. It boasts easy-cleaning features with a front door access to the crushing chamber and optional dust extraction for maintaining operational cleanliness. Available in multiple material options, including manganese and stainless steel, it offers contamination-free grinding for precise analytical results. Perfectly suited for pre-crushing in R&D labs and small-scale production, this jaw crusher supports your need for innovation and efficiency.
Benefits
- Enhances operational efficiency by accommodating continuous and batch processing modes.
- Minimizes maintenance efforts with easy access for cleaning and wear indicator for jaw replacement.
- Reduces contamination risk with multiple material options for grinding tools.
- Improves safety and cleanliness with integrated dust extraction capabilities.
- Offers flexibility in processing a wide range of materials from construction aggregates to geological samples.
- Applications
- Ceramics,Silicon,Construction materials,Cement clinker,Coal,Drill cores,Quartz,Ore,Tungsten alloys,Catalysts,Slag
- End products
- Geological drill samples,Silicon wafers,Catalyst particles,Slag cement,Ceramic tiles,Portland cement,Coal dust,Concrete aggregates,Tungsten carbide tools,Quartz powder,Metal ores
- Steps before
- Drilling,Sampling,Material Extraction,Preliminary Grinding
- Steps after
- Sieving,Particle Analysis,Sample Division,Material Collection
- Input ingredients
- construction materials,ores,granite,oxide ceramics,quartz,slag,silicon,coal,tungsten alloys,cement clinker,ceramics,catalysts,drill core
- Output ingredients
- crushed materials,particles,reduced size materials,analysis-ready samples,powdered samples
- Market info
- Retsch is renowned for manufacturing high-quality laboratory equipment, specializing in milling, sieving, and assisting technologies for sample preparation and characterization, known for precision, reliability, and innovation in the scientific and industrial laboratory markets.
- Feed size
- < 120 x 90 mm
- Final fineness
- < 2 mm
- Throughput
- up to 300 kg/h
- Crushing ratio
- 45
- Gap width setting
- 0 - 30 mm
- Drive power
- 3.0 kW
- Jaw width
- 120 x 90 mm
- Net weight
- ~ 350 kg
- Protection code
- IP 55
- Collector capacity
- 10 l
- Dimensions (W x H x D)
- 695 x 1399 x 719 mm
- Electrical supply
- different voltages
- Zero point adjustment
- yes
- Wearing rate display
- yes,up to minus 10 mm
- Batch vs. continuous operation
- Batch / Continuous
- Automation level
- Manual / PLC
- Changeover time
- Quick access for cleaning
- CIP/SIP
- Manual / Dust extraction available
- Energy efficiency
- Robust design
- Cleaning method
- Easy manual access
- Abrasion resistance
- High
- Biological compatibility
- Not applicable
- Cleanability
- Easy cleaning features
- Corrosive resistance (e.g. acids)
- Manganese steel,stainless steel
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Sample material types
- Construction materials,ores,granite,oxide ceramics,quartz,slag,silicon,coal,tungsten alloys,cement clinker
- Machine Footprint
- 695 x 1399 x 719 mm
- Jaw Width
- 120 x 90 mm
- Feed/Discharge Method
- Continuous or batchwise
- Connection for Dust Extraction
- Yes
- Collector Capacity
- 10 L
- Weight
- ~ 350 kg
- Discharge method
- Collecting receptacle with outlet for continuous operation
- Hopper type
- Standard,Infeed,Special
- Jaw material
- Manganese steel,stainless steel,tungsten carbide,steel for heavy-metal free grinding,stainless steel 316L,NiHard4 steel
- Capacity
- Up to 10 liters batchwise
- Up to 300 kg/h continuously
- Dust extraction
- Connection for dust extraction
- Gap width setting
- 0 - 30 mm,continuous
- Jaw wear display
- Scale indicates jaw wear
- Frame design
- Modular concept for adjustable housing and frame
