Isolator for Vphp decontamination testing

Ensure precise decontamination analysis and stringent monitoring of hydrogen peroxide levels in pharmaceutical and biotech production environments, with a robust isolator designed for sterile and safe processing of sensitive materials.

Monitors and Controls VPHP Decontamination Processes

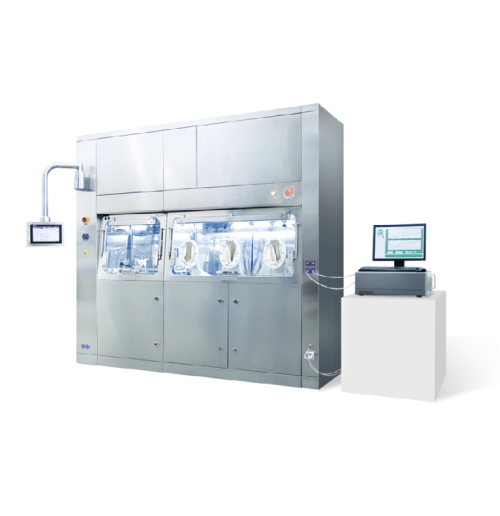

The VPHP Decontamination Testing Isolator from Comecer is designed to ensure precise decontamination in medical and pharmaceutical settings. This isolator excels by integrating a vapor phase hydrogen peroxide (VPHP) generator with advanced sensors for monitoring hydrogen peroxide concentration, temperature, and humidity. It works by maintaining positive pressure within the chamber, which assures sterility throughout the decontamination process. Applications span a variety of settings from pharmaceutical production of sterile injectable drugs to RADIOPHARMACEUTICALS and aseptic compounding of cell and gene therapies. It supports comprehensive testing, monitoring, and desorption analysis, crucial for maintaining compliance with safety and environmental standards. The isolator facilitates easy integration with existing laboratory setups and is manually operable, ideal for bench-top operations. Equipped with sophisticated detection technology, it monitors even low concentrations of hydrogen peroxide (<3 ppb), making it a suitable choice for ensuring safety and quality in highly sensitive production environments.

Benefits

  • Maintains sterility with positive pressure isolation, ensuring contamination-free environments.
  • Provides precise VPHP concentration monitoring, enhancing safety and regulatory compliance.
  • Enables accurate detection of low hydrogen peroxide levels, ensuring thorough decontamination.
  • Facilitates integration into existing lab setups, minimizing setup time and operational disruptions.
  • Supports versatile applications across pharmaceuticals, biotech, and radiopharmaceuticals, broadening its use case scope.

General


Applications
Aseptic compounding,Medical devices,Radiopharmaceuticals,Pharmaceutical products,Cell and gene therapy products
End products
Sterile injectable drugs,Implantable medical devices,Car-t cell therapies,Radiolabeled monoclonal antibodies,Parenteral nutrition solutions
Steps before
Steps after
Sterilization,Monitoring,Recording,Desorption tests
Input ingredients
materials for decontamination,pharmaceutical materials
Output ingredients
decontaminated materials,H2O2 residues,analysis data
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Air flow velocity
Probe used for measurement
H2O2 concentration detection
High sensitivity sensor
Temperature and humidity sensor
Integrated measurement
H2O2 trend detection
Maximum level sensor
H2O2 low concentration detection
Minimum level sensor
Photo-catalytic action
Photocatalyst included
Moisture control
Dehumidifier present
Chamber pressure
Positive pressure with respect to the laboratory
Primary usage
Decontamination via VPHP
Desorption test capability
Inside chamber
Microbial monitoring
Connection for particle and microbiological counter
Chamber configuration
Pre-chamber and main chamber
Decontamination generator
VPHP generator equipped
Temperature sensor
Included
Humidity sensor
Included
Internal shelves
Available
Internal sliding tray
For easy material movement
Glovesystem
Speedy Glovesystem
Glove spreaders
Available

Operating Characteristics


Airflow control
0.1–2 m/s
Positive pressure operation
Yes
Automation level
Manual / PLC / SCADA
Cleaning method
CIP / Manual
Batch vs. continuous operation
Batch

Product type Characteristics


Desorption Testing
Material Compatibility
Decontamination Cycle Control
Programmable

Physical Characteristics


Glove system
Speedy Glovesystem
Internal shelves
Yes
Internal sliding tray
Yes
Connection for counters
Particle and microbiological
Dehumidifier
Yes
Photocatalyst
Yes

Custom Options


Control panel type
HMI / Touchscreen
