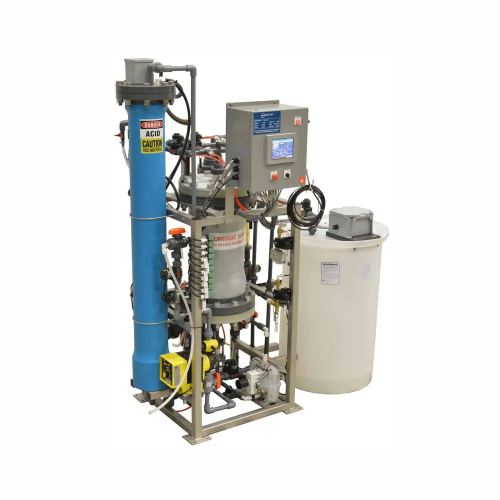

Ion exchange system for electroplating and steel pickling acids

Achieve continuous separation and recovery of metal salts from electroplating and steel pickling solutions, reducing chemical waste and operational downtime.

Recovers and Purifies Metal Salts from Baths

The ChromaPur™, NickelPur™, and MicroPur™ Ion Exchange Systems from Kovalus Separation Solutions are engineered to tackle the complexities of metal salt recovery and purification in electroplating and steel pickling processes. Utilizing compressed-bed, counter-current operation, these systems ensure the efficient recovery of chromic acid, purified nickel salts, and pickling acids. Perfect for reducing operating and waste treatment costs, they maintain consistent bath chemistry and enhance product quality.

With a focus on continuous operation, the systems integrate seamlessly into your existing production line and are suitable for industries ranging from automotive to environmental. Their energy efficiency is augmented by a tailored design that minimizes downtime through high metal salt recovery rates, reducing both chemical usage and dumping frequency.

Available in corrosion-resistant materials, these systems support various liquid processing needs and are fully customizable, with engineering support for bespoke requirements. With robust design and the potential for remote monitoring, they align with stringent industry standards, providing reliable, long-term operation and easy maintenance, thanks to built-in cleaning solutions.

Benefits

  • Minimizes waste treatment costs by recovering and reusing metal salts.
  • Supports consistent bath chemistry, enhancing product quality and reliability.
  • Reduces energy consumption with efficient, continuous operation methods.
  • Seamlessly integrates with existing production lines for diverse industries.
  • Lowers operational costs by eliminating the need for frequent bath dumping.

General


Applications
Electroplating,Steel pickling
End products
Pickling acids,Purified nickel salts,Chromic acid
Steps before
Plating Solution Preparation,Nickel Drag-Out Collection
Steps after
Purified Chromic Acid Return,Nickel Salt Re-addition,Plating Bath Replenishment,Pickling Solution Reconstitution
Input ingredients
plating solution,dissolved contaminants,nickel drag-out,pickling acids,metals
Output ingredients
purified chromic acid,recovered nickel salts,de-acidified nickel salts,reusable chromic acid,removed metals
Market info
Kovalus Separation is known for manufacturing industrial engineered-to-order (ETO) separation equipment, specializing in tailored solutions for complex filtration and separation needs, with a strong reputation for innovation, quality, and reliability in various industries.

Technical Specifications


Recovery Rate
Over 95% nickel recovery
Automation
Counter-current operation
Chemical Usage
Purified and reusable chromic acid
Energy Requirements
Lower energy requirements
System Type
Compressed-bed ion exchange
Operation Size
Small to medium-sized steel pickling
Contaminant Removal
Removes dissolved contaminants in chrome plating

Operating Characteristics


Working Mechanism
Ion Exchange Resin System
Batch vs. Continuous Operation
Continuous
Automation Level
PLC-Controlled
Cleaning Method
CIP
Energy Efficiency
High Recovery of Metal Salts
Integrated Steps
Recovery,Concentration,and De-acidification
Chemical Usage Reduction
Reduced Chemical and Waste Treatment Costs

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Control panel type
Touchscreen / Digital
Integration possibilities
SCADA / PLC
Compact footprint
Customizable size
