Inspection system for plastic ampoules in strips

Ensure the integrity of single-dose plastic containers with high-speed leak detection, guaranteeing each unit’s safety and effectiveness before reaching consumers.

Detects Leaks in Plastic Ampoule Strips

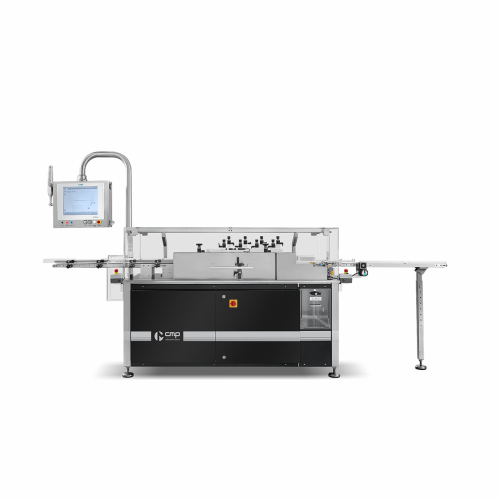

The LT-S by Marchesini Group is a precision-engineered High Voltage Leak Detection system designed for inspecting single-dose plastic strips in pharmaceutical and biotech sectors. Utilizing high voltage electrical fields and impedance measurement, this system identifies hairline fissures and pinholes, ensuring product integrity in applications such as single-use eye drop vials and unit-dose liquid medications. Operating with a throughput of up to 100 pieces per minute, it seamlessly integrates into high-speed, continuous production lines, enhancing final conditioning and packaging efficiency. Configurable electrode systems provide customization for various ampoule heights, from 50 mm to 120 mm, offering versatility in inspection. Engineered with GMP compliance in mind, the LT-S supports rigorous industry standards, delivering reliable performance and reducing the risk of product wastage due to undetected leaks.

Benefits

  • Ensures product quality by detecting leaks in single-dose containers, reducing the risk of contamination.
  • Enhances operational efficiency with high-speed processing of up to 100 pieces per minute.
  • Customizable inspection range accommodates diverse ampoule sizes, providing flexibility for various production needs.
  • Integrates seamlessly into existing production lines, minimizing installation disruptions and increasing productivity.
  • Complies with GMP standards, supporting strict regulatory requirements in pharmaceutical manufacturing.

General


Applications
Plastic ampoules,Nutraceuticals,Single dose plastic strips,Pharmaceuticals
End products
Single-dose protein supplements,Single-serving vitamin d ampoules,Unit-dose liquid paracetamol,Single-use eye drop vials
Steps before
Purification,Filling,Sealing
Steps after
Packing,Quality Assurance,Cartoning
Input ingredients
single dose plastic strips,plastic ampoules in strips,products packaged in strips
Output ingredients
inspected plastic ampoules,integrity-tested containers,products free of hairline fissures and pinholes
Market info
Marchesini is renowned for manufacturing high-quality packaging machinery for the pharmaceutical and cosmetics industries, offering innovative, customized solutions with advanced automation and technology.

Technical Specifications


Inspection Technology
High Voltage Leak Detection
Height Range
50 mm - 120 mm
Production Speed
Up to 100 pcs/min
Standard Inspections
Hairline Fissures and Pinholes
Optional Inspections
TV Camera System for Printing Control

Operating Characteristics


Working mechanism
High Voltage Leak Detection (HVLD)
Integrated inspection steps
Hairline fissures and pinholes detection
Automation level
Automated inspection with optional TV camera system for printing control
Batch vs. continuous operation
Continuous
Production speed
Up to 100 pcs/min

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Plastic ampoules

Physical Characteristics


Height Range
50 mm - 120 mm
Production Speed
Up to 100 pcs/min
Inspection Type
High Voltage Leak Detection (HVLD)
Product Type
Plastic ampoules in strips

Custom Options


Integration possibilities
HVLD system
Inspection type
High Voltage Leak Detection
Electrode customization
Customized electrodes
Optional inspection
TV camera system for printing control
