Industrial water filtration and clarification systems

Enhance your production’s purity and quality with advanced filtration and clarification systems, designed to efficiently remove impurities, ensuring your beverages and water meet the highest standards.

Filters and Clarifies Water for Production Lines

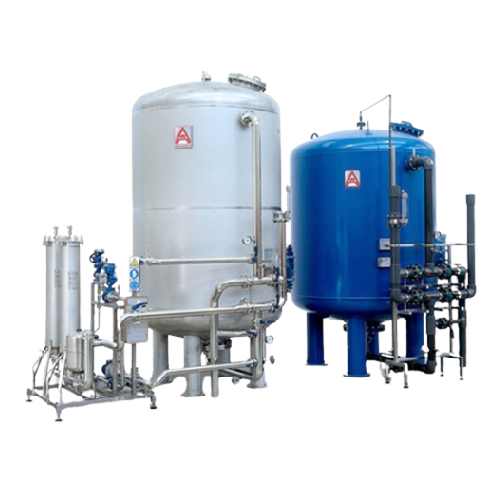

The water filtration and clarification system from A Due S.p.A. is an indispensable solution for tackling water purity challenges in your production lines. Utilizing a combination of dual media, carbon, and ultrafiltration technologies, it efficiently removes contaminants such as chlorine, heavy metals, and colloids. Ideal for applications in food and beverage production, this system ensures the delivery of purified drinking water and specialized beverages including flavored carbonated drinks and plant-based options. With scalable throughput ranging from 10,000 to 100,000 liters per hour, this system offers both modularity and full automation, easily integrating into existing setups. Constructed with durable materials like stainless steel, it provides corrosion resistance and long-term reliability. Compliance with industry regulations ensures safe operation across sectors, while features like self-cleaning filters and automated backwashing reduce downtime and maintenance efforts. Tailored engineering support is available, allowing customization to meet specific production requirements.

Benefits

  • Enhances product quality by efficiently removing impurities and contaminants.
  • Integrates seamlessly into existing production lines, minimizing installation disruptions.
  • Reduces operational costs with self-cleaning filters and automatic backwashing.
  • Offers material flexibility to withstand diverse chemical compositions.
  • Supports sustainable operations with reduced water and energy consumption.

General


Applications
Plant-based beverages,Milk,Csd (carbonated soft drinks),Water treatment,Non-alcoholic beer,Fantasy drinks,Food applications,Beverage preparation,Juices,Hard seltzers,Flavored water
End products
Cold-pressed fruit juices,Detox flavored water,Purified drinking water,Botanical-infused beverages,Almond milk,De-alcoholized lager beer,Soy milk,Rice milk,Flavored carbonated soft drinks,Sparkling mineral water,Craft hard seltzers,Fortified vitamin juices
Steps before
Pre-filtration,Pre-treatment,Initial disinfection
Steps after
Reverse Osmosis,Water Bottling,Waste Water Treatment
Input ingredients
untreated water,raw water,chlorine,ions,halogenated organic compounds,pesticide,heavy metals,suspended solids,colloids,bacteria,biomolecules,viruses,polymers,colloidal particles,dissolved organics,chlorine,iron,manganese,fluorine,TSS,COD,oils,fats
Output ingredients
filtered water,clarified water,clean water,water with reduced turbidity,water with reduced chlorine,water with reduced iron and manganese,water with reduced fluorine,microfiltered water,ultrafiltered water
Market info
A Due is known for designing and manufacturing beverage processing equipment, specializing in water treatment, syrup preparation, and complete automation solutions for the beverage industry, with a strong reputation for innovation and quality engineering.

Technical Specifications


Flowrate
10,000 l/h to 100,000 l/h
Filtration Rate
50÷200 µm Max
Working flow rate per unit
10,000 l/h to 60,000 l/h
Turbidity removal
Within 5 and 50 NTU
Daily recovery
Up to 96% (on 24h cycles)
Inlet water TSS
Max 100 mg/l
Inlet water COD
Max 60 ppm
Filtration degree
0.1 to 10 micron
Filter bed composition
Quartzite sub-layers and activated carbon layer
Maximum Pressure Difference
0.6 bar
Backwashing system
Water/air mixture
Contact Time (EBCT)
6 ÷ 15 min
Operating Pressure
Measured by pressure difference between inlet and outlet
Automatic regeneration
Yes
Filtration process control
PLC-controlled

Operating Characteristics


Filtration mechanism
Self-cleaning,Dual Media,Carbon,Ultrafiltration,Cartridge
Automation level
Automatic (PLC-controlled)
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP / Automatic Regeneration
Backwashing capability
Automatic with low water consumption
Changeover time
N/A

Material Compatibility


Corrosive resistance
Stainless steel / Carbon steel coated with epoxy resins
Cleanability
Automatic regeneration,backwashing options

Physical Characteristics


Control panel type
PLC-controlled
Compact footprint
Standalone and modular units
Material
AISI 304,316 stainless steel,or carbon steel coated with epoxy resins
Flowrate
10,000 l/h to 100,000 l/h
Internal Scraper
With suction nozzle,equipped with gearbox
Filter type
Self-cleaning,dual media,carbon,cartridge
Filtration Rate
50÷200 µm Max
Automation level
Automatic regeneration

Custom Options


Control panel type
PLC-controlled
Control integration
SCADA integration
Material options
Stainless steel / Carbon steel with epoxy
Regeneration type
Automatic / Manual
Modular configuration
Available
