Industrial steam superheaters

Optimize energy efficiency and achieve precise steam temperature control with advanced steam superheaters, designed to integrate seamlessly into waste heat recovery systems and high-pressure steam applications.

Maximizes Steam Generation Efficiency

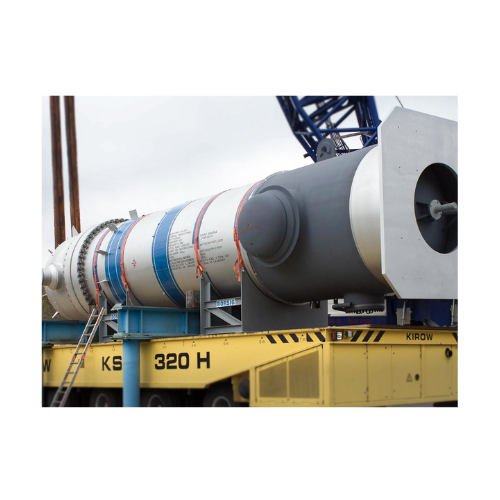

The BORSIG steam superheater is engineered for demanding industrial applications requiring high-pressure steam, prominently utilized across chemical, petrochemical, and energy sectors. This sophisticated equipment features a vertically arranged U-tube system with a combined steam inlet/outlet chamber, facilitating effective steam superheating post waste heat recovery. The equipment is seamless in integrating with secondary reformers and reformers, making it ideal for reformed and synthesis gas processing.

With a steam capacity handling pressures up to 130 bar and temperatures up to 530°C, the superheater optimizes energy efficiency and enhances system resilience by incorporating a unique internal gas-side bypass for precise temperature regulation. Its design minimizes thermal stress through efficient radial temperature distribution across the tube sheet.

BORSIG ensures material durability by avoiding comprehensive refractory linings, focusing instead on selective insulation where necessary to prevent heat loss. Easy integration into existing systems and complementary service options further enhance operational continuity while meeting rigorous industry safety standards. BORSIG offers customization to accommodate unique process requirements, ensuring tailored solutions for efficient steam optimization and reliability in high-demand environments.

Benefits

  • Enhances process efficiency by maximizing energy recovery from waste heat.
  • Reduces operational stress with precise temperature control, prolonging equipment life.
  • Compatible with high-pressure applications, increasing versatility across industries.
  • Minimizes installation and operational costs with efficient thermal insulation.
  • Customizable configurations ensure optimal integration into existing systems.

General


Applications
Chemical processing,Energy systems,High-pressure steam applications,Waste heat recovery,Synthesis gas processing,Power plants,Industrial steam generation,Reformed gas processing
End products
Methanol,Ammonia,Nitric acid,Ethylene,Steam,Hydrogen
Steps before
Reforming,Waste heat recovery,Partial oxidation
Steps after
Steam utilization,Energy distribution,Process integration
Input ingredients
steam,reformed gas,saturated steam,process gas
Output ingredients
superheated steam,cooled gas
Market info
BORSIG is known for its expertise in manufacturing high-quality industrial engineered-to-order (ETO) equipment, including pressure vessels, heat exchangers, and compressors, with a strong reputation for engineering excellence and reliability in the petrochemical and chemical industries.

Technical Specifications


Steam pressure
Up to 130 bar
Steam temperature
Up to 530°C
Design arrangement
Two stage or one stage
Orientation
Horizontally or vertically arranged
U-tube arrangement
Vertically arranged with U-tubes
Steam inlet/outlet chamber
Combined chamber
Flow guidance
Thermally insulated guiding jackets
Refractory lining
Bypass area only
Temperature distribution
Radial across thick tube sheet
Bypass system
Internal gas-side bypass

Operating Characteristics


Working mechanism
Vertically or horizontally arranged
Stage configuration
One stage / Two stage
Flow arrangement
Counterflow
Heat transfer management
Thermal insulation
Gas bypass
Internal gasseitiger Bypass
Temperature regulation
Radial temperature distribution

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Orientation
Horizontal / Vertical
Tube Arrangement
U-tubes
Insulation Type
Thermally insulated jacket
Lining Type
Refractory lining in bypass

Custom Options


Stage Arrangement
One stage / Two stage
Orientation
Horizontal / Vertical
Tube Arrangement
U-tubes
Material Insulation
Thermal insulation
Bypass Installation
Internal gas-side bypass
