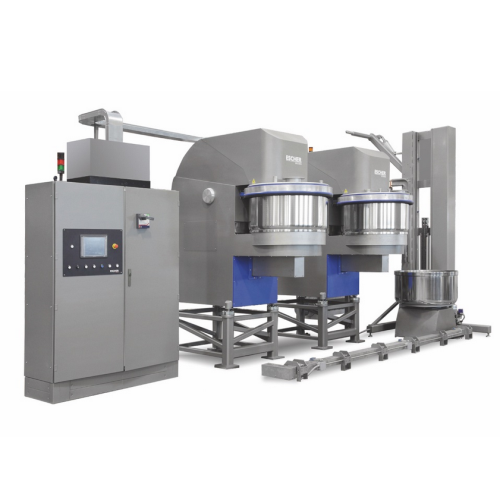

Industrial spiral mixer with bottom discharge system

Enhance dough quality and streamline operations with a dual-tool mixer featuring a bottom discharge system, perfect for seamless integration into automated production lines.

Mixes and Transfers Dough Efficiently

The MD-W Line Mixer from Escher Mixers is engineered to revolutionize industrial dough processing. Its unique dual mixing tool system combines a spiral action with efficient discharge capabilities, streamlining your production line. This mixer excels in producing a wide range of bakery goods, from artisan breads to pastries like croissants and brioches, by ensuring optimal dough consistency and texture. The MD-W Line supports seamless integration into existing production environments with its continuous operation capabilities, allowing for efficient conveyor transfer and resting stages. The robust design features a bottom discharge system that minimizes handling time and enhances hygiene. With a focus on durability, the transmission system maintains constant rpm for high-quality output and reduced maintenance needs compared to traditional systems. Optional enhancements, such as the Vario Drive System, provide adjustable mixing tool and bowl speeds for precise control. Built with food-grade materials and a design focused on easy cleaning, this mixer meets stringent industry standards, ensuring both performance and compliance in high-volume bakery conditions.

Benefits

  • Enhances efficiency by reducing dough handling time with its bottom discharge system.
  • Maintains dough quality with precise, constant mixing speeds.
  • Integrates seamlessly into production lines for continuous, automated operation.
  • Minimizes maintenance needs with a durable transmission system.
  • Offers adaptable mixing control with optional Vario Drive System for diverse dough types.

General


Applications
Bakery products,Confectionery dough,Bread dough,Pastry dough
End products
Baguettes,Cookies,Danish pastries,Muffins,Artisan breads,Croissants,Breadsticks,Ciabatta,Brioche,Puff pastry
Steps before
Dough Preparation,Ingredient Mixing
Steps after
Dough Resting,Conveying,Forming,Baking
Input ingredients
dough ingredients
Output ingredients
mixed dough,dough onto conveyor belt,dough into moveable bowl
Market info
Escher Mixers (Middleby) is known for manufacturing high-quality, engineered-to-order mixing equipment, specializing in spiral and planetary mixers, primarily for the bakery industry. They are reputed for innovative solutions and reliability in industrial dough mixing.

Technical Specifications


Mixing Capacity
160,240,400,600 kg
Mixing Tool Type
Spiral / Dual Tool
Bottom Discharge System
Yes
Transmission Type
Constant RPM
Variable Speed System
Vario Drive System (VDS)
Automation
Available with optional accessories

Operating Characteristics


Working Mechanism
Spiral mixing with dual tool
Discharge Method
Bottom discharge system
Automation Level
Optional Vario Drive System
Batch vs. Continuous Operation
Batch
Cleaning Method
Hygienic design focus
Energy Efficiency
Improved transmission system
Bowl Transmission
Constant rpm

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Bottom discharge system
Compact footprint
Yes
Control panel type
Available with optional Vario Drive System (VDS)

Custom Options


Discharge method
Bottom discharge system
Control panel type
Vario Drive System (VDS) available
