Industrial screw press for juice extraction

For juice manufacturers aiming for optimal yield and efficiency, this screw press offers precise control with its variable speed and exchangeable components, ensuring maximum extraction from a variety of raw materials including fruit pulp and rinds.

Extracts Juice and Separates Pulp

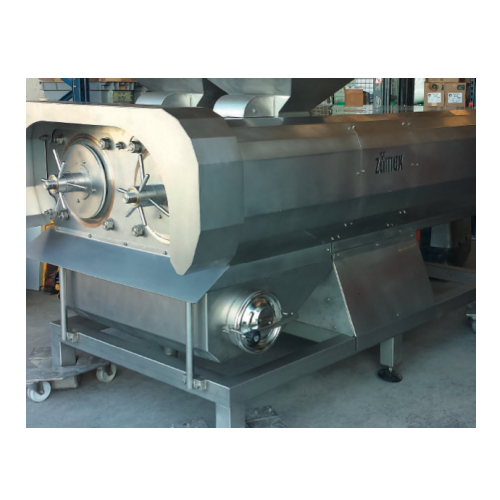

The ZumexZSP5 Screw Press from Zumex Food Engineering offers robust performance tailored for juice production and fruit processing industries. Utilizing a variable section press body and powered by adjustable worm screws, this screw press excels in separating juice from pulp and processing fruit peels into animal feed or dried products. Capable of processing between 3,500 and 5,000 kilos per hour, this equipment supports continuous and semi-automatic operations, ensuring seamless integration into your production line. Its design includes built-in frequency variability for speed adjustment and interchangeable sleeves for different perforation diameters, optimizing output efficiency. Constructed from stainless steel, the ZumexZSP5 ensures durability and resistance to corrosion, meeting the rigorous demands of food and beverage environments. Additionally, its modular design facilitates easy cleaning and maintenance, suitable for a variety of applications including orange juice concentrate, apple cider, and citrus animal feed production.

Benefits

  • Enhances juice yield through efficient pulp separation and extraction.
  • Accommodates high production volumes up to 5,000 kilos per hour.
  • Lowers operational costs with energy-efficient variable speed motors.
  • Stainless steel construction ensures long-lasting performance and corrosion resistance.
  • Simplifies maintenance and cleaning processes with modular design.

General


Applications
Animal feed,Fruit rind,Dried fruit peel,Pulp extraction,Juice
End products
Citrus animal feed,Dried lemon peel powder,Apple cider,Orange juice concentrate,Orange rind pellets
Steps before
Selection,Washing,Drying,Calibration,Crushing,Depulping
Steps after
Animal Feed Processing,Packing,Bottling,Labelling
Input ingredients
raw material,juice pulp,dried fruit peel,rind
Output ingredients
juice,animal feed
Market info

Technical Specifications


Speed
Variable speed with built-in frequency variator
Capacity
3500–5000 kg/h
Material
Stainless steel
Press Type
Variable section press bodies with worm screw(s)
Sleeve Perforation Diameter
Exchangeable sleeves with different perforation diameters

Operating Characteristics


Working mechanism
Worm screw
Speed variation
Variable speed with frequency variator
Batch vs. continuous operation
Continuous
Automation level
Integrated PLC control
Press bodies
Variable section press bodies
Material processing
3500 to 5000 kg/hr
Cleaning method
Integrated CIP compatible

Product type Characteristics


Product form
Pulp and peels

Physical Characteristics


Material
Stainless steel
Feed method
Worm screw
Discharge method
Dried pulp/rind discharge
Press body
Variable section
Speed
Variable speed with frequency variator
Sleeves
Exchangeable with different perforation diameters

Custom Options


Material type
Stainless steel
Control system
Variable speed with frequency variator
Exchangeable sleeves
Different perforation diameters
Press bodies
One or two variable sections
