Industrial grit classifier for wastewater treatment
Achieve efficient grit removal and sediment separation in wastewater streams with this robust solution, ensuring streamlined operations and reduced maintenance demands in your treatment process.
Separates and De-waters Grit from Wastewater

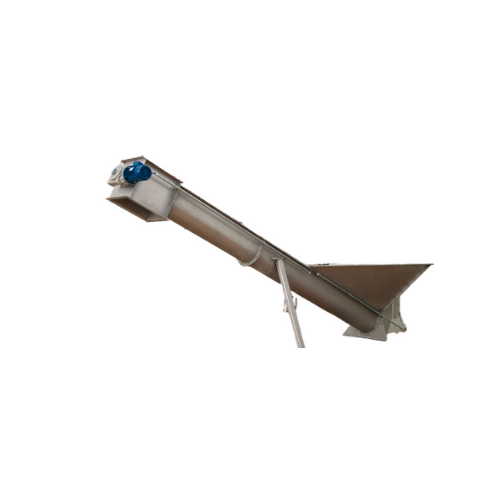

The GRITSEP DS Grit Classifiers from WAMGROUP offer a robust solution for separating and de-watering grit and sand from wastewater. Utilizing an inclined screw conveyor with a sedimentation hopper, this equipment excels in sedimentation by employing a low-speed, shaftless screw to convey and discharge de-watered solids efficiently. Ideal for industries ranging from municipal wastewater treatment to food processing and pulp and paper, the GRITSEP DS improves processing efficiency while reducing wear on subsequent equipment. With a liquid throughput of 5 to 36 m³/h and solids throughput of 0.06 to 0.36 dm³/s, it accommodates a wide range of operational needs. Constructed with stainless steel components and wear-resistant liners, the equipment ensures durability and low maintenance costs. Optional configurations such as vertical outlet and alternative motor protections allow for tailored integration into any production line. The GRITSEP DS is a sustainable choice, offering eco-friendly operation by minimizing energy consumption and eliminating the need for bearings.
Benefits
- Minimizes operational costs with low installation and maintenance requirements.
- Enhances plant efficiency by reliably separating and de-watering coarse particles.
- Supports eco-friendly operations by eliminating the need for additional water usage or bearings.
- Improves discharge quality and downstream equipment reliability with effective grit removal.
- Allows easy maintenance with replaceable bolted wear bars and open trough access.
- Applications
- Fruit and vegetable processing wastewater,Plastics recycling industry wastewater,Abattoirs wastewater,Environmental technology,Food processing wastewater,Wastewater treatment,Municipal wastewater treatment,Beverage industry wastewater,Industrial wastewater treatment,Pulp and paper processing,Dyeing works,Tanneries
- End products
- Steps before
- Screening,Sedimentation,Initial filtration,Pre-treatment,Influent flow regulation
- Steps after
- Sludge treatment,Secondary filtration,Water discharge,Effluent Quality Monitoring,Waste disposal
- Input ingredients
- wastewater,grit,sand,water
- Output ingredients
- clean water,de-watered grit,de-watered sand,sediment
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Liquid throughput
- 5 ~ 36 m3/h (3 ~ 21 cfm)
- Solids throughput
- 0.06 ~ 0.36 dm3/s (0.1 ~ 0.7 cfm)
- Screw rotation speed
- Low speed
- Material
- Stainless steel,Carbon steel
- Screw type
- Shaftless spiral
- Screw housing
- Trough with low-friction anti-wear liner
- Conveyor Type
- Inclined Shaftless Screw
- Decantation Process
- Gravity Sedimentation
- Water Inlet/Outlet
- Integrated Spout System
- Speed Control
- Low Rotation Speed
- Eco-friendliness
- Low Maintenance,Energy Use
- Maintenance Requirement
- Low
- Material Discharge
- Screw Conveyance
- Durability Features
- Heavy-duty Wear-resistant Materials
- Operation Mode
- Continuous
- Flow Rate
- 5 ~ 36 m³/h
- Corrosive resistance (e.g.,acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Shaft type
- Shaftless screw
- Trough Material
- Stainless steel with bolted wear bars
- Hopper Material
- Stainless steel
- Trough Liner
- Low-friction anti-wear trough liner
- Drive Unit
- Mounted at outlet end
- Water Inlet/Outlet Spout
- Included
- Hopper Shape
- Inclined screw conveyor
- Discharge Method
- Vertical outlet available
- Hopper
- Stainless steel
- Shaftless screw
- Heavy-duty spiral,wear-resistant
- Trough liner
- Bolted wear bars
- Drive guard
- Alternative options available
- Voltage,Frequency
- Alternative voltage and frequency available
- Motor protection
- Alternative degrees available
- Control panel
- Available
