Industrial fermentation separator with nozzle bowl

Optimize your industrial fermentation process with advanced separation technology, designed to handle high cell content and varying feed concentrations efficiently.

Separates and Recirculates Micro-organism Rich Feed

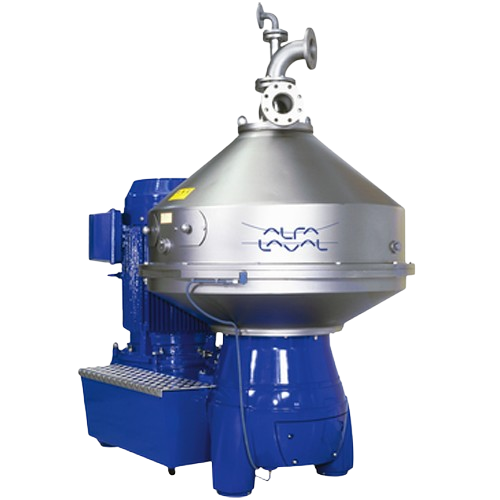

The FEQX nozzle bowl separator from Alfa Laval is designed to optimize the separation of micro-organisms in industrial fermentation and bio-processing applications. Utilizing a high-efficiency disc stack design, it enables continuous, high-speed centrifugation and recirculation, making it ideal for handling feeds with variable concentrations. The FEQX is applicable in producing ethanol, probiotics, and biofuels, offering the flexibility needed in complex bioprocessing environments. With peripheral nozzles and recirculation features, it ensures effective separation of solids with minimized downtime. Available in corrosion-resistant materials, the FEQX is built to standards accommodating rigorous industrial conditions. It integrates seamlessly into existing production lines, supporting continuous operation and enhanced productivity.

Benefits

  • Enhances product purity by efficiently separating micro-organisms and contaminants.
  • Maintains consistent operations despite variable feed concentrations through recirculation.
  • Seamlessly integrates into continuous production lines for increased output.
  • Available in corrosion-resistant materials for long-lasting performance in demanding conditions.
  • Reduces operational costs with continuous discharge and minimal manual intervention.

General


Applications
Bio-based products,Biotechnology,Micro-organisms separation,Biomass processing,Yeast processing,Industrial fermentation,Bioprocessing
End products
Lactic acid,Proteins,Biofuels,Ethanol,Fermentation broths,Biomass-derived chemicals,Biopolymers,Yeast extract,Enzymes,Probiotics
Steps before
Fermentation Preparation,Feed Homogenization
Steps after
Concentration Adjustment,Product Recovery
Input ingredients
liquid,solids,feed,micro-organisms,high cell content,solids impurities,low concentrations of feed solids
Output ingredients
light phase,yeast,concentrated solids
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Separator Type
Nozzle bowl
Separation Task
Micro-organisms with high cell content
Recirculation Feature
Concentrate recirculation to handle feed solid fluctuations
Feed Type
With or without solid impurities

Operating Characteristics


Working Mechanism
Nozzle Bowl Separator
Separation Type
Disc Stack
Automation level
Automated Recycling
Feed Handling
High Cell Content
Feed Concentration Control
Recirculation Through Nozzles
Solids Discharge Method
Continuous Discharge Through Nozzles
Inline vs. Batch Processing
Inline Continuous

Material Compatibility


Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Bowl Type
Nozzle Bowl
Shape and Size
Various sizes and configurations
Feed/Discharge Method
Stationary inlet pipe/Peripheral nozzles
Recirculation Capability
Recirculation inlet pipe and tubes

Custom Options


Nozzle Bowl Type
Yes
Recirculation Feature
Yes
Peripheral Nozzles
Yes
Separator Size,Configuration
Varies
