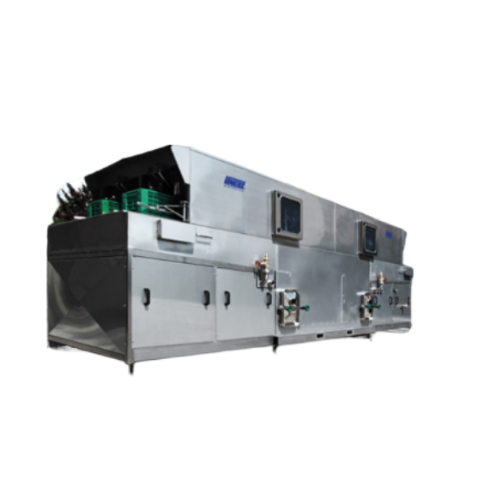

Industrial crate washer

Ensure optimal hygiene and efficiency by integrating high-speed crate washing into your production line, effectively removing contaminants while conserving water through advanced filtration and recycling systems.

Washes, Filtrates, and Drip-Dries Crates

The UNI BOX WASH by Unitec Group is a state-of-the-art crate washing system engineered for high-speed processing environments. It features dual parallel washing lines for manual loading, allowing flexible operations with up to 3,000 crates per hour, depending on the level of soiling. The washing process involves two distinct phases: an initial wash with cold water jets at 6 bar and a high-pressure wash at approximately 200 bar using mobile nozzles for thorough cleaning. This system excels in water conservation, employing an internal filtration setup that enables complete water recycling. The first wash utilizes a manually removable filter, while the second wash benefits from a self-cleaning system. Suitable for fruit and vegetable crates in food, agriculture, and horticulture industries, the UNI BOX WASH integrates seamlessly into continuous production lines and offers a sustainable solution for maintaining high standards of sanitation. With its 47 kW power requirement and 300 NI/min air consumption, it stands as a robust, resource-efficient choice for large-scale operations.

Benefits

  • Optimizes water use by reusing 100% of wash water, enhancing sustainability and reducing operational costs.
  • Accommodates high-speed operations with a capacity of up to 3,000 crates per hour, boosting productivity.
  • Ensures flexible adaptation to variable crate conditions with selectable speed levels to match soiling intensity.
  • Lowers maintenance efforts and extends system life with self-cleaning filtration during the high-pressure wash phase.
  • Supports efficient manual loading and unloading, minimizing setup times in diverse production environments.

General


Applications
Crates,Vegetables,Fruits
End products
Fruit crates,Clean packaging crates,Vegetable crates
Steps before
Manual loading of crates,Crate infeed preparation
Steps after
Drip drying,Manual collection
Input ingredients
dirty crates
Output ingredients
washed crates,drip-dried crates
Market info

Technical Specifications


Capacity
Up to 3000 crates/hour
Power supply
50 Hz,380 V three-phase + neutral + ground
Electric power
47 kW
Air consumption
300 NI/min
Air pressure
6 bar
Crate width range
250 to 500 mm
Crate height range
160 to 400 mm
Crate length max
600 mm
Water pressure (1st phase)
6 bar
Water pressure (2nd phase)
approx. 200 bar
Filter system
Internal
100% water reuse

Operating Characteristics


Working mechanism
Parallel washing lines
Integrated steps
4 stages washing process
Flow type
Inline continuous
Automation level
Manual operation with speed selection
Cleaning method
Water jets with self-cleaning filter system
Drying phase
Drip dry on chutes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Washing line configuration
Two parallel lines
Control panel type
Manual operation
Crate dimensions
Width
Feed method
Manual supply
Discharge method
Chutes for drip-dry
Filter system
Internal,100% water reuse

Custom Options


Washing speed levels
4 selectable levels
Filter system type
Internal,self-cleaning
Nozzle type
Mobile nozzles
Power washer pressure
6 bar / 200 bar
