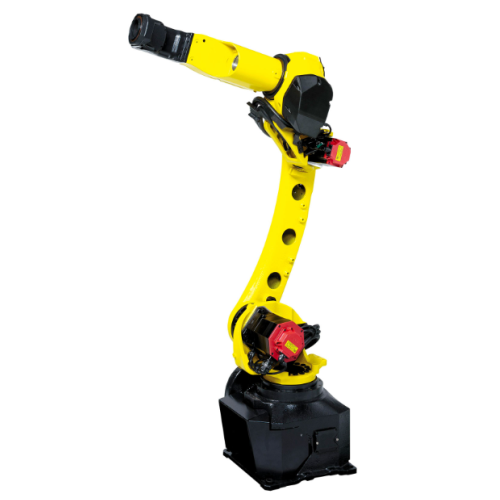

Industrial arc welding robot

Achieve precise and consistent welds in high-speed operations with this advanced arc welding robot, ideal for fabricating durable metal components in demanding environments.

Performs High-Speed Arc Welding for Metal Fabrication

The FANUC Robot ARC Mate series exemplifies precision in arc welding, featuring models like the ARC Mate/7-9D and ARC Mate/25-18D, renowned for their versatility in automotive and aerospace manufacturing. These robots offer six controlled axes for complex welding paths, efficiently handling payloads up to 35kg. Their motion range and repeatability (as precise as ±0.01mm) ensure high-quality welds in continuous operations. They seamlessly integrate into existing manufacturing lines with floor, upside-down, or angular installation options and are controlled via the R-50iA Mate controller. These robots bolster productivity with energy-efficient operations while accommodating customization for specialized needs in metal bracket and chassis production. Designed for environments demanding high-speed and consistent welding, they meet rigorous industry standards, providing reliable performance for manufacturing companies committed to efficiency and precision.

Benefits

  • Enhances precision in welding with repeatability as fine as ±0.01mm, ensuring consistent product quality.
  • Increases productivity with high-speed operations and seamless integration into existing production lines.
  • Reduces energy consumption through optimized motor control, lowering overall operational costs.
  • Supports versatile installation options (floor, upside-down, angle), allowing for flexible production line configurations.
  • Minimizes maintenance needs with robust engineering, ensuring reliable, continuous operation in demanding environments.

General


Applications
Industrial equipment,Metal fabrication,Automotive components,Heavy machinery,Aerospace components,Construction equipment
End products
Aircraft fuselage sections,Heavy duty machine components,Construction vehicle parts,Metal brackets,Industrial machinery frames,Automotive chassis
Steps before
Material preparation,Workpiece positioning,Fixturing
Steps after
Quality inspection,Surface finishing,Component assembly
Input ingredients
arc welding materials,electric power,welding wire,shielding gas
Output ingredients
welded joints,welded metal assemblies
Market info
FANUC is renowned for its expertise in automation, specializing in manufacturing industrial robots, CNC systems, and machine tools, with a strong reputation for reliability and innovation in industrial automation solutions.

Technical Specifications


Max. payload at wrist
7 kg,16 kg,12 kg,10 kg,8 kg,25 kg,35 kg
Controlled axes
6
Motion range (X,Y)
911mm,1643mm
1103mm,1977mm
1441mm,2616mm
1636mm,3006mm
2032mm,3762mm
1831mm,3461mm
2272mm,4343mm
Repeatability
±0.01mm,±0.02mm,±0.03mm
Mass
27 kg,145 kg,150 kg,180 kg,250 kg
Installation
Floor,Upside-down,Angle

Operating Characteristics


Automation level
Automated with Controller R-50iA
Installation Flexibility
Floor,Upside-down,Angle
Payload Capacity
7kg to 35kg
Repeatability
±0.01mm to ±0.03mm
Motion Range (X,Y)
911mm,1643mm to 2032mm,3762mm

Product type Characteristics


Application type
Arc welding

Physical Characteristics


Max. payload at wrist
7kg,16kg,12kg,10kg,8kg,25kg,35kg
Motion range (X,Y)
911mm,1643mm
1103mm,1977mm
1441mm,2616mm
1636mm,3006mm
2032mm,3762mm
1831mm,3461mm
2272mm,4343mm
Repeatability
±0.01mm,±0.02mm,±0.03mm
Mass
27kg,145kg,150kg,180kg,250kg
Installation
Floor,Upside-down,Angle

Custom Options


Installation type
Floor,Upside-down,Angle
Matching controller
R-50iA (A-,B-Cabinet),R-50iA Mate
