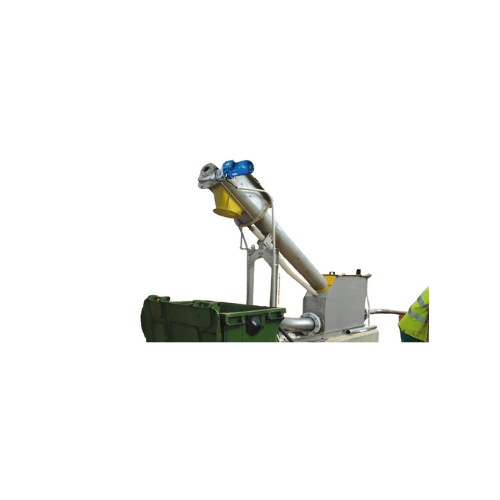

In-pipe screw screens for wastewater treatment

Achieve efficient solids-liquid separation in wastewater streams with robust screw screens that prevent clogging, even with fibrous materials, ensuring optimal operation and reduced downtime in treatment processes.

Separates and De-waters Wastewater Solids

The WASTEMASTER GCPC/GCEC from WAMGROUP is a reliable solution for efficient solids-liquid separation in wastewater treatment facilities. Featuring a shaftless screw design, it prevents clogging even when handling fibrous materials. Installed in a self-supporting tank, these in-pipe screw screens are ideal for municipal and industrial applications, including civil wastewater, food, beverage, and plastics recycling industries. Capable of processing flow rates up to 1,000 m3/h, they de-water and compact solids, reducing volume by up to 35%, and operate continuously without the need for extensive civil works. The system is made from corrosion-resistant 304L/316L stainless steel, ensuring durability and compliance with safety regulations. Optional features like organic matter washing, heating systems, and alternative screen sizes provide customization to suit various operational needs, while low RPM operation contributes to reduced maintenance costs.

Benefits

  • Minimizes operational downtime with continuous, self-cleaning capabilities.
  • Reduces sludge volume by up to 35%, optimizing disposal costs.
  • Prevents clogs with a shaftless design, ensuring uninterrupted processing.
  • Lowers maintenance expenses through minimal wear components and low RPM.
  • Enhances plant versatility with customizable configurations and add-ons.

General


Applications
Plastics recycling industry wastewater,Industrial wastewater,Sludge treatment,Livestock manure treatment,Pulp,Food processing wastewater,Wastewater treatment,Paper processing,Beverage industry wastewater,Civil wastewater
End products
Clean effluent,Recycled plastic wastewater,Dewatered sludge,Treated beverage wastewater,Recycled water,Fiberless water,Manure solids,Compact solids,Treated food plant wastewater,Treated pulp wastewater
Steps before
Wastewater Collection,Pumping,Pre-Screening,Grit Removal
Steps after
Screenings Compaction,Sludge Treatment,Water Clarification,Biological Treatment
Input ingredients
wastewater,screenings,solids,fibrous materials
Output ingredients
de-watered solids,reduced volume screenings,compacted screenings
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Shaftless Screw Design
No clogging even with fibrous materials
Flow Rate
Up to 1,000 m3/h (590 cfm)
Solids Extraction
Up to 0.33 dm3/s (0.7 cfm)
Volume Reduction
Up to 35%
Material Construction
304L/316L Stainless Steel
Conveyor Screw Material
304/316 Stainless Steel or Special High-Resistance Steel
Structure Type
Self-Supporting Tank
Cleaning Method
Brushes on the Outside Diameter of the Spiral
Discharge Option
Possibility of Discharging into Plastic Bags
Optional Accessories
Washing of Organic Matter,Heating System,Verticaliser

Operating Characteristics


Separation Efficiency
Solids-liquid separation
Shaftless Screw Design
No clogging even with fibrous materials
Volume Reduction Capability
Up to 35%
Screens Cleaning Method
Brushes on spiral
Screening Application Type
Civil and industrial wastewater treatment
Self-Supporting Characteristics
Installed in self-supporting tank
Flow Rate Capacity
Up to 1,000 m³/h
Solids Extraction Capability
Up to 0.33 dm³/s
Screen Type Options
Various mesh types
Automation Level
Low RPM operation
Optional Accessories
Washing,heating system

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Yes
Corrosive resistance (e.g. acids)
Stainless Steel 304L/316L
Density/particle size
Various

Physical Characteristics


Compact footprint
Compact,self-supporting
Shaftless screw design
Yes
Material
304L/316L stainless steel or special high-resistance steel
Flow rate
Up to 1,000 m3/h (590 cfm)
Solids extraction
Up to 0.33 dm3/s (0.7 cfm)
Framework
Sturdy metal framework,completely enclosed
Screen type
Special mesh suitable for waste water
Volume reduction
Up to 35%
