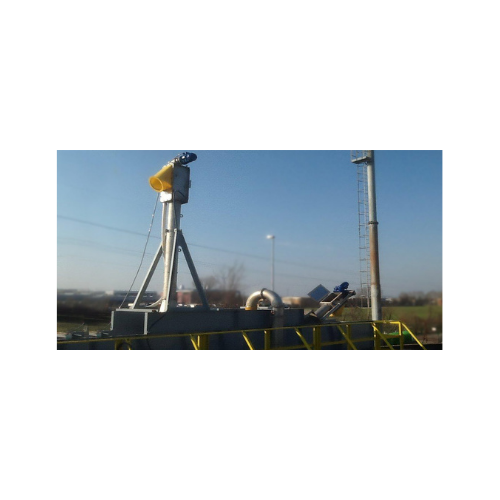

In-channel vertical screw screen for wastewater treatment

Optimize your wastewater management with high-efficiency solids-liquid separation, ideal for compact spaces, ensuring effective dewatering and compacting in continuous or intermittent operations.

Separates and Dewaters Wastewater Solids

The WASTEMASTER GCEV from WAMGROUP is an in-channel vertical screw screen designed for high-efficiency solids-liquid separation in both municipal and industrial wastewater treatment applications. Utilizing a vertically aligned screw, it effectively separates, dewaters, and compacts waste solids, perfect for environments with limited space. It is ideal for applications such as food processing, beverage industry, and sludge treatment facilities, producing end-products like treated effluent water and dewatered sludge cakes.

This equipment operates on a continuous basis, with an option for intermittent operation, providing flexibility across various industrial processes. The modular design allows for easy inspection and maintenance, with components accessible for quick replacement. Constructed from 304L/316L stainless steel, it offers robust corrosion resistance, suitable for harsh environmental conditions.

The WASTEMASTER GCEV integrates seamlessly into production lines, with customizable outlet installation angles and a range of accessories, including alternative voltage and frequency options. Its efficient operation, paired with the energy-saving motor and specialized flight brushes for continuous screen cleaning, ensures optimal performance and reduced operational costs.

Benefits

  • Enhances operational efficiency with continuous and reliable solids-liquid separation.
  • Reduces maintenance time and costs due to its modular and accessible design.
  • Offers versatile installation options to fit unique spatial requirements.
  • Decreases waste volume by up to 40% with efficient dewatering and compaction.
  • Provides robust corrosion resistance to extend equipment longevity in harsh environments.

General


Applications
Vegetable processing waste water,Food processing waste water,Industrial waste water treatment,Abattoirs waste water,Tanneries and dyeing works waste water,Sludge treatment,Beverage industry waste water,Paper processing waste water,Pulp,Plastics recycling industry waste water,Municipal waste water treatment,Livestock breeding waste water,Fruit
End products
Treated effluent water,Dewatered sludge cakes,Paper sludge briquettes,Distillery effluent-treated water,Tannery effluent-treated water,Recyclable plastic pellets,Fruit and vegetable processing by-product water,Abattoir sludge,Textile dye effluent-treated water,Dissolved organics-free water
Steps before
Pump Effluent,Channeling
Steps after
Dewatering,Compacting,Effluent Discharge
Input ingredients
high upstream water flow,municipal wastewater,industrial effluents,solids suspended in water
Output ingredients
solid waste,separated liquids,dewatered effluent
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Installation Angle
90° steps
Screw Material
304 / 316 stainless steel or special high-resistance steel
Screen Mesh Sizes
2,3,5,6 or 10 mm
Solids Volume Reduction
Up to 40%
Solids-Liquid Separation Efficiency
High efficiency
Screen Cleaning Method
Continuous with flight brushes
Effluent Dewatering
Optional

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
Stainless steel 304L / 316L
Cleanability
Continuous cleaning with special brushes
Corrosive resistance (e.g. acids)
Stainless steel 304L / 316L

Physical Characteristics


Machine footprint
Compact design for limited space
Installation position
Vertical in-channel
Screw material
304 / 316 stainless steel
Screen sizes
2,3,5,6,or 10 mm
Modular design
Yes,enabling easy parts replacement
Outlet installation angle
Customizable (90° steps)
Brushes type
Special flight brushes for continuous cleaning
Structural material
304L / 316L stainless steel
Discharge method
Special discharge module

Custom Options


Control panel type
Available
Discharge module heating
Optional
Pipe washing system
Optional
Pipe heating system
Available
Outlet installation angle
Customizable (90° steps)
Horizontal support bracket kit
Available
Alternative screen types
Available
Motor protection degree
Alternative Available
Voltage and frequency
Alternative Available
