Hygienic trough-shaped conveyor belt for vegetable processing

Optimize your vegetable processing line with a hygienic solution that effectively centers and conveys products, even when wet, minimizing spillage and maximizing throughput efficiency.

Centers and Transports Fresh Produce Efficiently

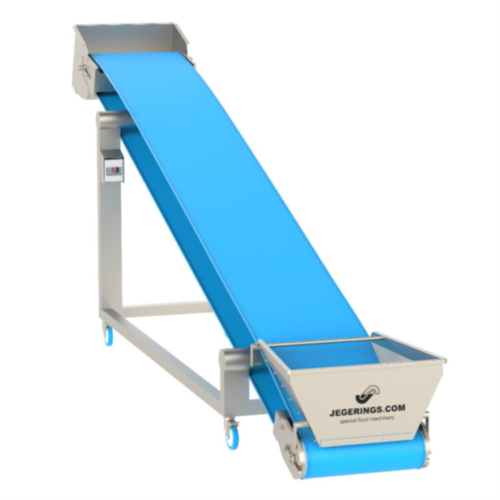

The Hygienic Trough-Shaped Conveyor Belt HCB-400-TS is an engineered solution tailored for vegetable processing companies, developed to meet the rigorous demands of fresh produce handling. Its innovative trough-shaped design ensures products are automatically centered on the belt, minimizing spillage and optimizing transport. This conveyor excels in handling a variety of end-products such as salad mixes, diced vegetables, and sliced cucumbers with precision and efficiency.

The HCB-400-TS seamlessly integrates into production lines, designed to function efficiently with upstream equipment like the BCM-1650/BCM-2450 vegetable cutting machine and downstream options such as the VWM-2500/VWM-3600 vegetable washing machine. With a belt speed approximating 48 m/min, it offers consistent and high-speed conveying that supports continuous operation, crucial for maximizing throughput.

Engineered with a stainless steel drum motor and turning roll, the conveyor promises durability and hygiene. Dismantlable input and output funnels, equipped with a food-grade rubber closure and a scraper, eliminate product waste and maintain cleanliness. Supporting the belt on one side simplifies maintenance and cleaning procedures, enhancing operational efficiency. Additionally, its stainless steel brake castors enhance mobility, allowing easy reconfiguration within production settings.

Benefits

  • Enhances efficiency by automatically centering products, reducing the need for manual adjustments.
  • Minimizes product loss and floor waste with precise input and output funnels.
  • Ensures clean operation with detachable components and integrated scrapers.
  • Facilitates easy cleaning and maintenance, reducing downtime.
  • Supports high-speed, continuous operation, increasing overall throughput.

General


Applications
Small and medium-sized vegetable cutting,Food processing,Vegetable processing,Fresh produce handling
End products
Chopped onions,Processed leafy greens,Salad mixes,Cut bell peppers,Washed spinach,Diced vegetables,Prepared coleslaw,Shredded lettuce,Sliced cucumbers,Chopped carrots
Steps before
Vegetable Cutting,Vegetable Sorting
Steps after
Vegetable Washing,Quality Inspection,Packing
Input ingredients
vegetables,cut vegetables
Output ingredients
centered vegetables,processed vegetables
Market info
The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.

Technical Specifications


Dimensions
3492 x 708 x 1464 mm
Belt Width
400 mm
Electrical Data
3 Ph / 400 V / 0.25 kW / 0.86 A
Belt Speed
Approximately 48 m/min
Weight
140 kg
Automation
N/A

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Stainless steel
Yes
Food-grade material compatibility
Yes
Corrosive resistance
Yes
Cleanability
Easy clean
Biological compatibility
Yes,for food processing

Product type Characteristics


Vegetable processing line compatibility
Compatible

Physical Characteristics


Machine dimensions (L x W x H)
3492 x 708 x 1464 mm
Belt width
400 mm
Weight
140 kg
Conveyor belt shape
Trough-shaped
Transport method
Automatic centering on belt
Material
Stainless steel
Castor type
Stainless steel brake castors

Custom Options


Detachable conveyor belt
Yes
One-sided support of the belt frame
Yes
Input and output funnel
Both can be dismantled
Stainless steel brake castors
Yes
