High temperature chamber furnace for sintering ceramics

Achieve precise thermal consistency for high-temperature applications, ensuring flawless sintering and annealing of advanced materials and components.

Sintering and Debinding of Ceramics and Metals

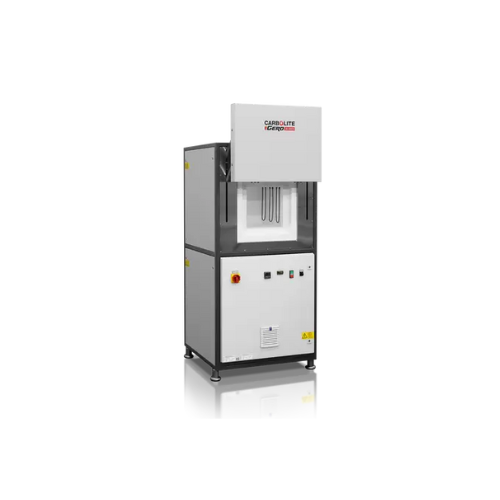

The HTF 17/64 from Carbolite Gero is a high-temperature furnace designed for precision in sintering and debinding processes essential for advanced ceramics and metallic components. Utilizing MoSi2 heating elements, it efficiently attains temperatures up to 1800°C, ensuring uniform heat distribution due to its advanced refractory and low thermal mass insulation. This furnace is suited for producing zirconia dental crowns, tungsten carbide parts, and alumina substrates. With up to 560 liters capacity, it incorporates programmable EPC3016P1 controllers and over-temperature protection for reliable batch processing. An optional debinding package enhances atmosphere control, making it ideal for dexterous ceramic and metal powder applications. Integration is seamless with user-friendly touchscreen controls, Ethernet communication, and compliance with industrial standards. The HTF 17/64 offers an energy-efficient solution, minimizing heat loss and negating the need for water cooling, while customization options allow specific adaptations for varied operational requirements.

Benefits

  • Enhances product quality through precise temperature control and uniform heat distribution.
  • Increases efficiency with programmable automation, reducing manual intervention.
  • Minimizes energy wastage with advanced insulation, eliminating the need for water cooling.
  • Supports flexible production with customizable options for specific ceramic and metal applications.
  • Ensures safe operation and reduces risk with robust over-temperature protection.

General


Applications
Ceramics,Metal powders,Industrial minerals,Sintered components,Oxide ceramics
End products
Ceramic tiles,Sintered ferrite magnets,Zirconia dental crowns,Alumina substrates,Porcelain insulators,High-purity alumina ceramics,Iron powder precision parts,Metal injection molded components,Silicon carbide components,Tungsten carbide parts
Steps before
debinding,ceramic injection moulding (CIM),drying
Steps after
annealing,sintering,sublimation,synthesis,tempering
Input ingredients
ceramics,oxide ceramics,ceramic injection moulding (CIM) components,materials for annealing,materials for debinding,materials for degassing,materials for drying,materials for sintering,materials for sublimation,materials for synthesis,materials for tempering,oxygen and air for combustion
Output ingredients
annealed materials,debonded materials,degassed materials,dried materials,sintered ceramics,sublimated materials,synthesized materials,tempered materials,gaseous by-products combusted into less reactive compounds
Market info
Carbolite Gero is renowned for designing and manufacturing high-temperature laboratory and industrial furnaces and ovens, offering expertise in heat treatment solutions, with a reputation for quality, reliability, and precise thermal processing across various industries.

Technical Specifications


Maximum Operating Temperature
1600°C,1700°C,1800°C
Capacity
27 to 560 litres
Heating Elements
Molybdenum Disilicide (MoSi2)
Temperature Control
Programmable EPC3016P1 controller
Over-temperature Protection
Independent,standard
Atmosphere Modification
Slight,non-sealable
Door Movement
Automatic
Cooling Option
Fast cooling option available
Gas Supply
Manually adjustable flow meter
Insulation
Ceramic fibre plates
Cooling Method
Convection of ambient air
Controller Type
Mini8 touchscreen controller

Operating Characteristics


Automation level
Programmable EPC3016P1 controller
Batch vs. continuous operation
Batch
Cleaning method
Manual
Heat treatment atmosphere
Open air,not sealed
Debinding capability
Available as an option
Cooling option
Natural cooling

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Thermal endurance
Up to 1800°C
Ceramic compatibility
Sintering ceramics
Oxide ceramic compatibility
Sintering oxide ceramics
Oxidation resistance
MoSi2 heating elements
Compatibility with preheated air
Yes
Air atmosphere compatibility
Heat treatment only possible in air

Product type Characteristics


Sintering Capability
Yes,for ceramics

Physical Characteristics


Machine footprint
Compact design
Capacity
27 to 560 litres
Door type
Automatic movement
Heating elements material
Molybdenum disilicide (MoSi2)
Usable space
Customized based on volume capacity
Interior insulation
Ceramic fibre plates
Controller type
Mini8 touchscreen controller
Over-temperature protection
Yes
External construction
Metallic plates,convection cooling

Custom Options


Control panel type
Mini8 touchscreen controller
Debinding package
Inlet for preheated air,gas inlets,afterburner
Cooling option
Fast cooling option to reduce natural cool down time
Automatic door movement
Yes
Programmable controller
EPC3016P1
Data communication
Ethernet communications
Gas supply modification
Hand valve and rotameter
