High-speed overwrapping for bar soaps

Streamline your packaging line by efficiently overwrapping various product configurations, reducing downtime with rapid changeovers, while maintaining high-speed operations up to 100 bundles per minute.

Collates and Overwraps Bar Soaps and Cartoned Products

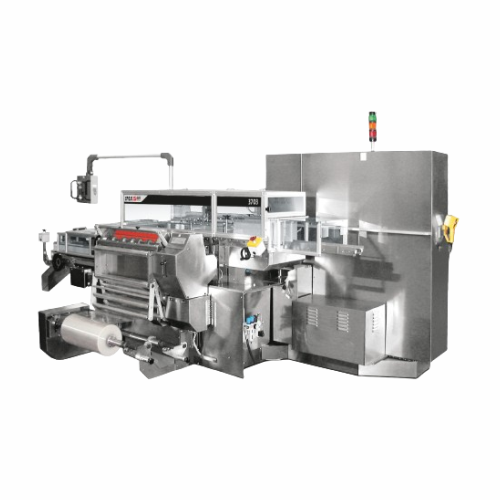

The 3703 Overwrapping Machine from IMA Group specializes in efficiently collating and overwrapping bar soaps and cartoned personal care products. Designed to handle wrapped or cartoned items, it employs a high-speed mechanism capable of producing up to 100 bundles per minute. Servo-driven for precise operation, it arranges products in multiple bundle configurations using cellophane, polypropylene (PP), and heat-sealable films, even at very thin gauges. The lateral belt infeed system ensures product stability at high speeds, while a driven star-wheel expertly turns products on edge. Fast changeover with pre-assembled groups minimizes downtime, enhancing production efficiency. Compatible with a range of films, the machine serves industries such as personal care and home care, processing items like sandalwood soap bars, boxed shampoo bars, and cartoned detergent pods. It supports seamless integration into existing lines, offering configurable options to meet specific operational needs.

Benefits

  • Increases packaging speed up to 100 bundles per minute, enhancing output efficiency.
  • Reduces downtime with quick changeovers using pre-assembled and pre-adjusted groups.
  • Ensures product stability and precision with servo-driven, lateral belts and a driven star-wheel system.
  • Supports diverse packaging needs with compatibility for various films and customizable bundle configurations.
  • Integrates seamlessly into production lines, minimizing transitions and maximizing process flow.

General


Applications
Home care products,Personal care products,Cartoned products,Bar soaps
End products
Sandalwood soap bars,Liquid hand soap bottles,Cartoned detergent pods,Carton-packed moisturizer bottles,Dishwashing liquid bottles,Boxed shampoo bars,Lavender-scented soap bars
Steps before
Filling and capping,Product handling,Cartoning
Steps after
Packing,Palletizing,Labelling
Input ingredients
wrapped bar soaps,cartoned bar soaps,cellophane,PP film,heat-sealable film,reel-fed film
Output ingredients
overwrapped bundles,bundles in one row,bundles in two rows,bundles in three rows
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Max. Speed
Up to 100 cycles/min
Product Dimensions (Min)
60 x 23 x 60 mm
Product Dimensions (Max)
260 x 100 x 260 mm
Automation
Servo driven
Film Type
Cellophane,PP,all reel-fed heat-sealable film types
Bundle Configuration
One,two or three rows on a single layer
Changeover
Replacement of pre-assembled and pre-adjusted groups
Lubrication
Oil forced circulation by motor-driven pump

Operating Characteristics


Changeover time
Fast and easy
Automation level
Servo-driven
Batch vs. continuous operation
Continuous

Material Compatibility


Heat-sealable film types
Cellophane,PP,Reel-fed
Thin film compatibility
Yes
Film thickness
Very thin

Physical Characteristics


Machine footprint
Specific dimensions not provided
Product dimensions
Min. 60x23x60 mm,Max. 260x100x260 mm
Film feeding option
Right hand or left hand
Discharge method
Single layer bundle configuration
Infeed method
Lateral belts and driven star-wheel
Bundle configuration
One,two,or three rows
Film types
Cellophane,PP,heat-sealable,thin films

Custom Options


Film feeding direction
Right hand or left hand
Servo driven movements
Yes
Lubrication System
Oil forced circulation by motor-driven pump with safety pressure switch
Optional groups for specific functions
Available
Changeover system
Pre-assembled and pre-adjusted groups
