High-speed continuous motion cartoner

Streamline your packaging line with precise cartoning operations, ensuring secure and efficient product handling for high-speed production demands.

Performs High-Speed Cartoning and Packaging

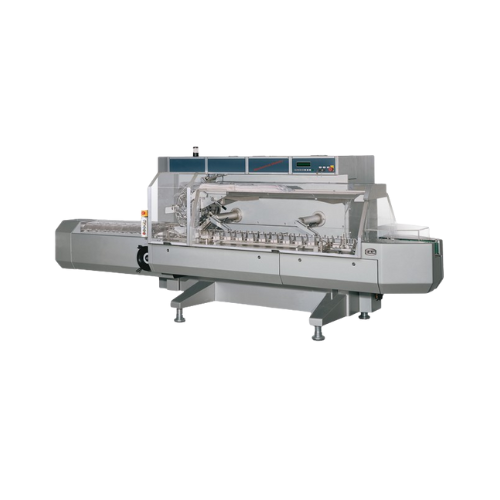

The HV High-Speed Continuous Motion Horizontal Cartoner from Tecnicam is engineered for seamless integration into pharmaceutical, cosmetic, and food production lines. This cartoning solution excels with its continuous motion 5-station turret, ensuring precise carton erection and product loading. Catering to an array of products from blister packs to booklet packaging, the HV offers versatility with its wide range of product feeders. Its patented carton closure system simplifies format change without specialized technicians, enhancing efficiency and consistency. Equipped with the Mechanical Memory® system, it allows rapid size change-over, reducing downtime. Designed with a cantilever structure, it ensures easy access for cleaning and compliance with GMP norms, while the sturdy construction supports diverse board grammages, guaranteeing reliable operation.

Benefits

  • Minimizes downtime with swift, tool-free size change-overs under 10 minutes.
  • Enhances packaging precision, accommodating irregular product shapes and sizes.
  • Ensures consistent packaging quality with easily adjustable carton closure mechanisms.
  • Improves operational efficiency with full accessibility for maintenance and cleaning.
  • Complies with GMP norms, meeting industry standards for hygiene and safety.

General


Applications
Pharmaceuticals,Cosmetics,Leaflets,Booklets,Food industries
End products
Leaflet inserts,Confectionery boxes,Tube creams,Booklet packaging,Blister packs for tablets
Steps before
Product Feeding,Carton Magazine Loading
Steps after
Size Change-Over,Carton Closure,Packing
Input ingredients
cartons,products,leaflets,booklets,packaging material
Output ingredients
packed products,packaged cartons
Market info
CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.

Technical Specifications


Machine Type
High-speed continuous motion horizontal cartoner
Accessibility
Linear and accessible design
Carton Erection System
Continuous motion 5-station turret
Mechanical Transmission
Cantilever structure
Carton Pre-breaking
Total and progressive
Carton Opening Method
Two suction-cup arms
Product Transport
Cam profile buckets
Pusher Upper Blades
With differentiated stroke
Product Feeder Range
Suited for pharmaceutical,cosmetic,food industries
Carton Closure System
New patented system for format change
Size Change-over
Less than 10 minutes

Operating Characteristics


Working mechanism
Cam-operated continuous motion
Integrated steps
Carton erection,filling,closure
Changeover time
Less than 10 minutes
Automation level
Mechanical Memory® system for size change-over
Energy efficiency
Continuous motion saves energy
Material handling
Irregular shape/dimensions capable
Compliance with norms
GMP norms

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Industries Served
Pharmaceutical,Cosmetic,Food

Physical Characteristics


Operator side linearity
Yes
Cantilever structure
Yes
Carton magazine loading
Large capacity
Carton erection system
Continuous motion 5-station turret
Product transport buckets
Cam profile movement
Pusher upper blades
Differentiated stroke
Machine accessibility
Full
Carton pre-breaking
Progressive opening
Suction-cup arms
Two,for positive opening
Product feeders
Wide range available
Carton closure system
Newly patented

Custom Options


Changes without a technician
Mechanical Memory® system
