High-capacity food processor slicer
Enhance your production line with precise cutting capabilities and reduced cleaning times, ensuring consistent quality for fresh-cut salads, vegetables, and fruits.
Processes and Slices Fresh-Cut Produce Efficiently

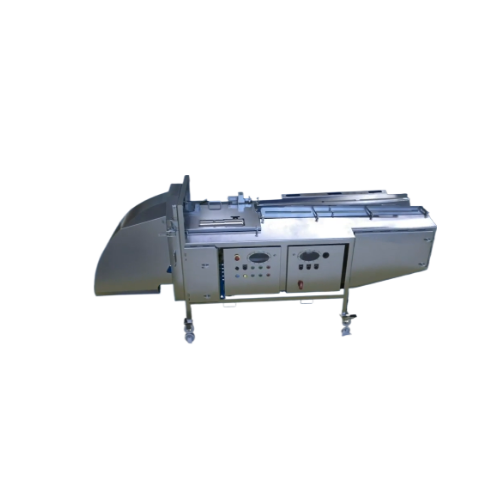

The TranSlicer® 2520 Cutter from Urschel Laboratories is a versatile solution designed to streamline your food processing operations. Specializing in precision slicing, dicing, and shredding, this machine excels in transforming fresh-cut salads, leafy vegetables, and fruits into uniform products. Featuring a 25-inch diameter interchangeable stainless steel cutting wheel, it accommodates various produce sizes, continuously processes compressible items up to 8 inches in diameter, and firm products up to 6-3/4 inches. Utilized in food processing, salad production, and vegetable and fruit processing, it integrates seamlessly into your production line with its variable frequency drive for flexible operation speeds.
This cutter emphasizes sanitation, with a design that minimizes cleaning times by promoting water drainage and incorporating stand-offs to reduce overlapping joints. The separate feed and mechanical zones further enhance hygiene standards. The TranSlicer® 2520 Cutter uses IP69K-rated IEC electrical components, ensuring durability against high-pressure and high-temperature washdowns. Available in stainless steel, it offers corrosion resistance suitable for food-grade applications. Optional configurations include different feed belt setups to accommodate specific processing needs. Combining these attributes, the TranSlicer® 2520 Cutter is an indispensable asset for high-capacity food processors seeking efficiency and reliability.
Benefits
- Increases processing efficiency with high-capacity continuous operation.
- Minimizes cleaning and maintenance time with sanitation-focused design.
- Adapts to varied production needs with configurable feed belt options.
- Enhances product quality with precision slicing capabilities for consistent output.
- Ensures durability and safety with IP69K-rated components for harsh washdown environments.
- Applications
- Cucumbers,Fresh-cut salads,Fruits,Celery,Leek,Leafy vegetables,Carrots
- End products
- Leek rings for soups,Celery sticks,Coleslaw mix with red cabbage,Chopped flat-leaf parsley garnish,Cucumber slices for salads,Romaine lettuce salad mix,Carrot sticks,Fruit salad with diced papaya,Iceberg lettuce sandwich shreds
- Steps before
- Washing,Sorting,Trimming,Prepping
- Steps after
- Packaging,Quality Inspection,Refrigeration,Distribution
- Input ingredients
- fresh-cut salads,leafy vegetables,celery,leek,carrots,cucumbers,fruits
- Output ingredients
- 1 x 1-1/2 inch square romaine lettuce,1/8 inch slice cucumber,1/8 inch slice leek,3/8 inch strips Swiss chard and spinach,1/4 inch slice carrot,3 inch stick or 1/2 inch slice celery,1/8 inch shred or 1-3/8 x 1-1/2 inch square iceberg lettuce,3/4 inch dice papaya,1/8 inch shred red cabbage,1/2 inch chop flat-leaf parsley,1 inch chop romaine lettuce
- Market info
- Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.
- Length
- 159.34" (4047 mm)
- Width
- 44.49" (1130 mm)
- Height
- 65.17" (1655 mm)
- Cutting Wheel Motor Power
- 3 HP (2.2 kW)
- Feed Belt Motor Power
- 1 HP (.75 kW)
- Net Weight
- 2,250 lb (1020 kg)
- Diameter of Cutting Wheels
- 25" (635 mm)
- Maximum Infeed Diameter for Compressible Products
- 8" (203 mm)
- Maximum Infeed Diameter for Firm Products
- 6-3/4" (171 mm)
- Variable Frequency Drive (VFD)
- Yes
- IP Rating
- IP69K
- Types of Cut
- Slices,Shreds,Julienne,Dice
- Slicing Thickness Range
- 1/32 - 3" (.8 - 76.2 mm)
- Julienne Cut Size Range
- 3/8 x 3/8" to 3 x 2" (9.5 x 9.5 mm to 76.2 x 50.8 mm)
- Shred Length Range
- 3/8" (9.5 mm) to 3" (76.2 mm)
- Shred Thickness Range
- 1/32 - 9/32" (.8 - 7.1 mm)
- Working mechanism
- Continuous operation
- Automation level
- HMI available / VFD-controlled
- Changeover time
- Quick,due to interchangeable cutting wheels
- CIP/SIP
- Designed for high sanitation,quick washdown
- Cleaning method
- Manual,with reduced cleaning times
- Batch vs. continuous operation
- Continuous
- Energy efficiency
- Optimized for high capacity
- Feed belt configurations
- Three options available
- Sanitation design
- Next generation,all surfaces promote drainage
- Water drainage design
- Engineered to promote drainage
- Inspection facilitation
- Improved via standoffs
- Cleanability
- Next generation sanitation design
- Corrosive resistance
- Stainless steel construction
- Biological compatibility
- Commercial food processing
- Abrasion resistance
- Stainless steel cutting wheels
- Machine footprint (Length x Width x Height)
- 159.34" x 44.49" x 65.17" (4047 mm x 1130 mm x 1655 mm)
- Machine footprint (Short Frame)
- 120.81" x 46.75" x 65.17" (3069 mm x 1187 mm x 1655 mm)
- Net Weight
- 2,250 lb (1020 kg)
- Net Weight (Short Frame)
- 1,785 lb (810 kg)
- Cutting Wheel Diameter
- 25" (635 mm)
- Discharge Method
- Interchangeable stainless steel cutting wheels
- Feed Method
- Three feed belt configurations (primary and secondary belts,full-length primary belts,compact version with shorter primary belts)
- Control panel type
- HMI option available
