High-capacity cheese dicer with sanitary design

For high-volume cheese producers, achieving consistent cube cuts without pre-cutting can increase efficiency and reduce labor costs, thanks to a robust dicer designed for continuous, high-capacity operation.

Efficiently Dices and Cuts Cheese and Proteins

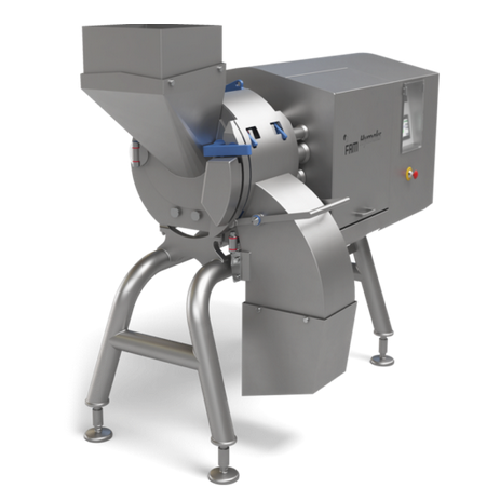

The Hymaks from FAM is a robust, high-capacity cheese dicer engineered for seamless integration into continuous production lines. This machine excels by eliminating the need for pre-cutting with its large drum capacity, accommodating products up to 220 mm in length and 210 mm in diameter. Equipped with a powerful 20.5 kW motor system, it features synchronized 5.5 kW motors for cutting spindles and a 15 kW motor for the impeller wheel, optimizing cutting precision and throughput. The USDA Dairy Equipment Acceptance certification underscores its commitment to sanitary design. Ideal for dairy, meat, poultry, and plant-based protein processing, it supports various applications, including cheddar cubes, mozzarella sticks, and vegan cheese alternatives. Built for continuous, high-volume operations, the Hymaks enhances efficiency with features like streamlined cleaning and maintenance, making it an indispensable asset for industrial food processing.

Benefits

  • Enhances production efficiency by eliminating the need for pre-cutting.
  • Maximizes cutting precision with high-capacity motor synchronization.
  • Ensures superior sanitary standards with USDA certification.
  • Accommodates diverse product shapes, supporting versatile end-product lines.
  • Facilitates easy integration into continuous, high-volume processing environments.

General


Applications
Seafood,Other potato products,Fresh vegetables,Frozen vegetables,Fruits,Cheese,Chips,Fish,Crisps,Poultry,Red meat,Alternative protein,French fries
End products
Cheddar cubes,Mozzarella sticks,Blue cheese pieces,Plant-based cheese cubes,Processed cheese chunks,Tempeh strips,Vegan mozzarella slices,Jackfruit shreds,Provolone strips,Brie segments,Dairy-free cheese alternatives,Swiss cheese cubes,Feta crumbles,Parmesan shreds,Tofu cubes,Edam dice,Gouda slices
Steps before
Pre-cutting,Product Loading
Steps after
Quality Control,Packaging,Storage
Input ingredients
cheese,large cheese blocks,cheese logs
Output ingredients
diced cheese,cheese sticks,strip-cut cheese
Market info
FAM STUMABO is known for expertise in manufacturing precision cutting equipment for the food industry, specializing in industrial cutting and slicing solutions that enhance efficiency and product quality, with a strong reputation for innovation and reliability.

Technical Specifications


Cutting Motor Power
2 x 5.5 kW (7.5 HP)
Impeller Wheel Power
15 kW (20 HP)
Total Power Supply
20.5 kW (27.5 HP)
Product Length Capacity
Up to 220 mm
Product Diameter Capacity
Up to 210 mm
Operation
Continuous,high-capacity output

Operating Characteristics


Working mechanism
High-speed drum dicing
Batch vs. continuous operation
Continuous
Power capacity
20.5 kW
Sanitary design compliance
USDA Dairy Equipment Acceptance
Motor specification
Two synchronised 5.5 kW motors

Material Compatibility


Cleanability
USDA Dairy Equipment Accepted
Density/particle size
Cheese pieces up to 210 mm diameter and 220 mm length


Sanitary Design
Uncompromising

Physical Characteristics


Drum size
Accepts products up to 220 mm in length and 210 mm in diameter
Material feed method
Large drum eliminates need for pre-cutting

Custom Options


Control panel type
HMI
Integration possibilities
Process line compatibility
