Heavy duty checkweigher for large packages
In various industries, ensuring the accuracy of package weights without interrupting the production flow is critical. High throughput lines require a reliable system that can weigh large packages in motion while maintaining precision and efficiency.
Accurate in-line weighing of large packages

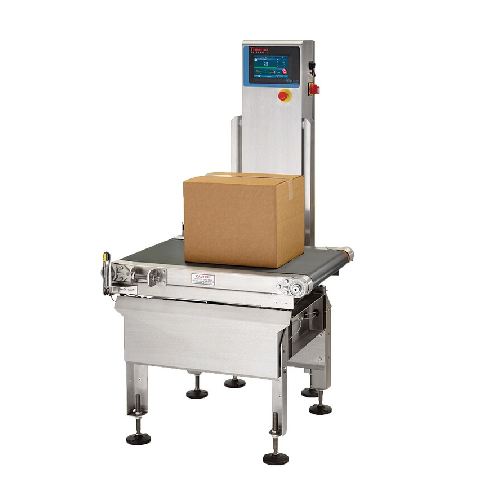

The Versa Flex Frame 44HD Checkweigher from Thermo Fisher Scientific offers dependable and accurate in-line weighing for large packages without the need to stop the conveyor or recalibrate. It utilizes a stainless steel frame and supports package weights up to 110 lbs for the standard version and up to 250 lbs for the extended size (XD) versions. The system includes an FDA-approved food-grade belt, making it suitable for the food industry, particularly for packaged food in bags, cases, or boxes. Other applicable industries include pharmaceuticals, warehousing, and personal care products. The checkweigher operates at line rates of up to 100 packages per minute and speed ranges from 33 to 560 feet per minute. With a detector scan rate of up to 100 ppm and a four-strain gauge load cell weight sensing system, the checkweigher ensures high precision. The unit is rated for washdown with an IP65 rating, making it easy to clean. Operating efficiently within a temperature range of 5°C to 40°C, it integrates seamlessly with the Thermo Scientific Versa Flex Controller, making it easy to operate.
Benefits
- Continuous in-motion weighing without the need to stop the line
- Handles large and heavy packages up to 250 lbs
- Food-grade and washdown compliant for various industries
- High precision with four-strain gauge load cells
- User-friendly operation with Versa Flex Controller
