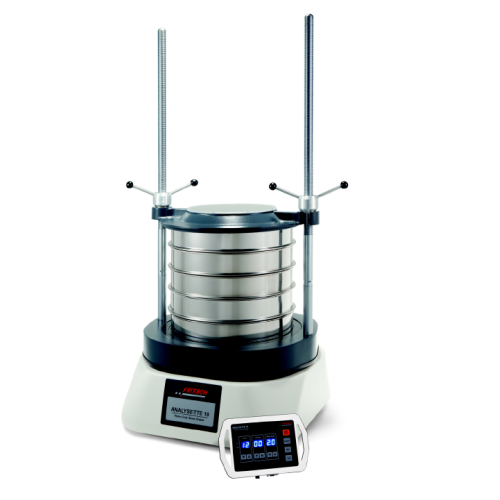

Heavy duty analytical sieve shaker for coarse-grained materials
Need precise particle size distribution for large mineral samples? This robust sieve shaker efficiently separates and fractions materials like metal powders and pigments, ensuring quick, reproducible results without the need for manual intervention.
Efficiently Sieves and Analyzes Large Material Batches
The ANALYSETTE 18 from FRITSCH is a robust Heavy Duty Analytical Sieve Shaker designed to meet the demands of industries such as mining, chemical, and materials science. Utilizing a unique three-dimensional sieving action, it optimally separates materials by particle size, effectively processing up to 15 kg of samples between 20 µm and 125 mm. This ensures rapid, reproducible results without manual interference. Designed for both dry and wet sieving, it integrates seamlessly into pilot line and batch operations, making it ideal for particle analysis of coarse-grained materials, powdered substances, and suspensions. Equipped with dual unbalanced motors, the system guarantees precise and efficient vibrations, optimizing separation efficiency. The machine’s durable build suits heavy-duty conditions, while the AUTOSIEVE software provides automatic sieve evaluation aligned with ISO 9001 standards. With options for various sieve diameters and a conversion kit for wet sieving, the ANALYSETTE 18 is adaptable to diverse requirements, enhancing operational flexibility and efficiency in quality control and research.
Benefits
- Enhances productivity by efficiently processing up to 15 kg of material.
- Achieves fast and accurate sieving due to its innovative three-dimensional motion.
- Ensures consistent quality with reproducible particle size analysis.
- Adapts to various materials and processes with dry and wet sieving capabilities.
- Simplifies quality control with automated evaluation compliant with ISO 9001 standards.
- Applications
- Metal powders,Powdered substances,Minerals,Suspensions,Coarse-grained materials,Pigments
- End products
- Industrial coatings,Magnesium powder,Bauxite,Cosmetic fillers,Copper concentrate,Gold concentrate,Granite chips,Zinc oxide,Lithium ores,Alumina,Talc powder,Lead concentrate,Titanium dioxide,Ink pigments,Ceramic glazes,Slate granules,Plastic colorants,Marble powder,Bentonite clay,Paint pigments,Cobalt carbonate,Dye powders,Iron ore,Zinc dust,Graphite
- Steps before
- Sample Preparation,Material Loading,Particle Size Reduction,Grinding
- Steps after
- Particle Size Analysis,Results Documentation,Fractioning,Data Evaluation
- Input ingredients
- coarse-grained materials,material up to 15 kg,solids,suspensions
- Output ingredients
- particle size distribution,separated fractions,analysis results,sieved materials
- Market info
- Fritsch is renowned for manufacturing high-quality, engineered-to-order laboratory instruments for sample preparation and particle sizing in research and industrial laboratories, with a strong reputation for precision, innovation, and reliability.
- Sieving Capacity
- Up to 15 kg
- Sieve Size Range
- 20 µm - 125 mm
- Sieving Action
- Three-dimensional
- Sieve Dia. Compatibility
- 300,315,350,400,450 mm / 12" - 18"
- Sieve Stack Height
- Up to 12 test sieves (65 mm each)
- Software Integration
- AUTOSIEVE
- Motor Type
- Two maintenance-free unbalanced motors
- Amplitude Control
- Automatic with continuous acceleration measurement
- Working mechanism
- Three-dimensional sieving action
- Input capacity
- Up to 15 kg
- Particle size range
- 20 μm - 125 mm
- Automation level
- Remote control operation
- Amplitude control
- Automatic with continuous acceleration measurement
- Material handling
- Dry and wet sieving capabilities
- Sample processing
- Automatic sieve evaluation with software
- Motors
- Two unbalanced motors
- Abrasion resistance
- Yes
- Cleanability
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 20–125 mm
- Sieving Type
- Dry and wet sieving
- Particle Size Analysis
- Yes
- Machine Footprint
- Not specified
- Sieve Diameter
- 300 mm,315 mm,350 mm,400 mm,450 mm,12" - 18" (adapter required for 200 mm,8″ dia.)
- Maximum Input Material
- 15 kg
- Measurement Range
- 20 µm - 125 mm
- Discharge Method
- Not specified
- Control panel type
- Remote control via separate operating unit
- Integration possibilities
- Automatic sieve evaluation with software AUTOSIEVE
- Amplitude control
- Automatic with continuous acceleration measurement
