Heating and cooling tunnel for beverages
Achieve consistent temperature regulation for beverages, ensuring optimal product quality by seamlessly transitioning between heating and cooling processes on your production line.

Regulates Temperature for Packaged Beverages

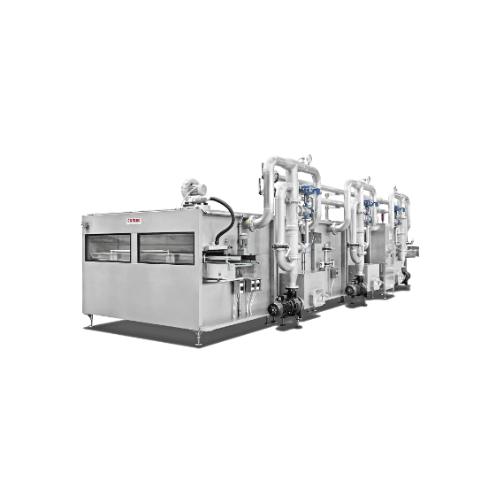

The Heating and Cooling Tunnel from Comac is designed to optimize the temperature regulation process for packaged beverages, accommodating everything from bottles to cans. This system efficiently uses a multi-section tunnel to gradually adjust temperatures, ensuring product integrity throughout processing. Ideal for applications across the beverage sector, it is suited for products like Pilsner beer, Chardonnay wine, and citrus energy drinks. Capable of continuous, automatic operation, the tunnel integrates seamlessly into existing lines and supports diverse beverage formats. Its design minimizes energy consumption while allowing easy access for cleaning and maintenance. Constructed with corrosion-resistant materials, it meets industry standards for hygiene and durability.
Benefits
- Ensures consistent product quality by maintaining precise temperature control.
- Decreases operational costs through energy-efficient design.
- Simplifies maintenance with easy-access doors and removable filters.
- Enhances production line integration with automated, continuous workflows.
- Supports diverse beverage types, increasing production flexibility.
- Applications
- Wine,Energy drinks,Ready-to-drink,Soft drinks,Beer,Hard seltzers
- End products
- Canned iced coffee,Chardonnay wine,Citrus energy drink,Pilsner beer,Mango hard seltzer,Cola soft drink
- Steps before
- Filling,Packaging
- Steps after
- Cooling,Bringing to Room Temperature,Packing
- Input ingredients
- cold packaged products,hot packaged products
- Output ingredients
- products at room temperature
- Market info
- Co.Mac is recognized for its expertise in designing and manufacturing customized bottling and packaging solutions for the beverage industry, delivering innovative and high-quality machinery that caters to specific client needs in the global market.
- Heating tunnel area
- 10–25 m²
- Cooling tunnel area
- 36 m²
- Cleaning method
- Double panel filters,extractable
- Working mechanism
- Heating and cooling
- Integrated steps
- Temperature adjustment
- CIP/SIP
- Easy cleaning and maintenance
- Batch vs. continuous operation
- Inline Continuous
- Cleaning method
- Accessible with doors and extractable filters
- Heat sensitivity
- Applicable for Cooling Tunnels
- Foaming tendency
- Relevant for Soft Drinks and Beer
- Container type
- Cans,Glass Bottles
- Feed/Discharge method
- Automatic
- Doors for maintenance
- Doors on one side
- Filter type
- Double panel,extractable
- Custom sizing
- 10 mq / 25 mq / 36 mq
- Cleaning accessibility
- Doors on one side
- Filter type
- Double panel filters
- Filter accessibility
- Extractable from pump side
