Grit classifier for wastewater treatment

Optimize your wastewater treatment process with a grit classifier that efficiently separates and dewaters gritty materials, ensuring clean, treated effluent and reducing sludge volume.

Separates and Conveys Grit from Wastewater

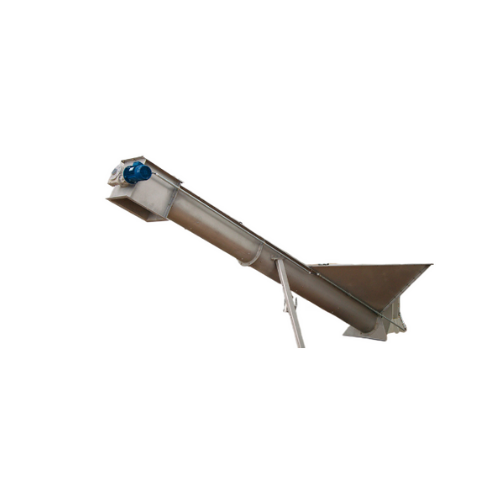

The GRITSEP DS Grit Classifier from WAMGROUP is designed to efficiently separate and convey grit and sand particles from wastewater streams. Featuring an inclined screw conveyor within a sedimentation hopper, it operates with low screw rotation speed to enhance sedimentation and ensure smooth transport of de-watered grit and sand. A primary choice for industries like municipal wastewater treatment and food processing, it transforms the separation process through its shaftless screw design, reducing wear and extending equipment lifespan. With capacities ranging from 5 to 36 m³/h of liquid throughput, it facilitates seamless integration into existing setups. Manufactured from stainless steel with a low-friction, wear-resistant liner, it’s built to withstand corrosive environments. Options for customization, including alternative voltage and control panels, ensure the GRITSEP DS caters to diverse operational needs, minimizing maintenance and maximizing efficiency.

Benefits

  • Minimizes maintenance costs due to absence of bearings and low-speed operation.
  • Enhances operational lifespan with wear-resistant stainless steel construction.
  • Improves sedimentation efficiency, ensuring cleaner water output.
  • Customizable configurations to fit unique processing needs and site conditions.
  • Eco-friendly design supports sustainable wastewater management practices.

General


Applications
Sludge treatment,Fruit processing,Grit treatment,Wastewater treatment,Paper processing,Tanneries,Beverage industry,Starch processing,Catering wastewater,Food processing,Pulp processing,Plastics recycling,Municipal wastewater treatment,Abattoirs,Dyeing works,Vegetable processing,Industrial wastewater,By-products processing,Environmental technology
End products
Treated effluent,Tanned leather,Recycled water,Organic fertilizer,Vegetable slush,Recycled plastics,Recycled fiber,Dye-treated water,Starch slurry,Pulp slurry,Clean water,Paper pulp,Sludge compost,Processed by-products,De-watered sand,Fruit puree,De-watered grit,Clarified water,Treated wastewater
Steps before
Wastewater Collection,Sedimentation,Initial Screening
Steps after
Clean Water Discharge,Grit Disposal,Further Wastewater Treatment
Input ingredients
waste water,grit,sand,solid particles,water
Output ingredients
de-watered grit,separated sand,clean water
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Liquid throughput
5 ~ 36 m3/h (3 ~ 21 cfm)
Solids throughput
0.06 ~ 0.36 dm3/s (0.1 ~ 0.7 cfm)
Screw rotation speed
Low
Material
Stainless steel
Shaft type
Shaftless screw
Installation cost
Low
Maintenance cost
Low
Wear resistance
High due to carbon/stainless steel
Environmental impact
Eco-friendly operation

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Continuous
Low installation and maintenance costs
Yes
Eco-friendly operation
Yes
Cleaning method
Manual
Energy efficiency
Low

Material Compatibility


Abrasion resistance
Yes
Cleanability
Good
Corrosive resistance (e.g. acids)
Stainless Steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Use in municipal wastewater
Suitable

Physical Characteristics


Hopper shape and size
Inclined with large volume loading
Feed method
Water inlet spout
Discharge method
Conveyor screw
Trough material
Stainless steel with bolted wear bars
Screw type
Shaftless heavy-duty spiral
Trough cover and outlet
Trough cover with solid particle outlet spout

Custom Options


Vertical outlet
Optional
Support stand
Optional
Trough liner
Replaceable bolted wear bars
Drive guard
Optional
