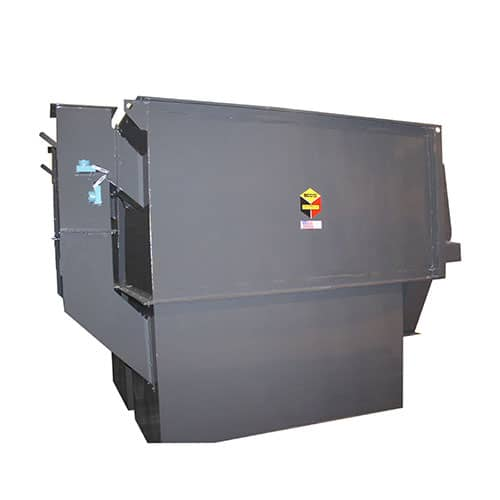

Grain cleaning reel scalper

Maximize throughput by efficiently removing oversized particles from your feed inputs with a robust reel scalper, essential for maintaining high-quality outputs in continuous production lines.

Screens and Cleans Grain and Feed Efficiently

The Scott Equipment Reel Scalper is a robust solution engineered to enhance your grain and feed processing line by efficiently screening and removing oversized materials. Crafted from durable heavy-gauge mild or stainless steel, it is tailored for applications including cornmeal, cattle feed pellets, DDGS, whole wheat flour, and poultry feed mix. The Reel Scalper supports capacities ranging from 10 to 175 tons per hour of ground feed and up to 20,000 bushels per hour of grain. It operates with low horsepower requirements, optimizing energy efficiency. This equipment integrates seamlessly into continuous and manual operations, making it suitable for diverse industries like animal nutrition, ethanol production, and brewing. Available with replaceable screens ranging from 56 ft² to 220 ft², it offers flexibility in processing a variety of product types including solids, granules, and powders. Designed for ease of maintenance, the Reel Scalper features a removable top cover with collection hoppers for easy access and cleaning.

Benefits

  • Enhances product quality by removing oversized materials for cleaner batches.
  • Supports high processing volumes up to 175 tons per hour, increasing throughput.
  • Saves energy with low horsepower requirements, reducing operational costs.
  • Adapts to various product types with customizable screen sizes for flexibility.
  • Facilitates easy maintenance with a removable top cover and collection hoppers.

General


Applications
Animal feed,Wheat,Dried distillers grains,Grain,Corn
End products
Whole wheat flour,Poultry feed mix,Cornmeal,Cattle feed pellets,Ddgs (dried distillers grains with solubles)
Steps before
Grinding,Mixing
Steps after
Mixing,Packing
Input ingredients
grain,corn,animal feed,dried distillers grains,wheat,DDG
Output ingredients
clean finished product,screened product,oversized materials
Market info
Scott Equipment is known for its expertise in custom-designed industrial mixing and processing equipment, catering to diverse industries with a strong reputation for quality, innovation, and customer-focused engineered-to-order solutions.

Technical Specifications


Capacity
10 to 175 tons per hour
Capacity
2,000 to 20,000 bushels per hour
Screen Size
56 ft² to 220 ft²
Horsepower Requirement
1 HP to 7½ HP
Construction Material
Mild or Stainless Steel

Operating Characteristics


Working mechanism
Reel screen
Material screening
Pre-mixer / Post-mixer
Capacity
10 to 175 tons per hour
Grain handling capacity
2,000 to 20,000 bushels per hour
Horsepower requirement
1 HP to 7½ HP
Replacement screens
56 ft² to 220 ft²
Batch vs. inline flow
Inline continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Adaptability to Feed Types
Grain / Corn / Animal Feed / DDG
Application Areas
Feed Manufacturing / Ethanol Production / Brewing

Physical Characteristics


Construction Material
Mild or Stainless Steel
Screen Type
Hardened wire,replaceable
Top Cover
Removable with collection hoppers
Footprint
Compact,depending on capacity

Custom Options


Screen mesh size
Various sizes
